1.7mm Heavy-Duty Industrial Fire Blanket

High Temperature Resistance and Abrasion Resistance, Providing Durable Protection for Harsh Welding and Casting Environments

Woven with high-strength fiberglass yarn, it resists sparks and molten slag corrosion, resulting in a longer service life.

Specifically designed for high-temperature operations, effectively preventing fire hazards and protecting equipment and personnel safety.

RONDY 1.7mm Heavy-Duty Fiberglass Fire Blanket is an industrial-grade protective solution designed for the most demanding thermal and spark-intensive environments. With an exceptional thickness of 1.7mm, this blanket provides superior insulation, spatter resistance, and durability, making it an indispensable safety tool for welding, grinding, and foundry work.

Crafted from tightly woven fiberglass fabric and often featuring a surface treatment, this blanket is engineered to withstand continuous exposure to high temperatures while protecting personnel, equipment, and workspaces from sparks, slag, and radiant heat.

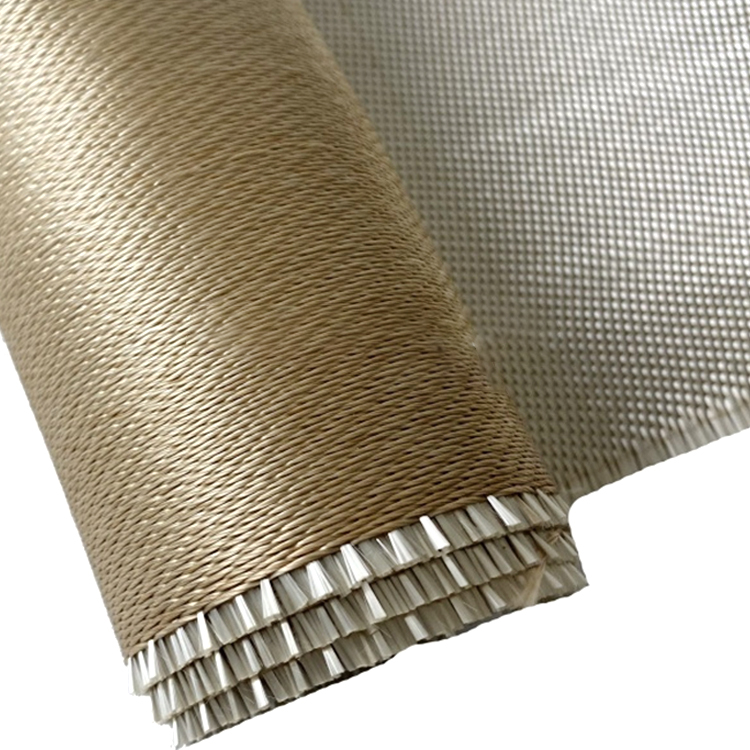

1.7MM FIBERGLASS CLOTH FIRE BLANKET ROLL.jpgFIBERGLASS CLOTH FIRE BLANKET ROLL.jpg

  • Exceptional Thermal Protection: With a continuous exposure rating of up to 1000°F (538°C) and the ability to withstand brief spikes up to 1800°F (982°C) , this blanket effectively contains heat and prevents damage to surrounding areas.

  • Superior Thickness & Durability: The 1.7mm thickness provides a robust barrier against welding spatter, molten metal splashes, and abrasion. This heavy-duty construction significantly extends the product's service life compared to standard thinner blankets.

  • Flame Retardant & Non-Combustible: Made from inherently fire-resistant fiberglass, the blanket will not burn, melt, or contribute to the spread of flames, ensuring a safer work environment.

  • Flexible & Easy to Handle: Despite its ruggedness, the blanket remains flexible, allowing it to be easily draped over machinery, used as a curtain, or wrapped around pipes and complex shapes.

  • Versatile Applications: Ideal for a wide range of tasks including arc welding (MIG, TIG, Stick), thermal spraying, grinding screens, furnace maintenance, and as a protective cover for flammable materials.

  • Optional Surface Coating: Many of our 1.7mm blankets are available with a graphite or vermiculite coating. This coating enhances spatter resistance, causing molten metal to bead up and roll off, rather than stick to the fabric.

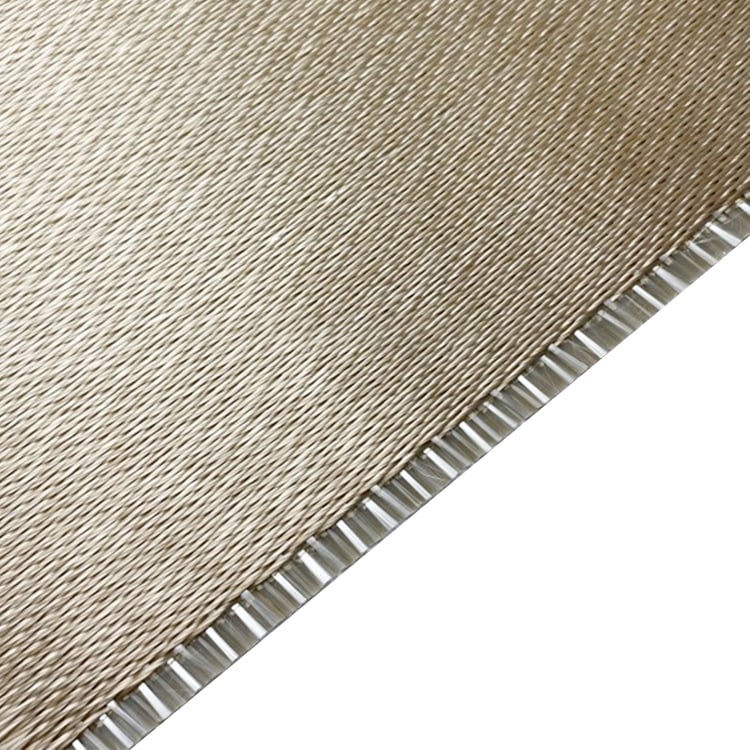

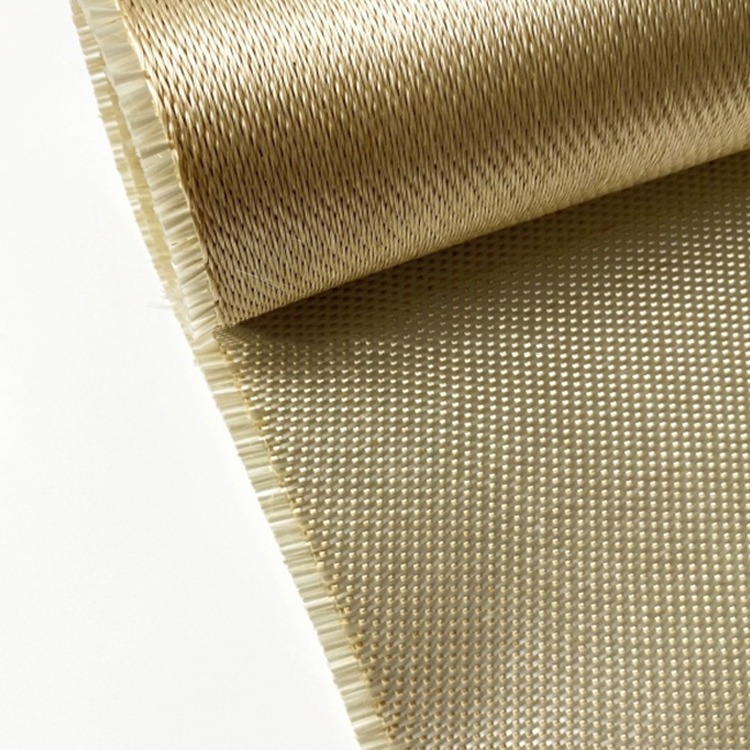

GOLDEN FIBERGLASS WELDING BLANKET FIRE BLANKET ROLL.jpg1.7MM Fiberglass fire blanket roll (2).jpg

Technical Data Sheet

1.7mm Fiberglass Fire Blanket Roll

1

CODE

3788

2

MATERIAL

100% E glass Fiber

2

WEAVE

SATTIN

3

YARN

(tex)

WARP

WEFT

33tex x 16

33tex x 16

4

SIZE

1m X50M

5

THREAD COUNT

WARP

WEFT

18/cm

9/cm

6

CLOTH THICKNESS

1.7mm (+0.2mm)

7

CLOTH WEIGHT

1700g/m2±20

8

COAT STYLE

HEAT-TREATED

9

COAT WEIGHT

NON

10

TOTAL WEIGHT

1700g/m2(+50g)

11

SERVICE TEMPERATURE

Continuous Service Temp. Up to 1000°F (538°C)
Intermittent Service Temp. Up to 1800°F (982°C)

Standard size: normal 100cm wide , length 50 meter , Common sizes include 6'x8', 8'x8', 10'x10', etc customized

Packing : inner packing : plstic bag

Outer packing : carton on pallet

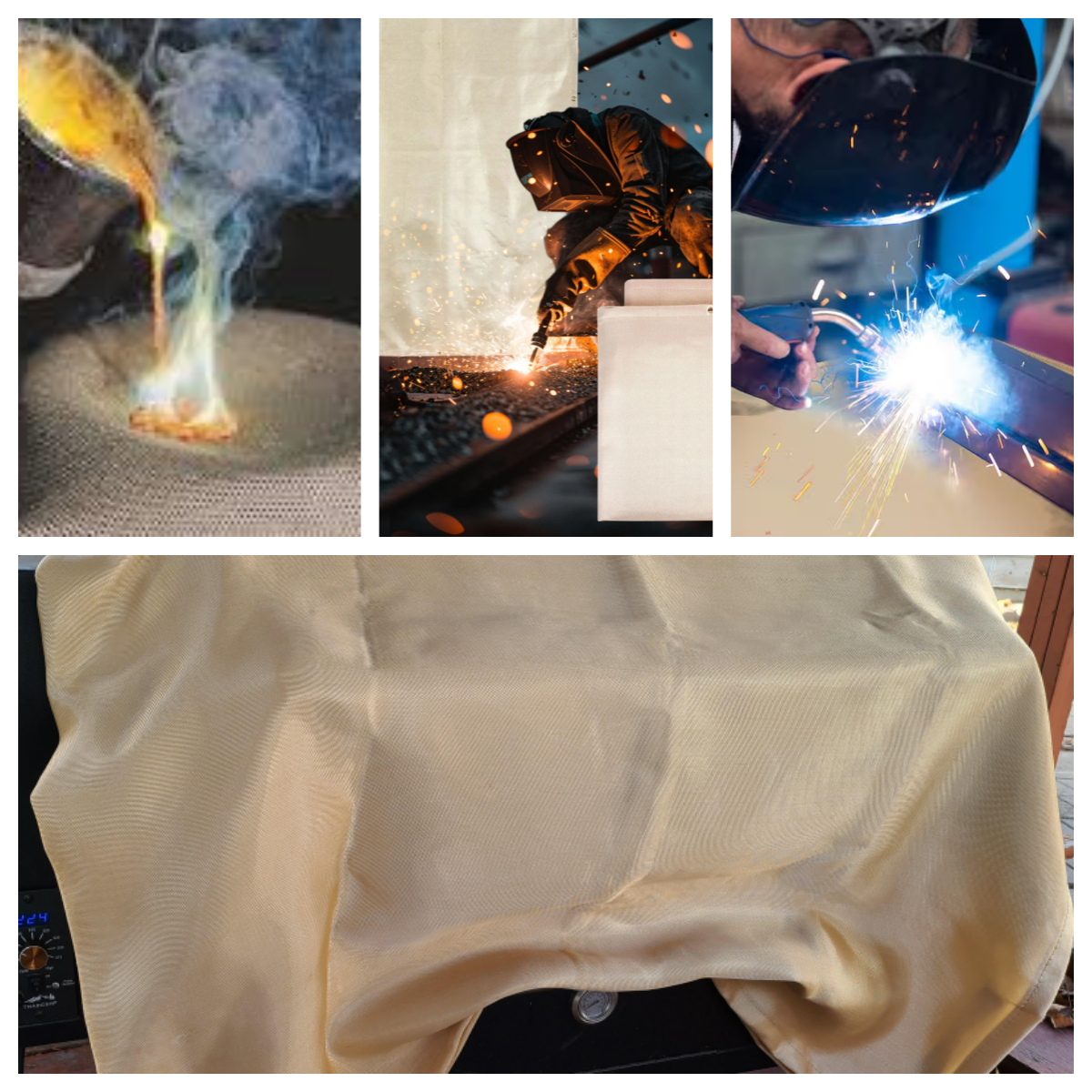

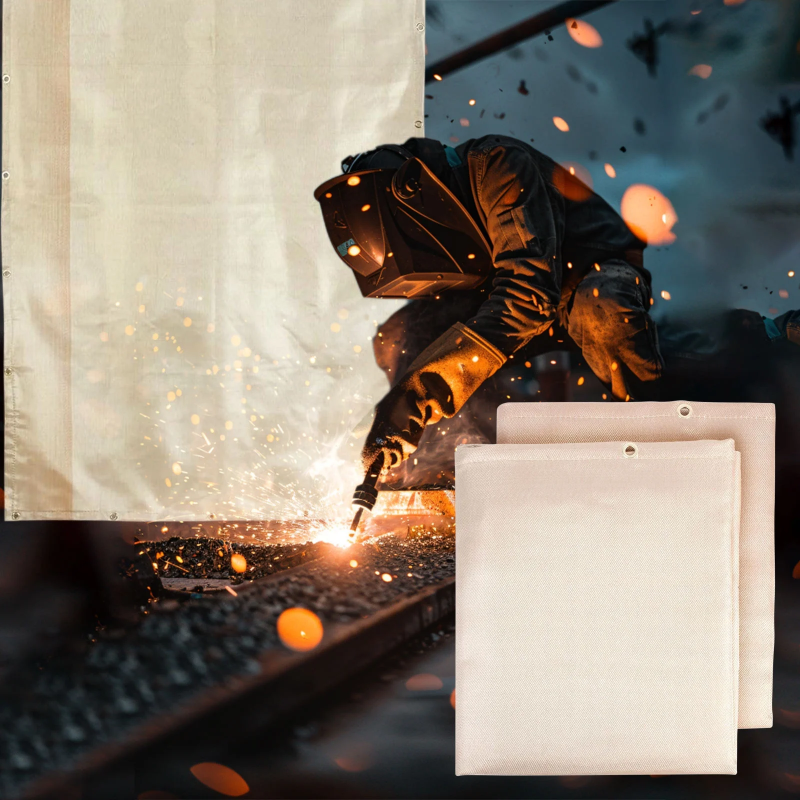

  • Welding & Metal Fabrication: Ideal for protecting workers, equipment, and floors from welding sparks, spatter, and UV radiation.

  • Foundry Work: Excellent for containing splashes and radiant heat in foundry and casting operations.

  • Fire Safety: Can be used as a temporary fire barrier or to wrap flammable materials and equipment.

  • High-Temperature Insulation: Suitable for furnace maintenance, heat treating, and other high-heat industrial processes.

  • Automotive & Shipbuilding: Perfect for creating safe work zones during cutting, grinding, and welding.
  • 1.7mm fiberglass fire blanket.png

    Advantages

    • Enhanced Safety: Significantly reduces the risk of fire and injury by effectively containing sparks and slag.
    • Equipment Protection: Prevents costly damage to machinery, tools, and work surfaces from heat and molten metal.
    • Long Service Life: The rugged fiberglass construction ensures the blanket lasts through tough industrial conditions.
    • Versatility: A multi-purpose safety solution for a wide range of industries and high-heat applications.
    • Cost-Effective: Provides reliable, durable protection, reducing downtime and replacement costs.

Item

0.45mm Fiberglass Fire Blanket

0.8mm Fiberglass Fire Blanket

1.7mm Fiberglass Fire Blanket

Physical Proterties

Ultra-thin & lightweight, excellent flexibility, easy to fold/store, low surface density

Medium thickness, balanced flexibility & rigidity, moderate weight, medium surface density

Heavy-duty thickness, high rigidity & tear resistance, heavy weight, high surface density, good formability

Fire Performance

Withstands ≥550°C, instant flame retardancy, basic insulation, suitable for small fire sources

Withstands ≥600°C, fast flame retardancy, medium insulation, short-term high-temperature radiant heat blocking

Withstands ≥700°C, excellent flame retardancy & insulation, long-term resistance to high heat/direct flame, low thermal conductivity

Mechanical Strength

Low tear resistance, cannot withstand heavy pressure/abrasion, easily damaged

Moderate tear resistance, withstands minor contact, suitable abrasion resistance for daily industrial use

Excellent tear/puncture/abrasion resistance, withstands heavy loads/mechanical scraping, highly durable

Key Industrial Features

Maximum portability, easy operation, quick deployment/covering, minimal storage space

High cost-effectiveness, balances portability & utility, suits most standard industrial scenarios, flexible installation/use

High protection rating, strong stability, suits high-risk/high-intensity industrial needs, long service life

Primary Industrial Application

1. Emergency isolation of small fires in labs/electrical cabinets

2. Fire protection for precision equipment/instruments

3. Temporary cover for small workshop tasks (e.g., welding, grinding) 4. Emergency fire reserve for offices/auxiliary rooms

1. Fire/slag isolation in standard welding (manual, gas-shielded

2. Fire zoning/isolation in light-duty assembly line areas

3. Fire cover for small flammable goods in storage

4. General workshop emergency use, equipment maintenance protection

5. Basic fire isolation in ship engine rooms/small mechanical spaces

1. Fire/slag isolation in heavy welding/cutting (submerged arc, plasma), resists high-temperature splatte

2. Heat shielding in metallurgy/foundries, fire barriers near furnaces/pouring stations

3. Full/partial protection for large industrial equipment (boilers, generators, large pumps)

How to Choose the Right Fire Blanket?

1. Consider the Temperature of Your Working Environment: Choose a product with an appropriate fire resistance rating based on the highest temperature in your work environment.

2. Assess Mechanical Strength Requirements: Consider whether frequent movement is required, whether there will be heavy objects pressing on it, or mechanical friction.

3. Balance Portability and Protection: Thin and lightweight products are easy to carry but offer lower protection, while heavy and heavy products offer better protection but are less portable.

4. Budget and Service Life: Consider long-term usage costs; while heavy and heavy products have a higher initial investment, they have a longer service life.

Demand Type

Recommended Product

Gernal Industrial Protection

1.0mm Fiberglass Fire Blanket

High Temperature Enviroment Protection

1.7mm Fiberglass Fire Blanket

Precision Equipment Protection

0.5mm Fiberglass Fire Blanket

Emergency Reserve

0. 5mm Fiberglass Fire Blanket

Heavy Industrial Operations

1.7mm Fiberglass Fire Blanket
