Safe Welding Habitat for Professional Welders

Welding Habitat

Welding Habitat /welding enclosure,hot work habitat is often a temporary enclosure or confined space designed to protect welders and the surrounding environment during welding operations.Used in industries like oil & gas, shipbuilding, and construction , especially in hazardous or confined areas.Provides controlled conditions (ventilation, temperature, gas monitoring) to ensure safety.

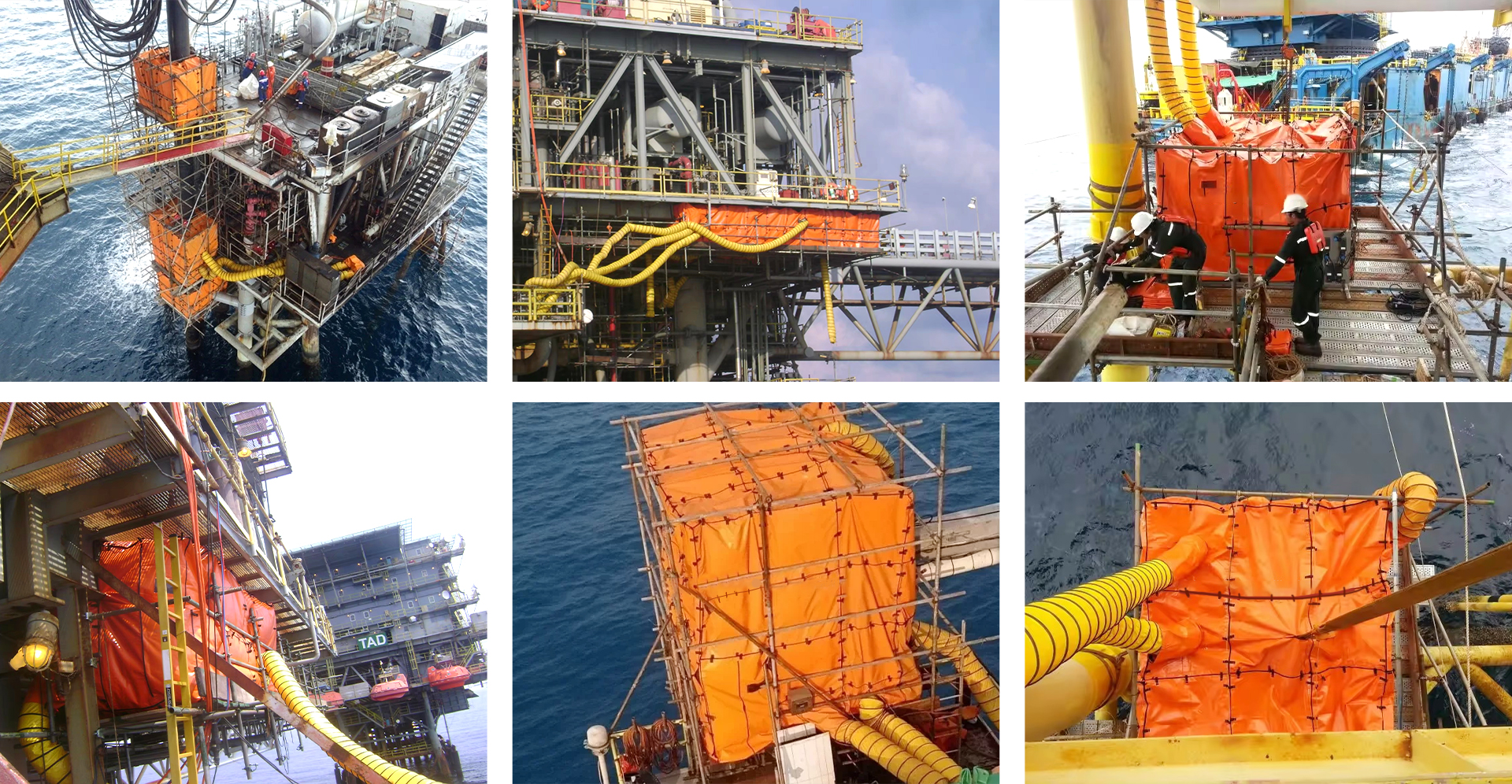

In offshore or underwater welding , a welding habitat is a dry chamber that surrounds the welding area, allowing welders to work in a dry environment underwater,Used for pipeline repairs, offshore structures, and ship hulls. Maintains atmospheric pressure and prevents water intrusion.

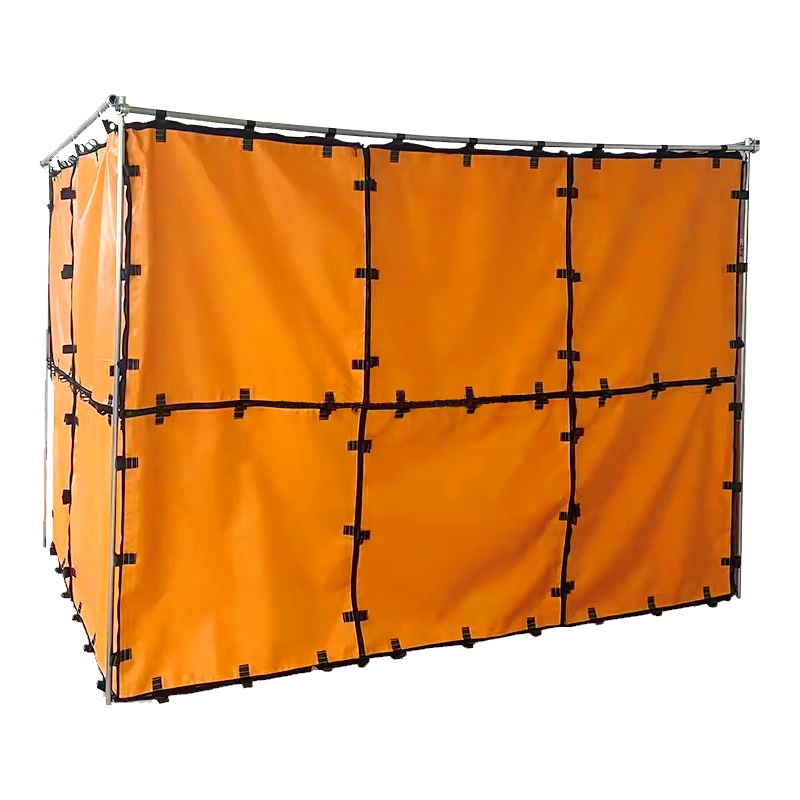

High-quality silicone coated fiberglass cloth is the best solution for welding habitat. It can be made into panels for welding habitats and is the main component of welding habitats. It is called welding habitat panels in welding habitat systems. The welding habitats panels can be composed of high quality silicone coated fiberglass cloth,Velcro, zippers, D ring,and are sewn with flame-retardant yarns to ensure a safe and insulated environment for the welded habitat, and meet the important requirements of good sealing. The welding habitat is made of high-quality and durable silicone fiberglass material, which can withstand weld- ing and grinding sparks up to 550 degrees without additional internal cladding. The floor is covered with extra- thick fiberglass cloth, which can increase the fire resistance to 1100℃, which can withstand the hot molten metal or slag in the welding house.

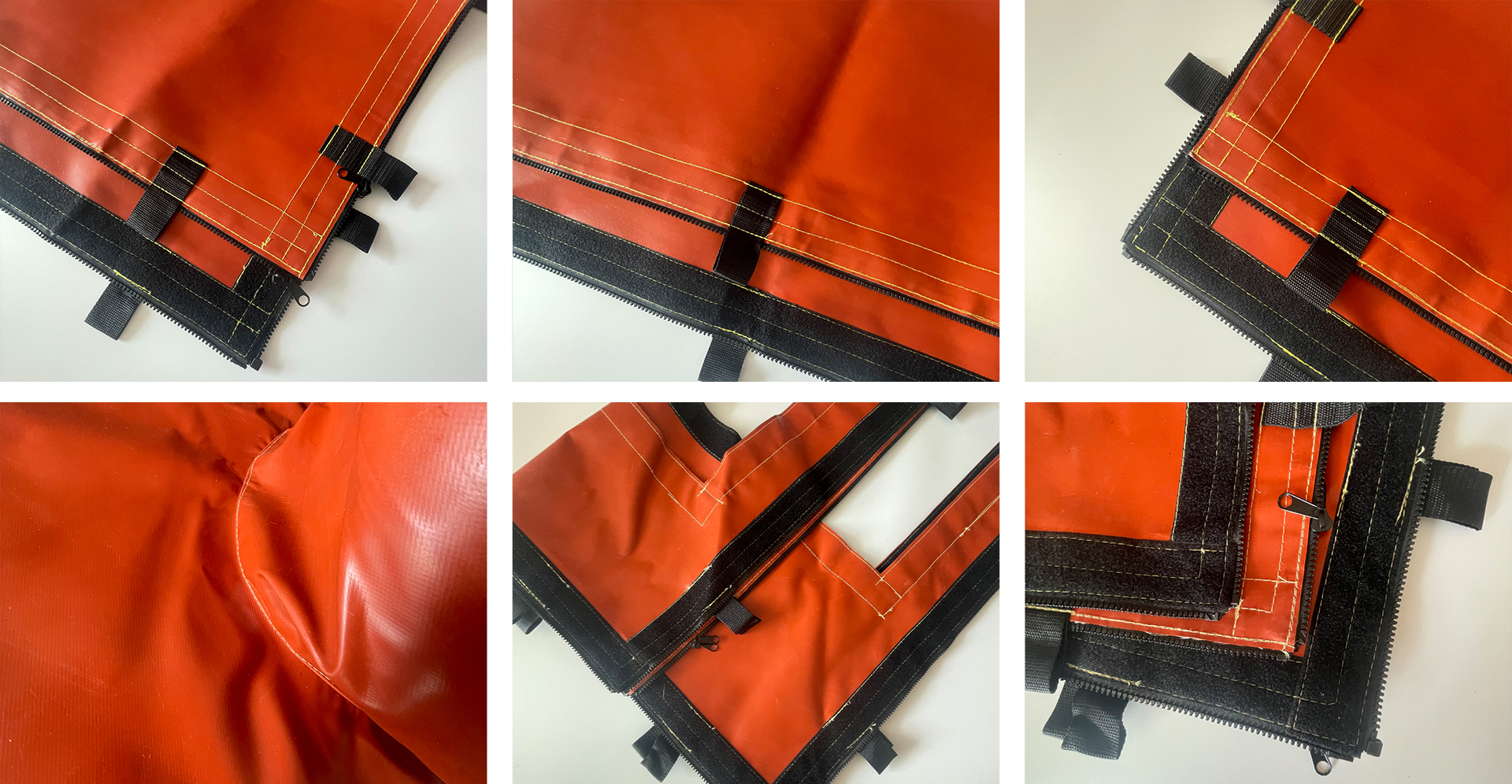

焊接屋-细节.jpg 焊接屋-组成.jpg

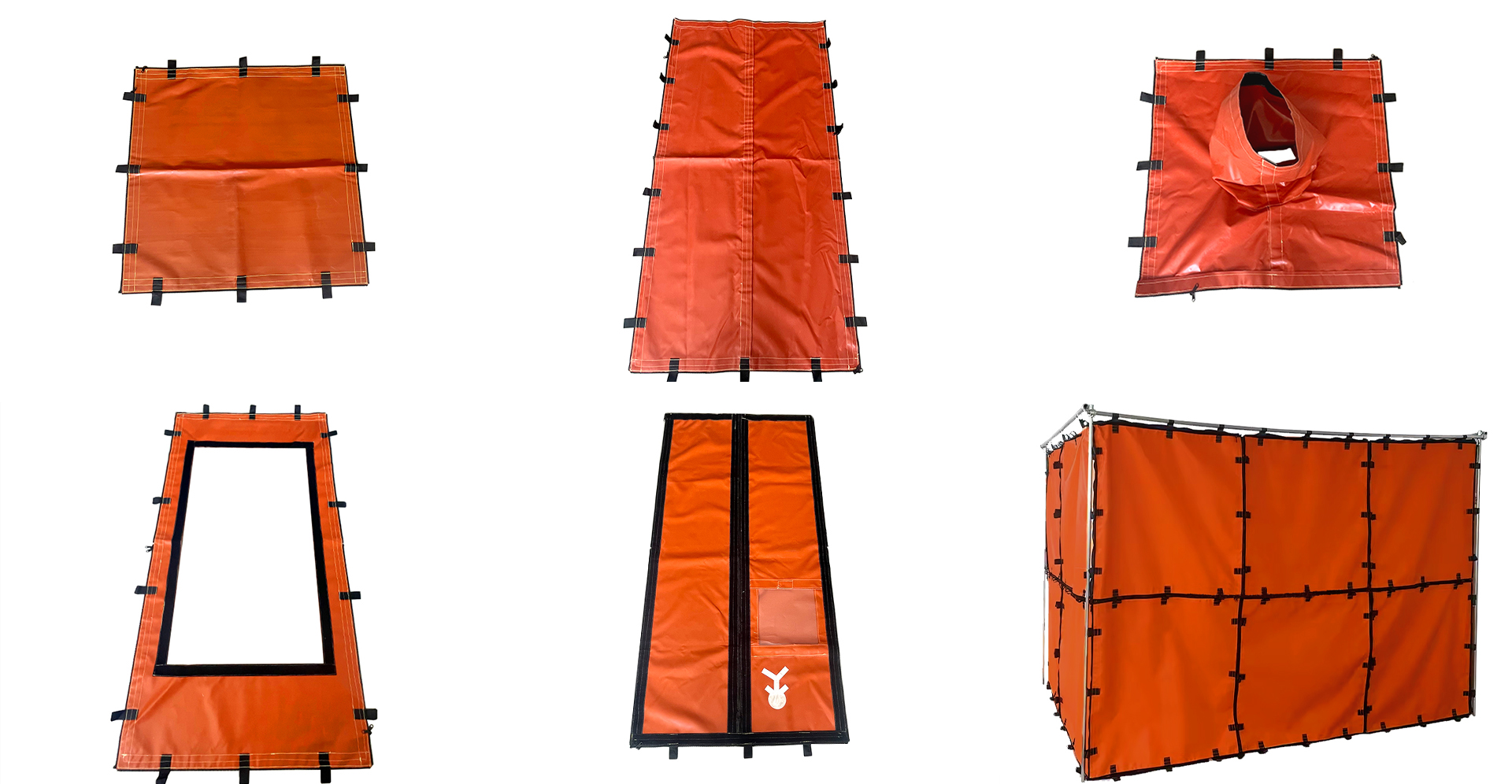

The welding habitats panels can be composed of high quality silicone coated fiberglass cloth , Velcro, zippers, D ring , and are sewn with flame-retardant yarns to ensure a safe and insulated environment for the welded habitat, and meet the important requirements of good sealing.

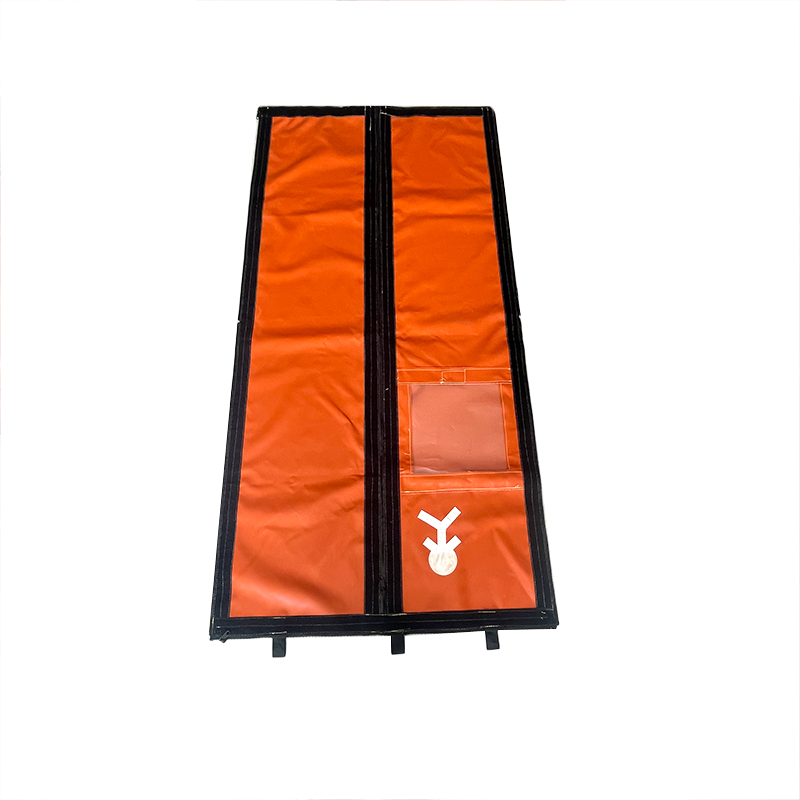

Emergency escape panels to provide easy access to the predetermined escape route

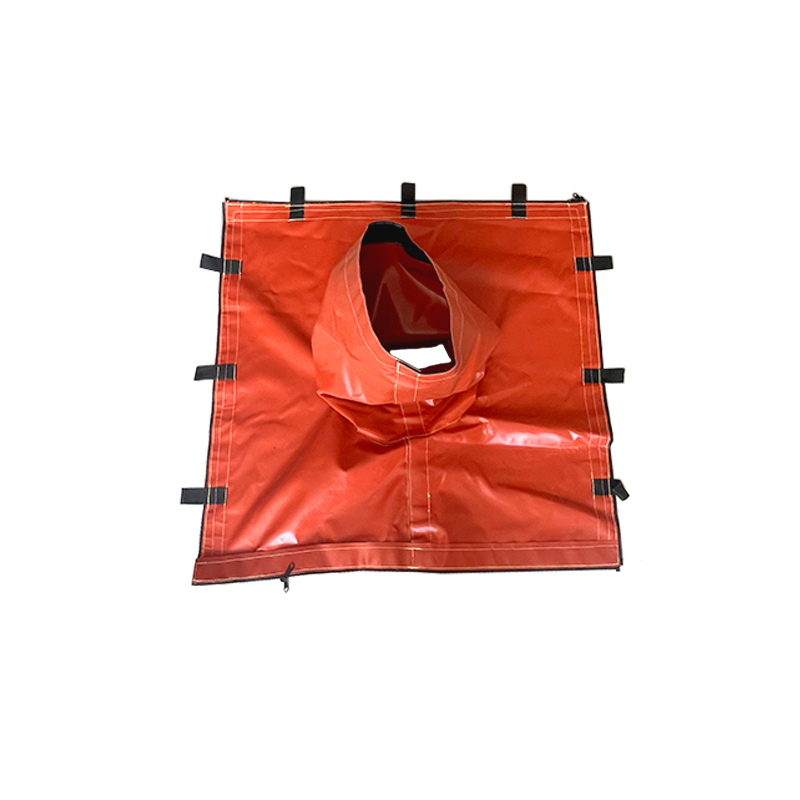

Modified panel and special penetration panel can be used for pipe connections to organize all temporary cables and wires

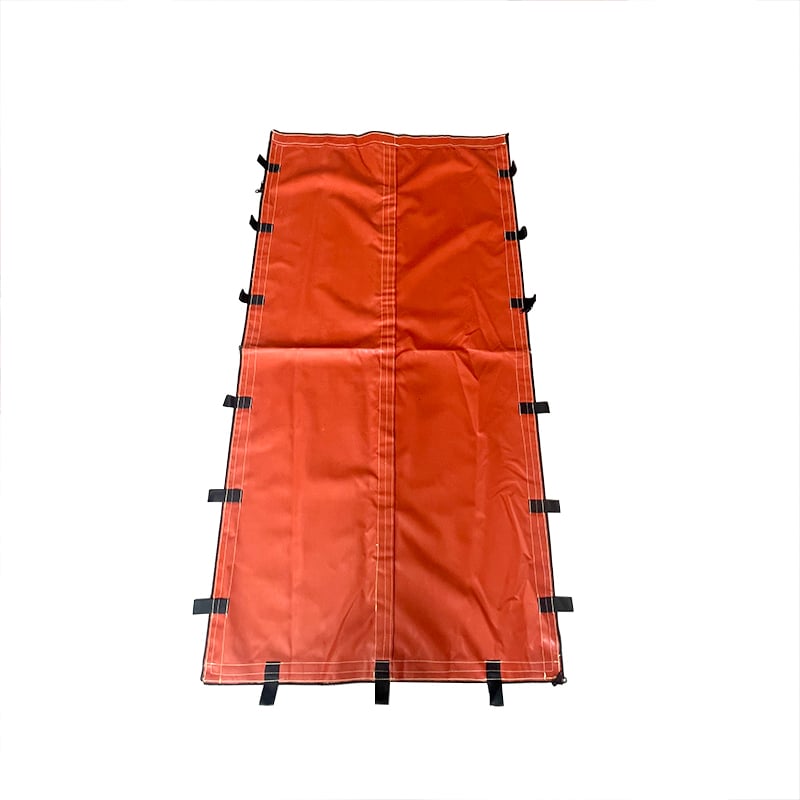

1x2m door panel with marine aluminum door panels with windows, firefighters can observe the internal working team while monitoring the pressure control gauge fixed to the door gas pipe.

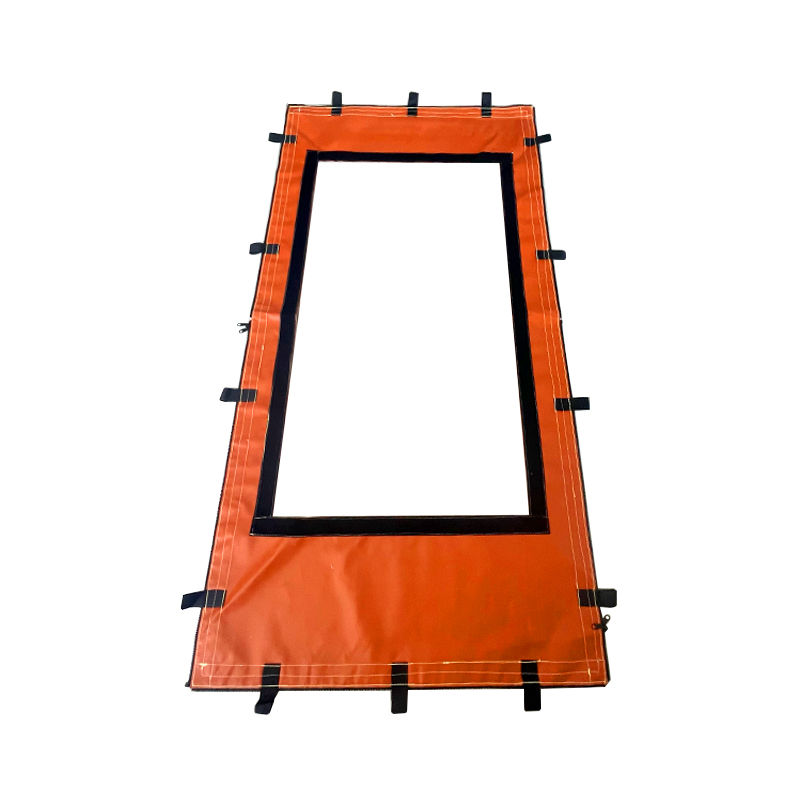

Patch panel can well isolate non-explosion-proof materials from the hazardous area, repair and seal the gaps in the welding habitat, and greatly increase the safety of the safe habitat.

The welding habitat is made of high-quality and durable silicone fiberglass material, which can withstand welding and grinding sparks up to 550 degrees without additional internal cladding. The floor is covered with extra-thick fiberglass cloth, which can increase the fire resistance to 850 degrees, which can withstand the hot molten metal or slag in the welding house.

Material	Silicone Coated Fiberglass
Thickness	0.45mm, 0.75mm, 1.0mm
Color	Orange, grey , blue
Service Temperature	Hot sale 550 ℃ Heavy duty :1000 ℃

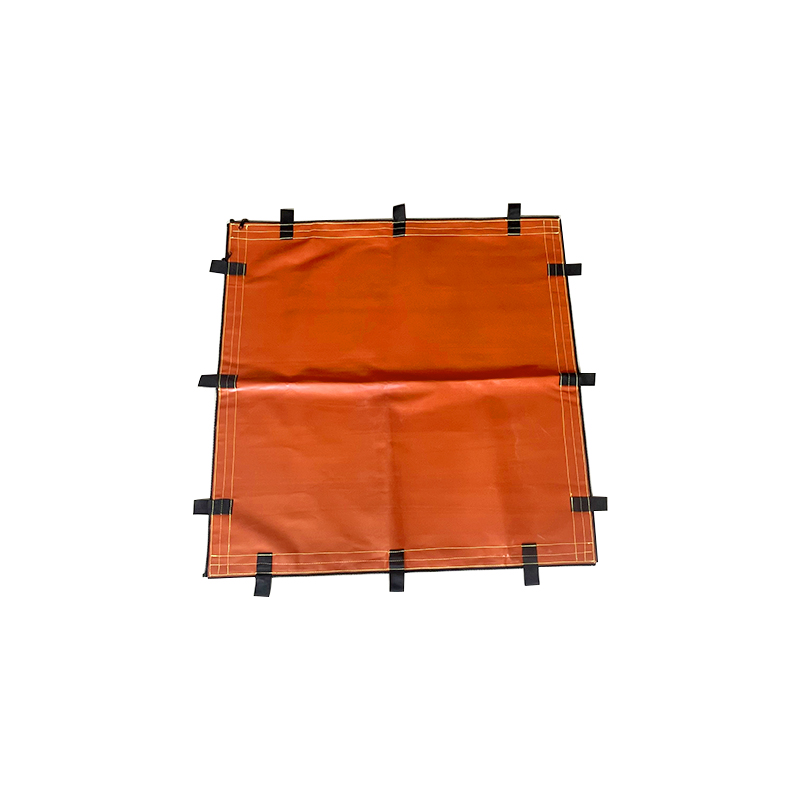

Size	Standard size:1x1m, modified panel 1x1m, emergency escape panel 1x2m, special penetration panel , patch panel
Certificate	ANSI/FM4950, EN1869, NFPA701
Components	Fire retardant yarn, zipper, Velcro , D ring ,etc

Welding Habitat /welding enclosure,hot work habitat is often a temporary enclosure or confined space designed to protect welders and the surrounding environment during welding operations.Used in industries like oil & gas, shipbuilding, and construction , especially in hazardous or confined areas.Provides controlled conditions (ventilation, temperature, gas monitoring) to ensure safety.
In offshore or underwater welding , a welding habitat is a dry chamber that surrounds the welding area, allowing welders to work in a dry environment underwater,Used for pipeline repairs, offshore structures, and ship hulls. Maintains atmospheric pressure and prevents water intrusion.
