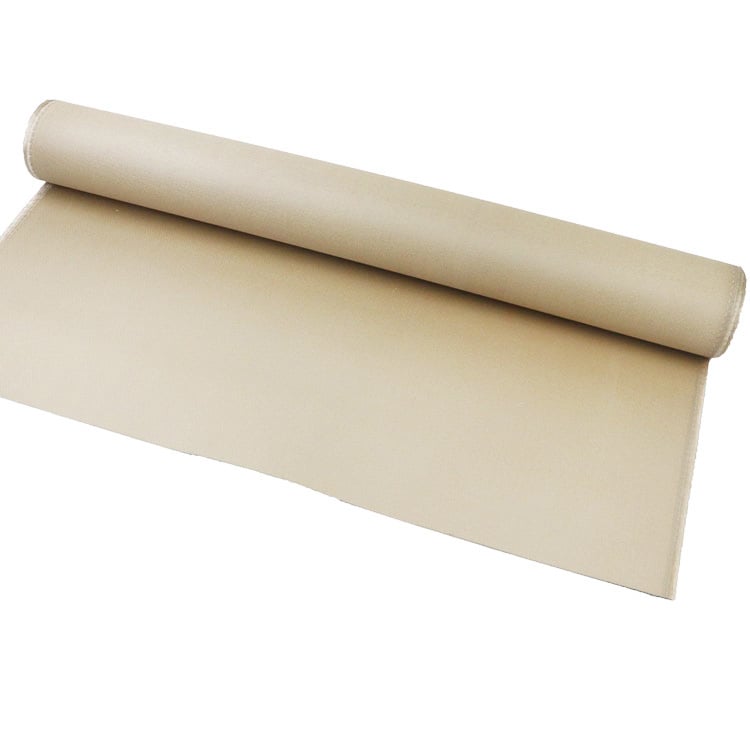

Vermiculite Coated Fiberglass Cloth

Vermiculite Coated Fiberglass Cloth Introduce

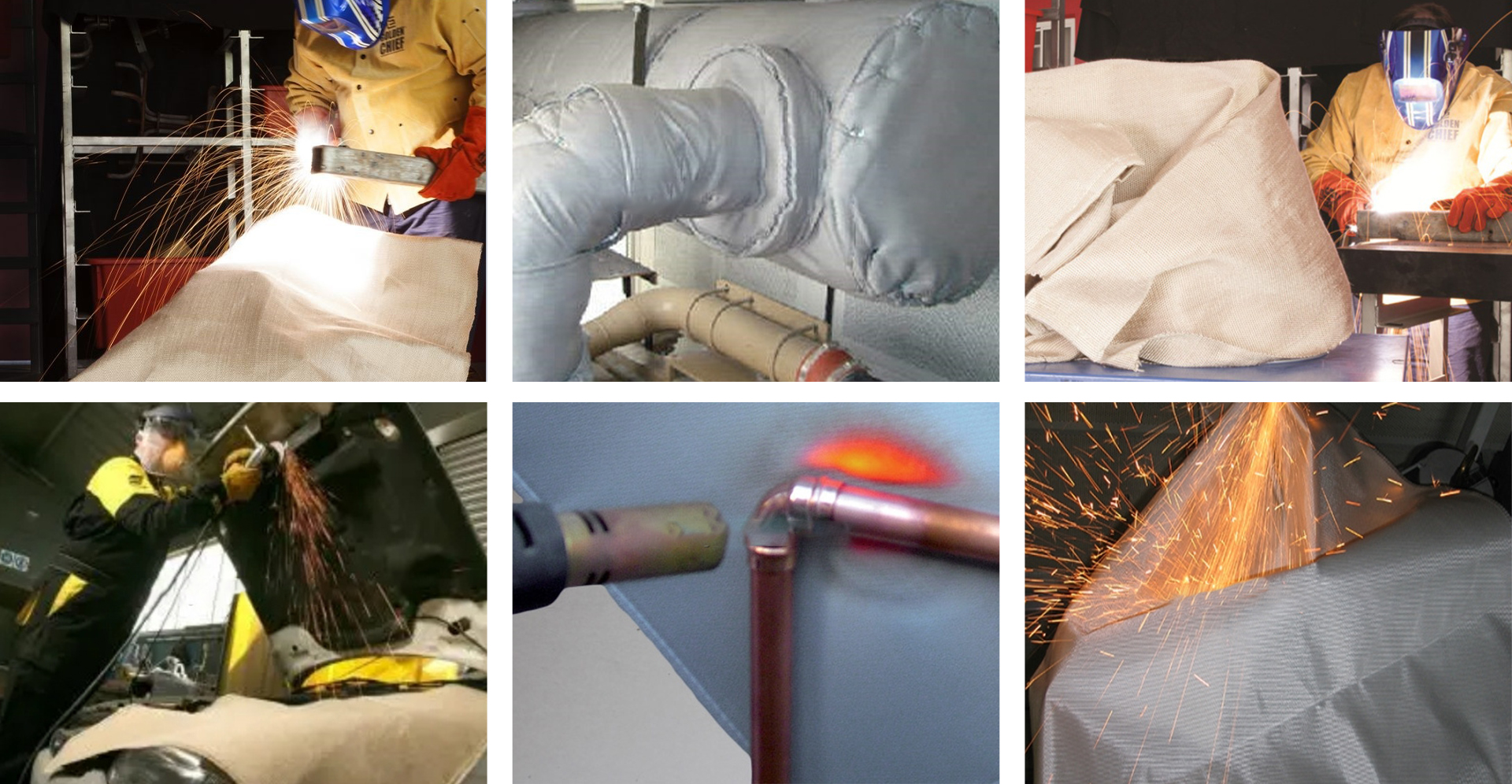

Welding protection, energy and fire safety.

High temperature resistant fabric is woven from "E" glass fibers or high silica cloth and coated with a vermiculite based film to provide extended use temperatures up to 1500°F.

Vermiculite is a natural mica hydrated magnesium aluminum silicate product that is asbestos free and 100% inorganic. Tiny disc-shaped flakes overlap within the vermiculite film. These flakes are embedded within the fiber bundles of the fabric. These flakes coat the surface of the fabric creating a thermal film that effectively blocks out the barrier/heat.


Heat resistance, corrosion resistance, insulation performance and mechanical strength, It has the functions of anti-ozone, anti-oxidation, light seasoning and climate seasoning, high strength, high modulus, low shrinkage, no deformation.

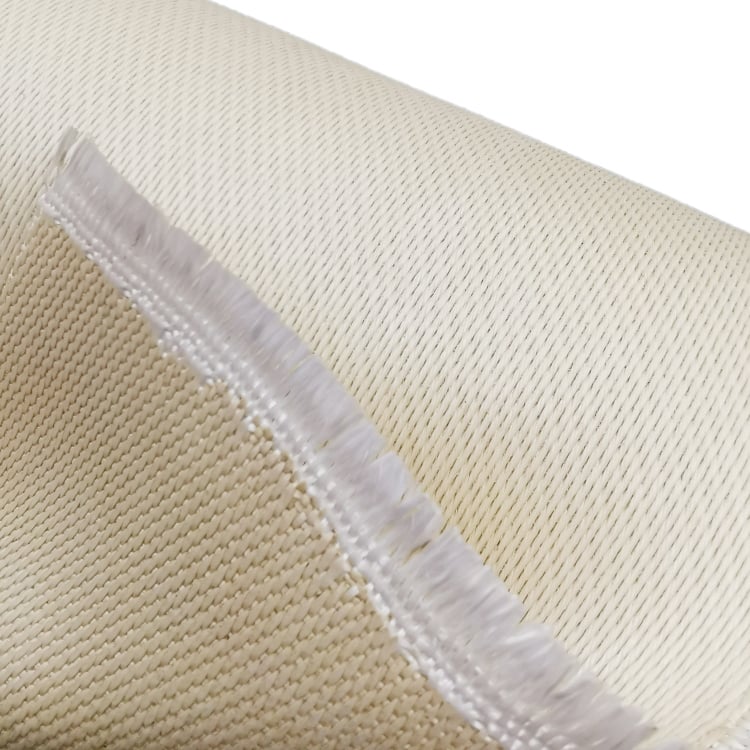

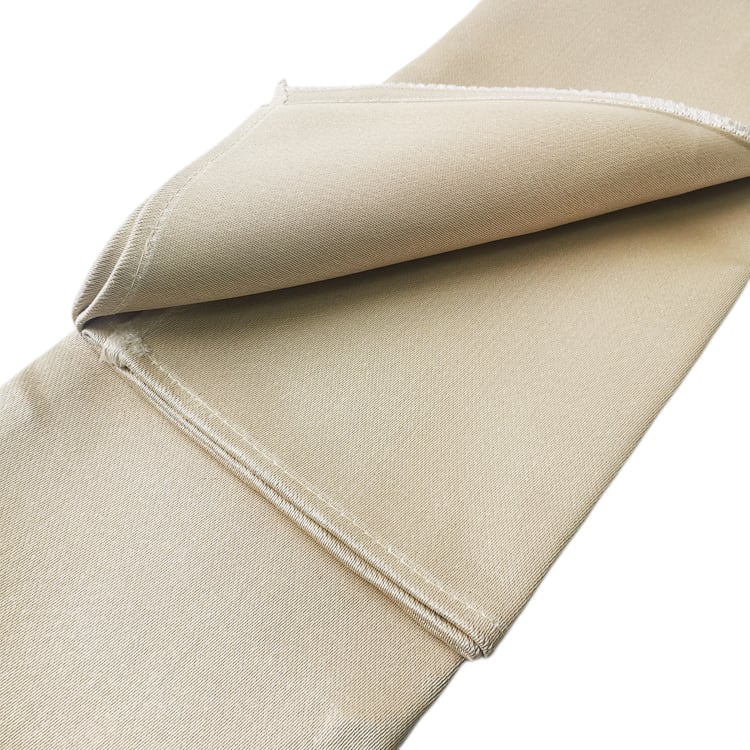

未标题-1_0005_蛭石 (9).jpg 未标题-1_0006_蛭石 (17).jpg

Service Temperature : 1100 ℃.

Standard Width : 920mm(36inch) , 1000mm(40inch).

Product Code	Weave	Coating	Sio2 %	Weight		Thickness
Product Code	Weave	Coating	Sio2 %	g/m²	Oz/yd²	mm	inch
RD600HS-A	8H Satin	Vermiculite	96	660	20	0.7	0.028
RD1200HS-A	12H Satin	Vermiculite	96	1250	37	1.35	0.05
