PVC COATED FIBERGLASS CLOTH Fire blanket glass fiber fabric pvc coated orange PVC 260

PVC coated fiberglass fabric widely used in shipbuilding , Mechanical & Electrical works for the Oil and Gas refineries, Petrochemical Plants and as well as general buildings. Chemical industry ,military, fire resistant blanket ,welding protection products .

PVC coated fiberglass cloth is made of e glass fabric coated polyvinyl chloride ,it has excellent properties including flame retardant structure ,corrosion resistance, excellent heat insulation and mechanical strength. It is widely used in shipbuilding , Mechanical & Electrical works for the Oil and Gas refineries, Petrochemical Plants and as well as general buildings. chemical industry ,military, fire resistant blanket ,welding protection products .

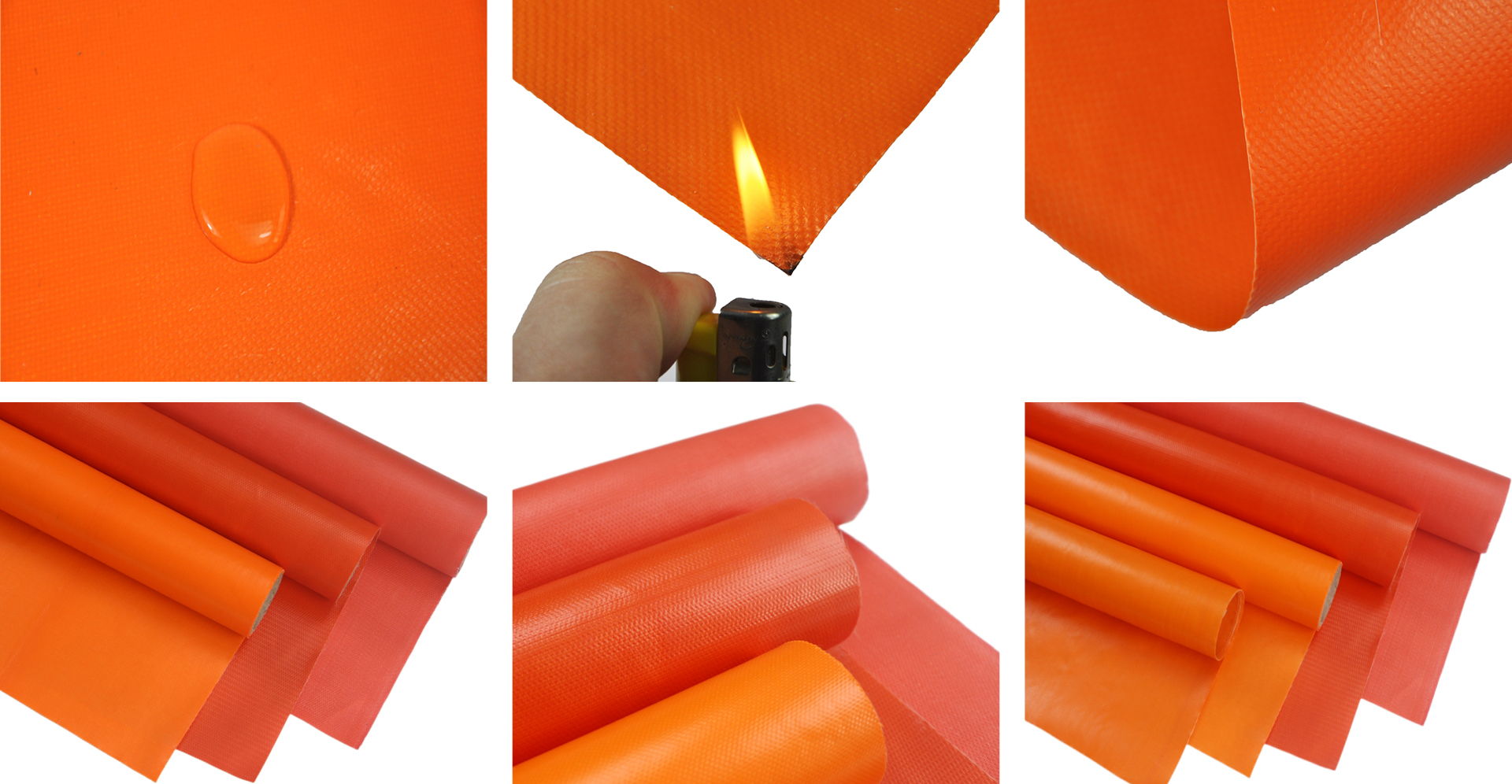

PVC玻璃纤维涂层布-细节.jpg PVC玻璃纤维涂层布-工厂.jpg

Reliable safety tool design for fire protection,
Offering excellent heat resistance and durability
Keep space safe with fire safety product

未标题-1_0006_PVC涂层布 (10).jpg 未标题-1_0005_PVC涂层布 (43).jpg

Fire blanket glass fiber fabric pvc coated orange PVC 260

Characteristic	Unit	Data				Method
Base Fabric		E glass Fabric
Weave		PLAIN
Yam	TEX	WARP		WEFT
Yam	TEX	EC9 33 3×1		EC9 33 3×1
Weight	g/㎡	260				ASTM-D3776-2009
Thickness	Mm	0.3				ASTM-D1777-1996
Thread Count	per cm	WARP	16	WEFT	10	ASTM-D3775-2008
Coating		PVC Double Side
Color		Orange
Coating Weight	g/㎡	100				ASTM-D3776-2009
Total Weight	g/㎡	360				ASTM-D3776-2009
Total Thickness	mm	0.36				ASTM-D1777-1996
Tensile Strength	N/2.5cm	WARP	1100	WEFT	660	ASTM-D5034-2001
Service Temperature	℃	550

Other specification we can produce as follows:

Product Code	Weave	Finish	Coating	Weight(±5%)		Thickness(±10%)		Color
Product Code	Weave	Finish	g/m²	g/m²	Oz/yd²	mm	inch	Color
RD3732PO	Twill	one side	30	450	13	0.43	0.017	Grey
RD3732PO	Twill	one side	60	480	14	0.43	0.017	Grey
RD3732PT	Twill	two side	60	480	14	0.45	0.018	Grey
RD3784PT	8H Satin	two side	100	940	28	0.8	0.03	Grey
