Heavy duty oil&offhore welding habitat panels-550°C Heat Resistant Offshore Pressurized Flexible Welding Enclosure Isolation System

Heavy duty oil&offhore welding habitat panels-550°C Heat Resistant Offshore Pressurized Flexible Welding Enclosure Isolation System

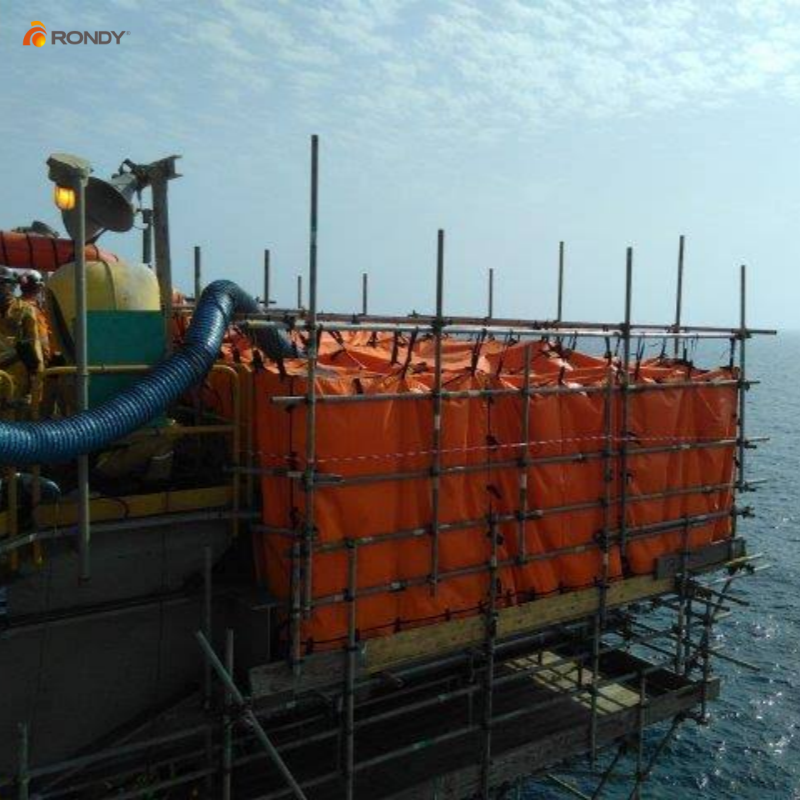

Pressurized safety habitats for hazardous zone,offshore oil platforms &petrochemical refineries

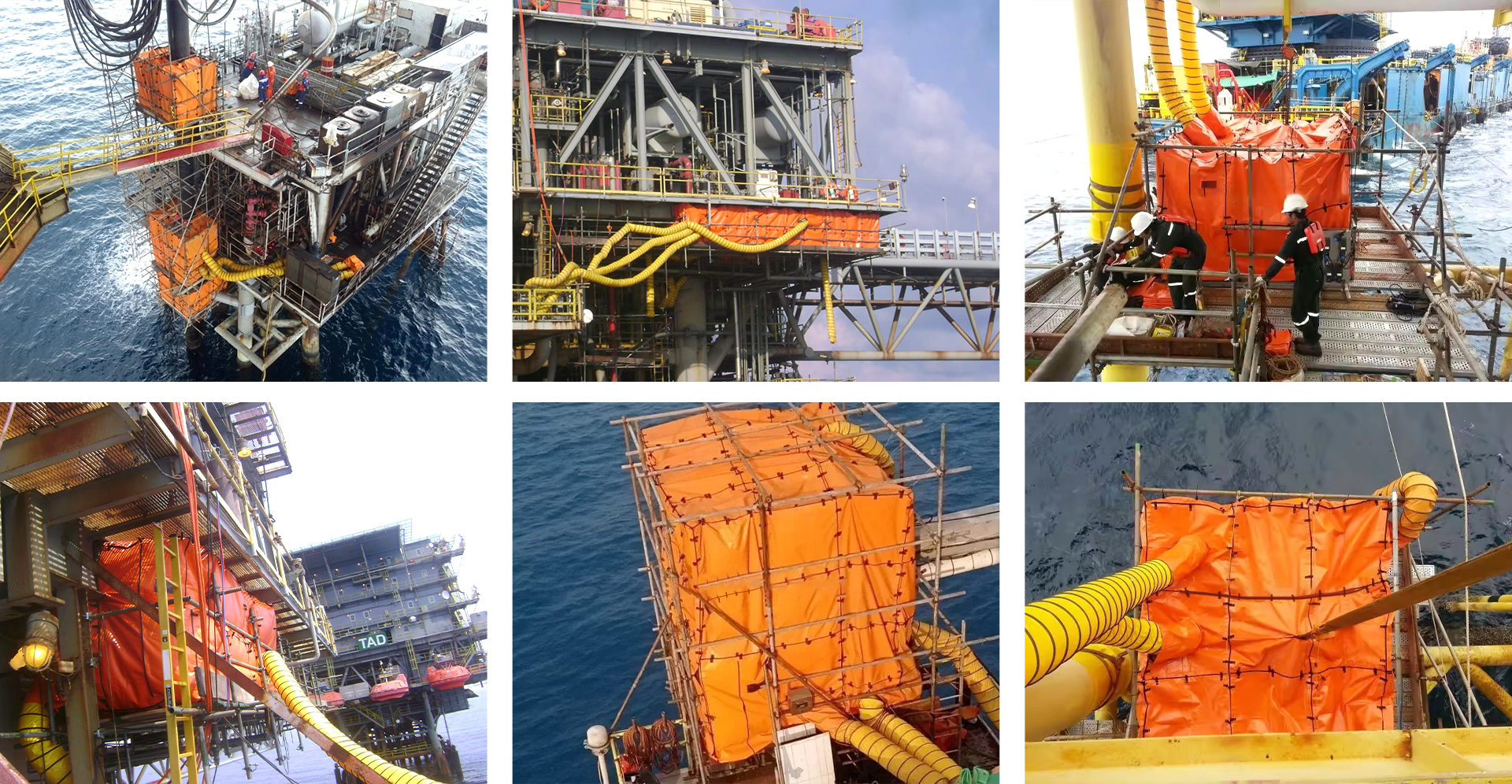

Welding habitat panel is the core component of modular welding enclosures, widely applied for offshore oil & gas platforms, marine engineering, shipbuilding, on-site pipeline welding, high-altitude hot work and confined space welding operations.

Manufactured from premium silicone coated fiberglass fabric and sewn with flame-retardant yarn, our welding habitat panels build a fully sealed, heat-insulated, safe enclosed working area for hot work. Equipped with integrated Velcro, heavy-duty zippers and D-rings for quick assembly and flexible splicing, these panels effectively contain welding sparks, spatter, molten slag and heat radiation, preventing fire hazards and protecting surrounding equipment, personnel and flammable structures.

The main panel structure can continuously resist welding sparks and grinding heat up to 550°C. Our extra-thick floor cloth version can withstand molten metal and slag up to 850°C, eliminating the need for extra inner cladding lining for most working scenarios. Heavy-duty customized versions support extreme temperature resistance up to 1000°C for ultra-high-temperature hot work applications.

welding habitat panels.jpg

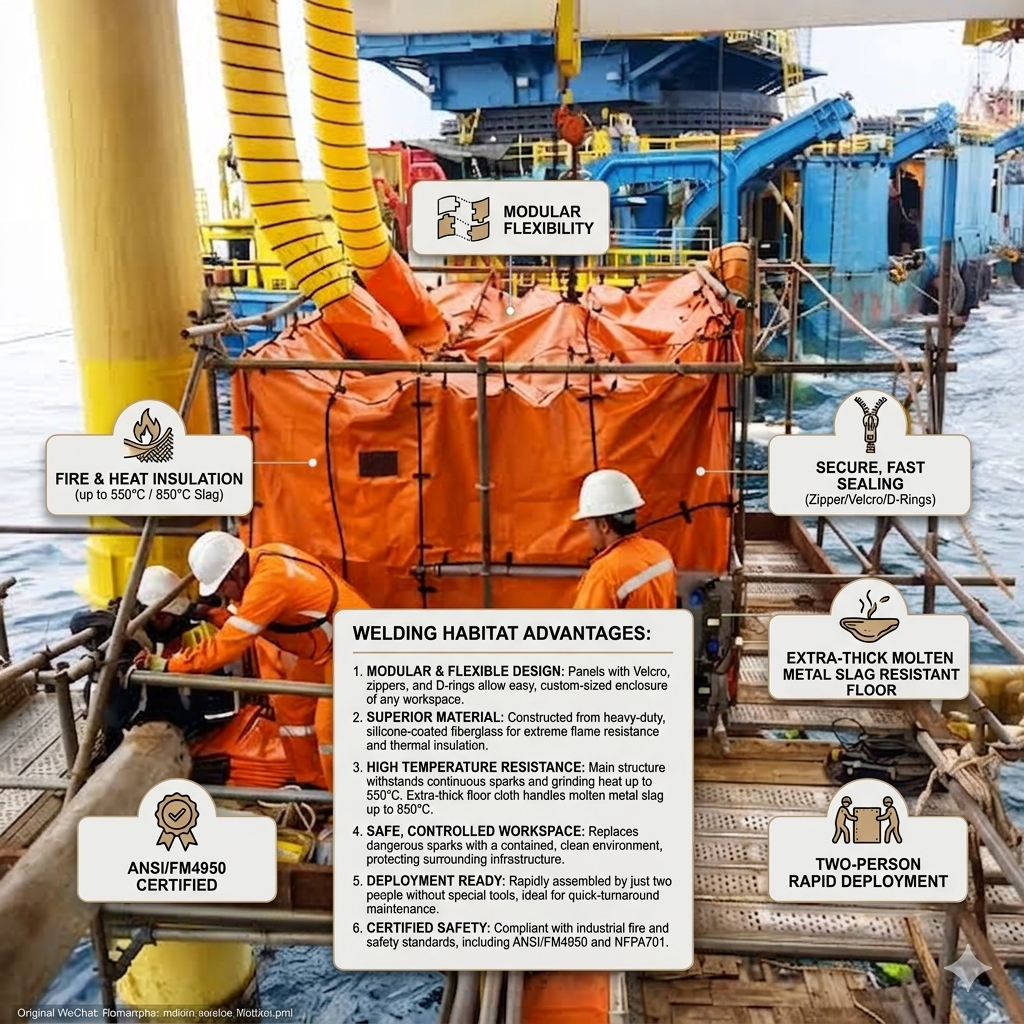

Feature

High-Temperature Resistance: The main panel structure withstands continuous sparks and grinding heat up to 550°C.

Heavy Duty Floor Protection: Crafted with extra-thick floor cloth capable of resisting molten metal drops and burning slag up to 850°C / 1000°C without requiring additional costly inner cladding.

Flexible Modular Interlocking: Seamlessly connect multiple panels via heavy-duty industrial zippers and Velcro borders to build any custom enclosure size around pipelines or structural steel.

Superior Air-Tight Sealing: Optimized for positive pressure environments to prevent dangerous external gas from penetrating the welding zone.

Compliant & Certified: Extensively tested and approved under leading international fire safety standards including ANSI/FM4950, EN1869, and NFPA701.

welding habitat .png

Specification

Item	Detailed Specification
Base Material	Silicone Coated Fiberglass Fabric
Available Thickness	0.45mm / 0.75mm / 1.0mm
Standard Colors	Orange, Grey, Blue (Custom color acceptable upon request)
Working Temperature Range	Standard Grade: 550°C (Hot Selling Type) Heavy-Duty High Temp Grade: 1000°C

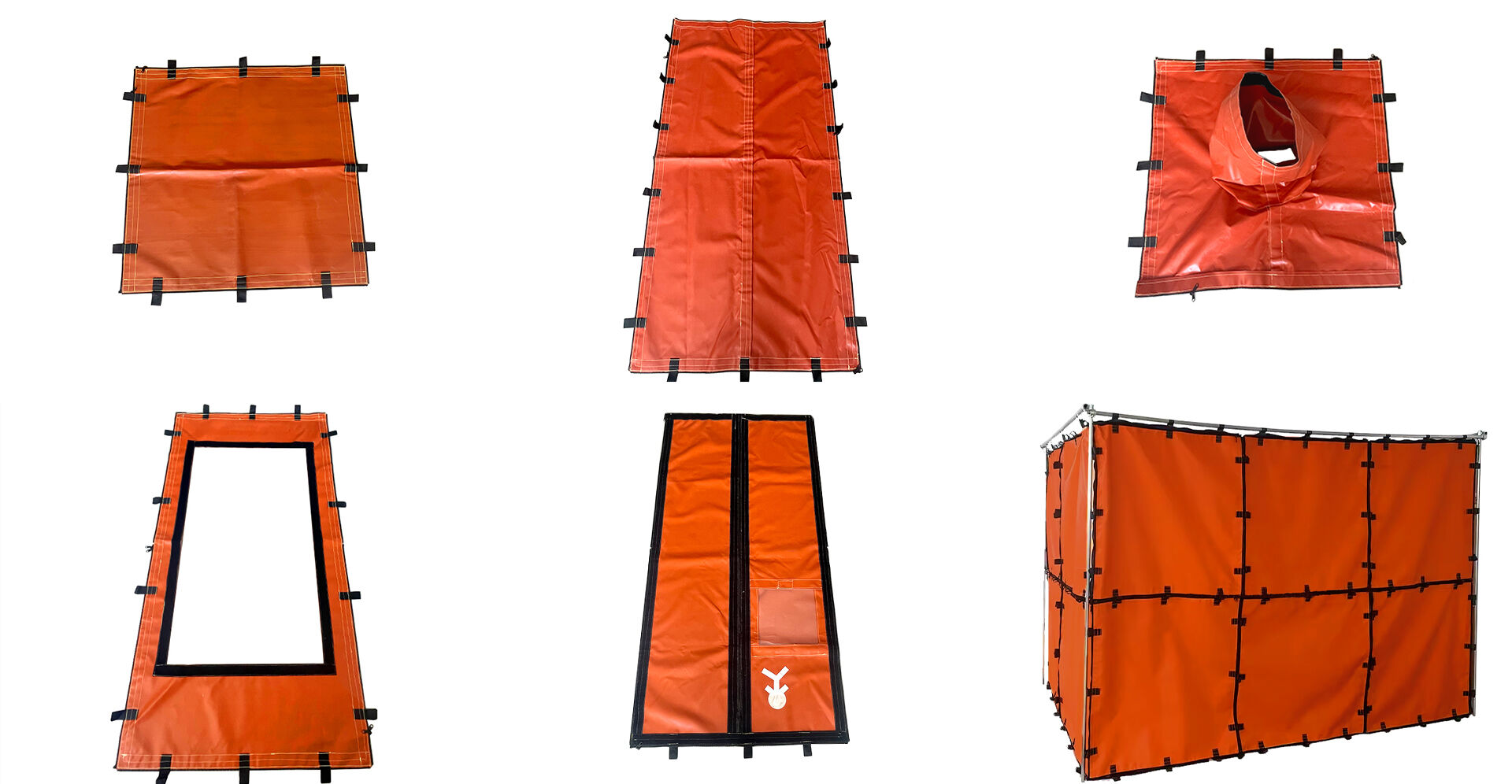

Standard Panel Sizes	1m×1m Standard Panel 1m×1m Modified Panel 1m×2m Emergency Escape Panel Special Penetration Panel Patch Repair Panel Custom cut-to-size sizes available
Authority Certifications	ANSI/FM4950, EN1869, NFPA701 (Third-party fire resistance certification compliant)
Standard Fitting Components	Flame retardant sewing yarn, Industrial zipper, Velcro tape, D-rings, reinforced grommets for fast connection
