Texturized Fiberglass Mesh

It is designed and produced specifically for stone products,also has been widely used to reinforce cement, marble, stone, mosaic, granite, slate, limestone, quartzite, sandstone etc.

Texturized/Bulked yarn fiberglass mesh is leno weaved fiberglass cmesh cloth by chemical grade glass fiber filament and texturized yarn (half texturized and all texturized), then impregnated with alkali resistance latex. It is an ideal building reinforcement material for mosaic , marble slab back support.

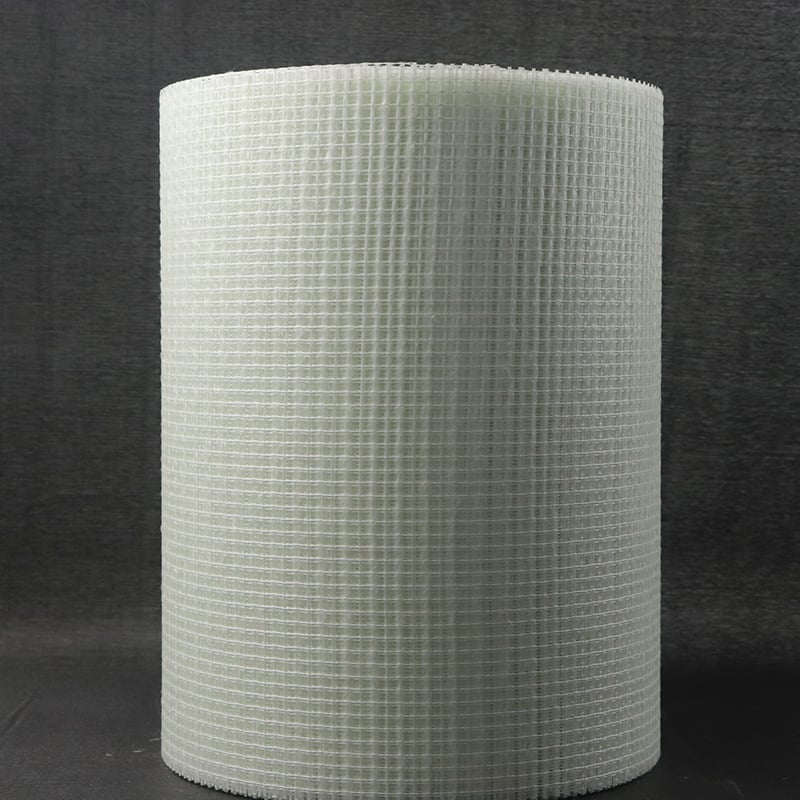

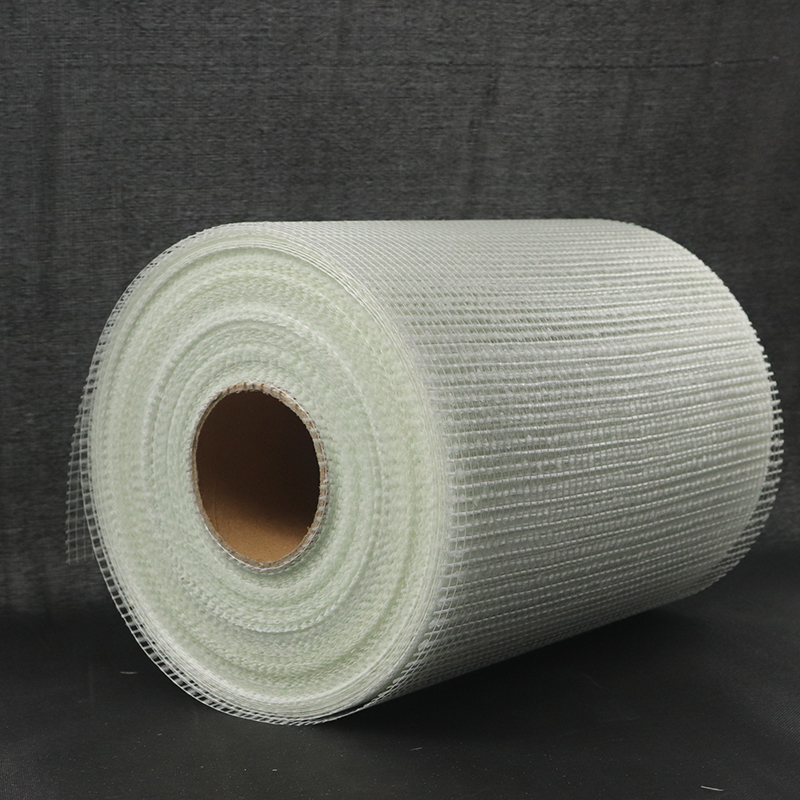

fiberglass mesh for mosaic .JPG texturized fiberglass mesh 110gsm.JPG

Enhance Durability ,prevent cracking,improve structural integrity
Help distributes stress ,reducing the risk of cracking under pressure or bending
It can prevent mosaics from falling off, reduce fine lines, resist cracking, and can connect mosaics ,marbles to prevent them from being fragile.

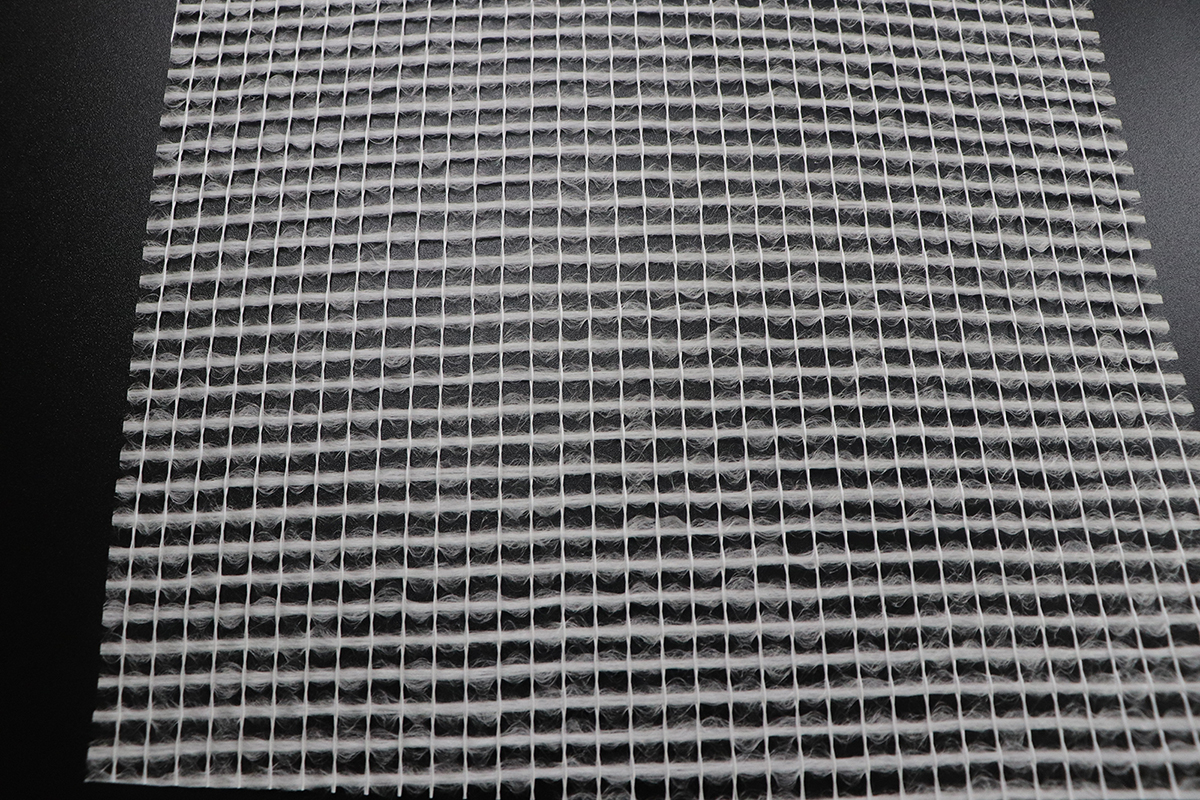

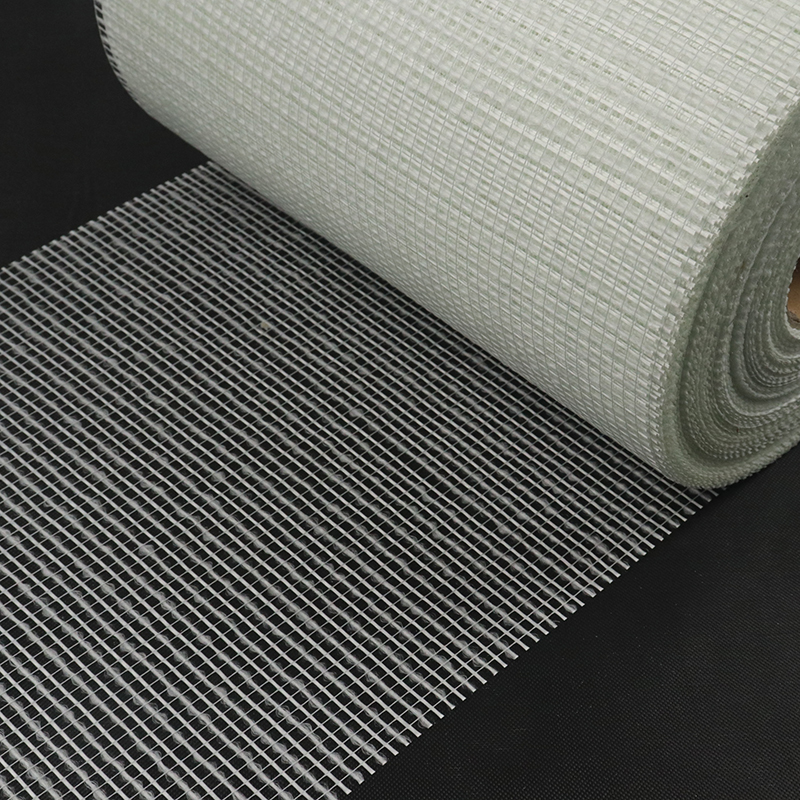

mosaic bulk yarn fiberglass mesh.JPG texturized fiberglass mesh.JPG

The specification we can produce:

Weight: 80g/m2, 110g/m2,120g/m2
Roll length: 200m ,300m,400m
Roll wide: 22cm, 25cm, 28cm, 30cm, 31cm, 33cm
Type: half texturized fiberglass mesh or full texturized fiberglass mesh

Glass Fabric			Unit	Tolerance	Standard
Yarn	Warp	68*2	Tex	±4	GB/T 7690 1-87
Yarn	Weft	400&68	Tex	±4	GB/T 7690 1-87
Mesh size	Warp	5	mm	±1	GB/T 7690 5-2001
Mesh size	Weft	6	mm	±1	GB/T 7690 5-2001
Tensile strength	Warp	2250	N/50mm	≥	GB/T 7690 5-2001
Tensile strength	Weft	850	N/50mm	≥	GB/T 7690 5-2001
Area weight		120	G/m2	±5	GB/T 9914.3-2001
Thickness		0.45	Mm	±0.02	GB/T 7689.3-2001
Weave pattern	Leno
Finish type	AR Latex
Final weight	120g/m2

It is designed and produced specifically for stone products,also has been widely used to reinforce cement, marble, stone, mosaic, granite, slate, limestone, quartzite, sandstone etc.

Width and length can be customized
Inner packing : plastic bag
Outer packing : woven bag or carton or pallet
