ZrO2 16.5% Alkali Resistant Fiberglass Mesh

External Insulation System (ETICS/EIFS)

Used to reinforced the crack resistance of insulation layers (such as EPS/XPS boards) to prevent cracking and falling off.
Used in thin plaster systems as a reinforcement layer for fiberglass mesh cloth.

Tile marble backing and waterproof layer reinforcement

As a reinforcement material in tile,marble adhesive or waterproof coating to improve crack resistance and impact resistance

Concrete reinforcement

Used for repairing and reinforcing concrete structures to prevent crack expansion.

Woven by a weaving process, alkali-resistant fiberglass mesh with a zirconia (ZrO2) content of 16.5%. The content of surface coating material is 10%-16%. The superior alkali resistant properties, excellent physical and mechanical properties and chemical stability make it suitable for wall insulation, road and bridge construction, wall crack protection and other construction processes.

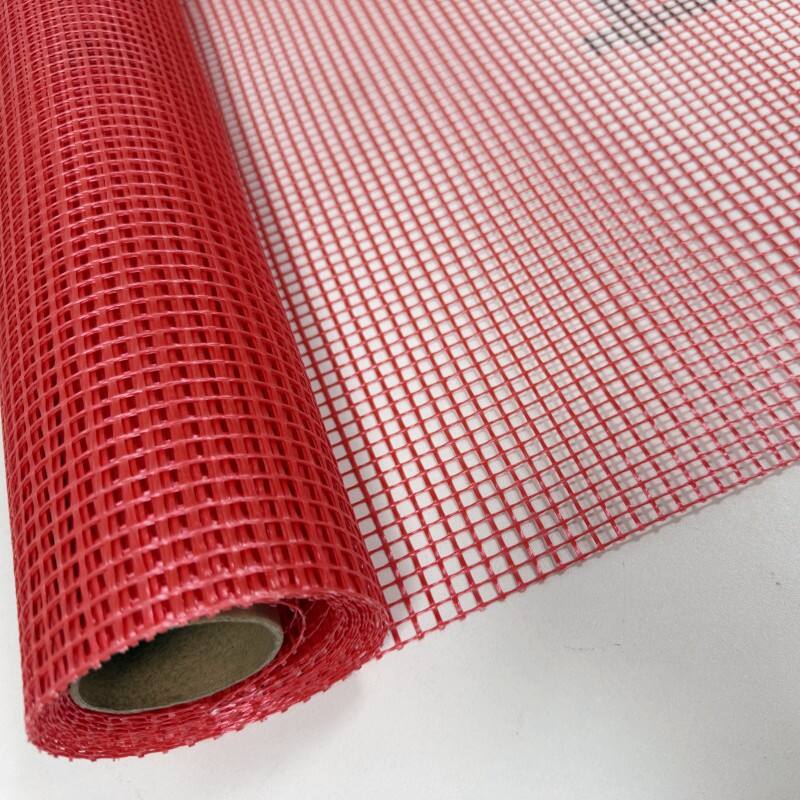

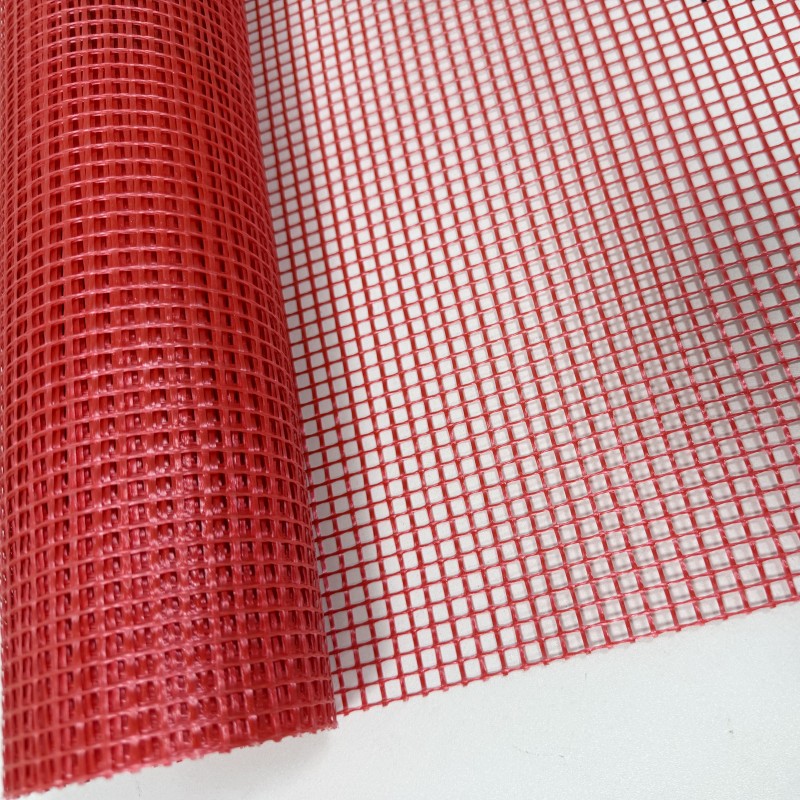

160g 5x5mm fiberglass mesh.jpg eif fiberglass mesh.jpg

① High tensile breaking strength and modulus of elasticity, low elongation at break;

② Zirconium oxide (ZrO2)content ≥ 16.5%, super high alkali resistance ≥ 90%, long-term alkali resistance is more than 2 times that of medium alkali fiberglass mesh ;

③ Anti-corrosion and UV resistance;

④ Excellent grid positioning, moderate hardness, easy to cut and construction;

⑤ Superior working durability, Service life of more than 50 years

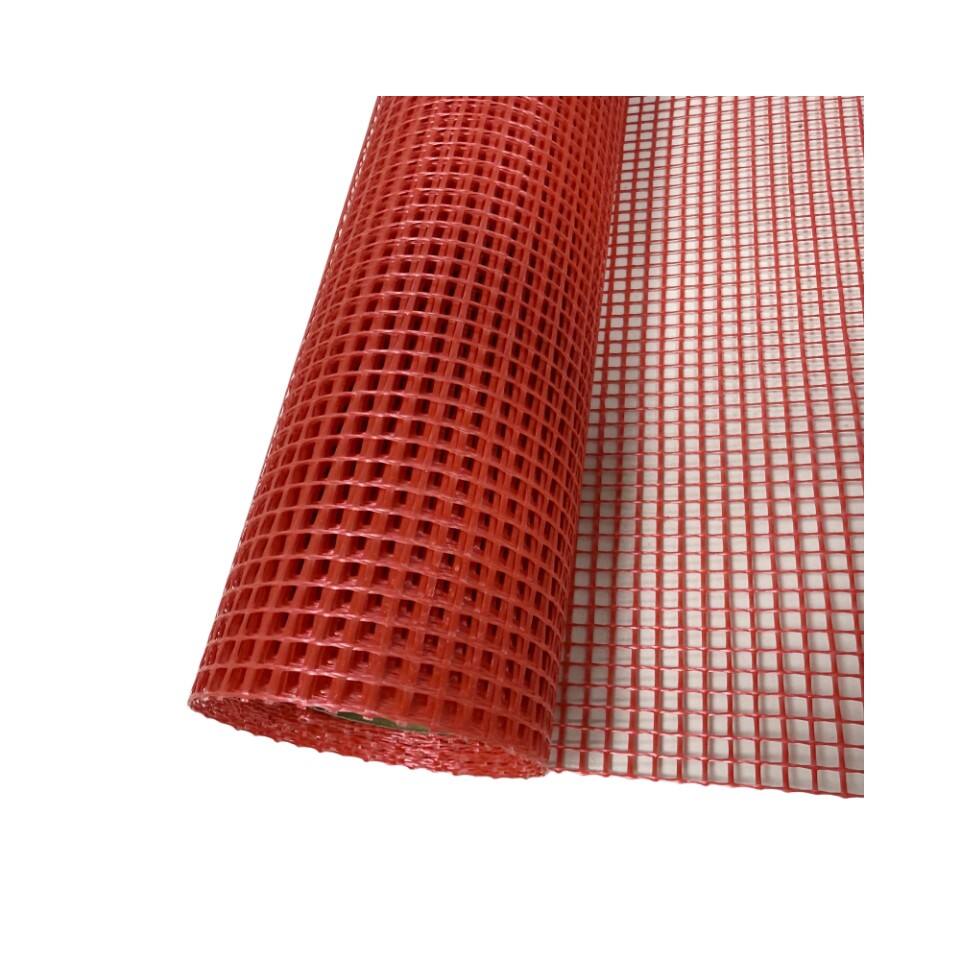

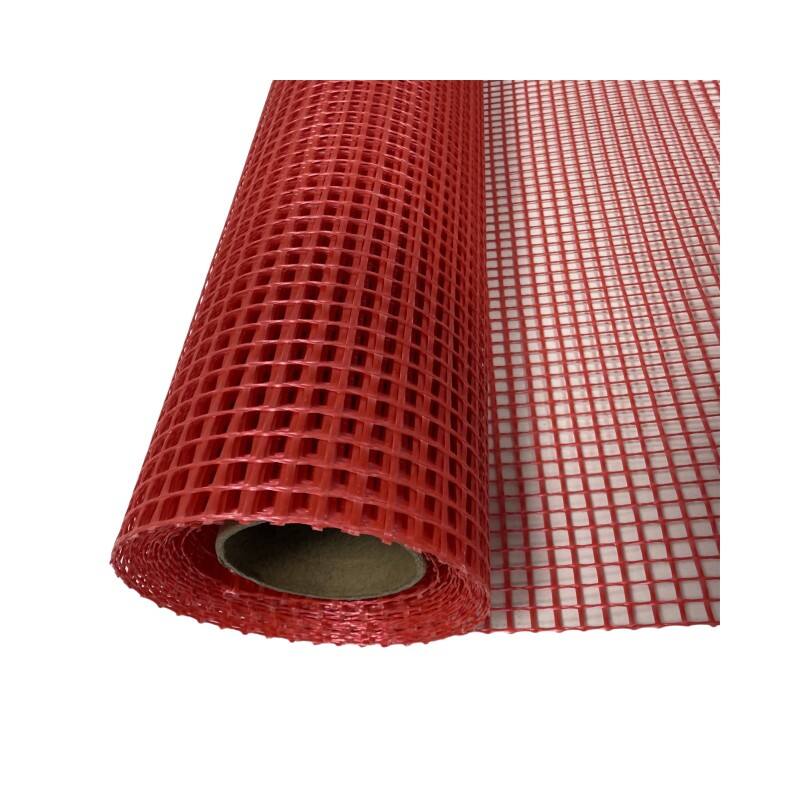

alkali resistant fiberglass mesh.jpg 160g fiberglass mesh.jpg

Product Code	Mesh Size(MM)	Area Weight g/m2	Width CM	Length M	Tensile Strength N/5cm		Alkali resistance % retention rate%
RDAR110-6x6	6X6	110	100	50	1200	1400	≧85	≧85
RDAR130-5X5	5X5	130	100	50	1800	1900	≧85	≧85
RDAR160-5X5	5X5M	160	100	50	2000	2000	≧85	≧85

External Insulation System (ETICS/EIFS)

Used to reinforced the crack resistance of insulation layers (such as EPS/XPS boards) to prevent cracking and falling off.
Used in thin plaster systems as a reinforcement layer for fiberglass mesh cloth.

Tile marble backing and waterproof layer reinforcement

As a reinforcement material in tile,marble adhesive or waterproof coating to improve crack resistance and impact resistance

Concrete reinforcement

Used for repairing and reinforcing concrete structures to prevent crack expansion.

Size: width 100cm. length 50 meter
Inner packing : plastic bag or shrink film
Outer packing : carton or pallet
