Alkaline-resistant Fiberglass Mesh is on the basis of fiberglass woven fabric, then coated by acrylic acid copolymer liquid.This is an ideal construction material with alkaline-resistance, high strength, excellent alkali and acid resistance, good cohesion, excellent in coating etc.

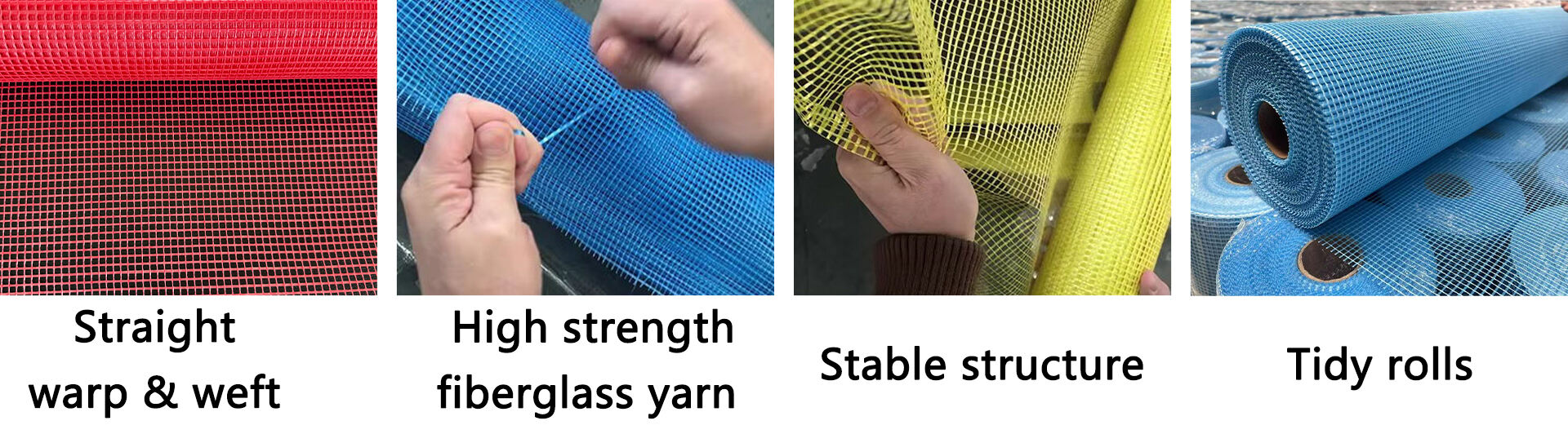

Alkaline-resistance. High strength. Excellent alkali. Acid resistance. Good cohesion. Excellent in coating.
| Weight | 45g/m²-300g/m² |
| Mesh size | 2.5×2.5mm, 3×3mm, 4×4mm, 5×5mm, 7×9mm, 10×10mm |

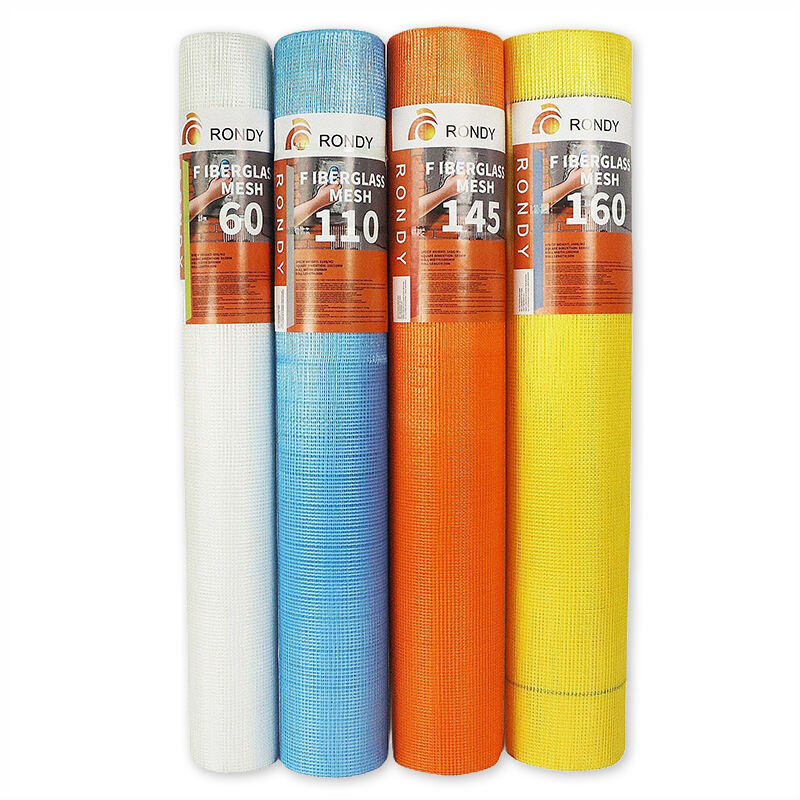

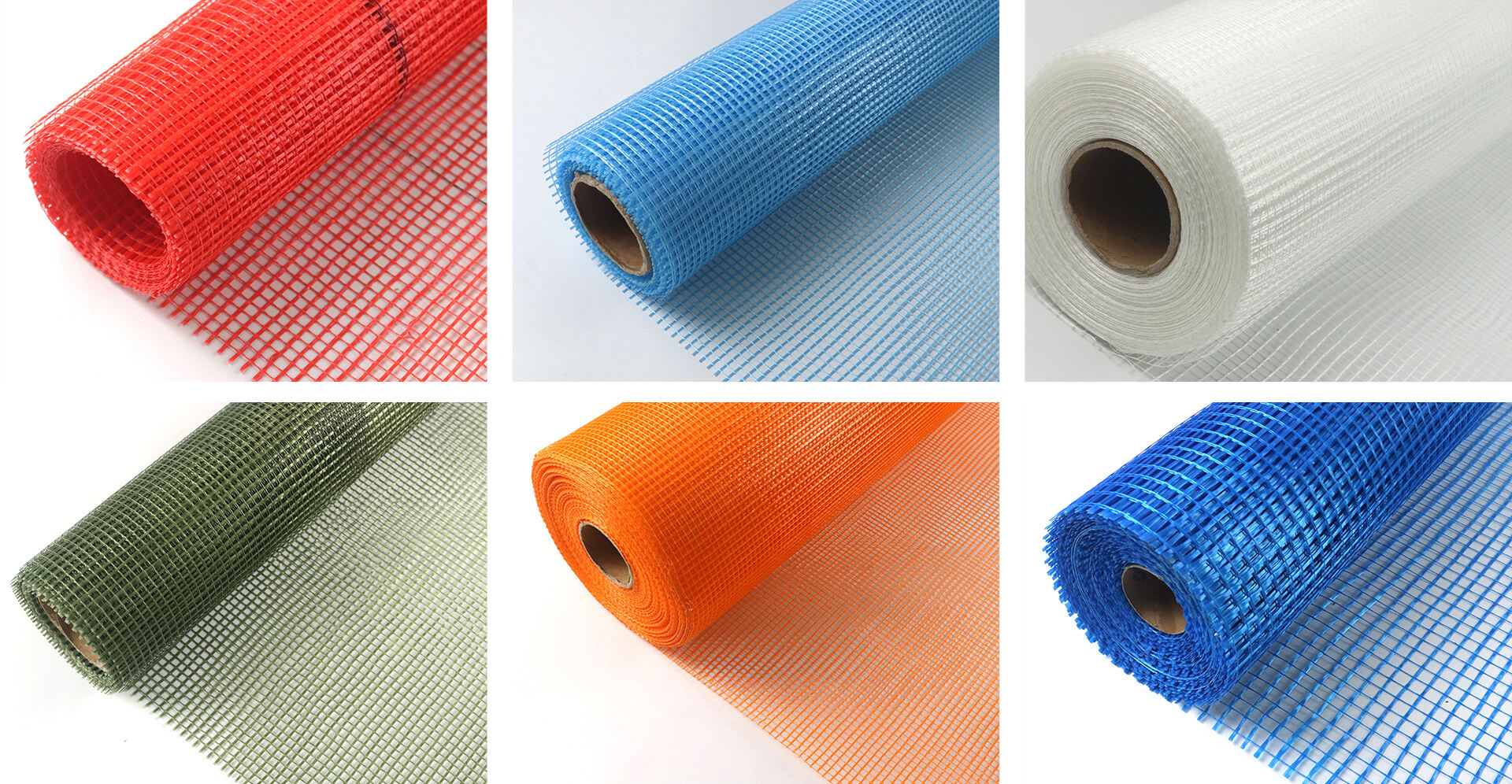

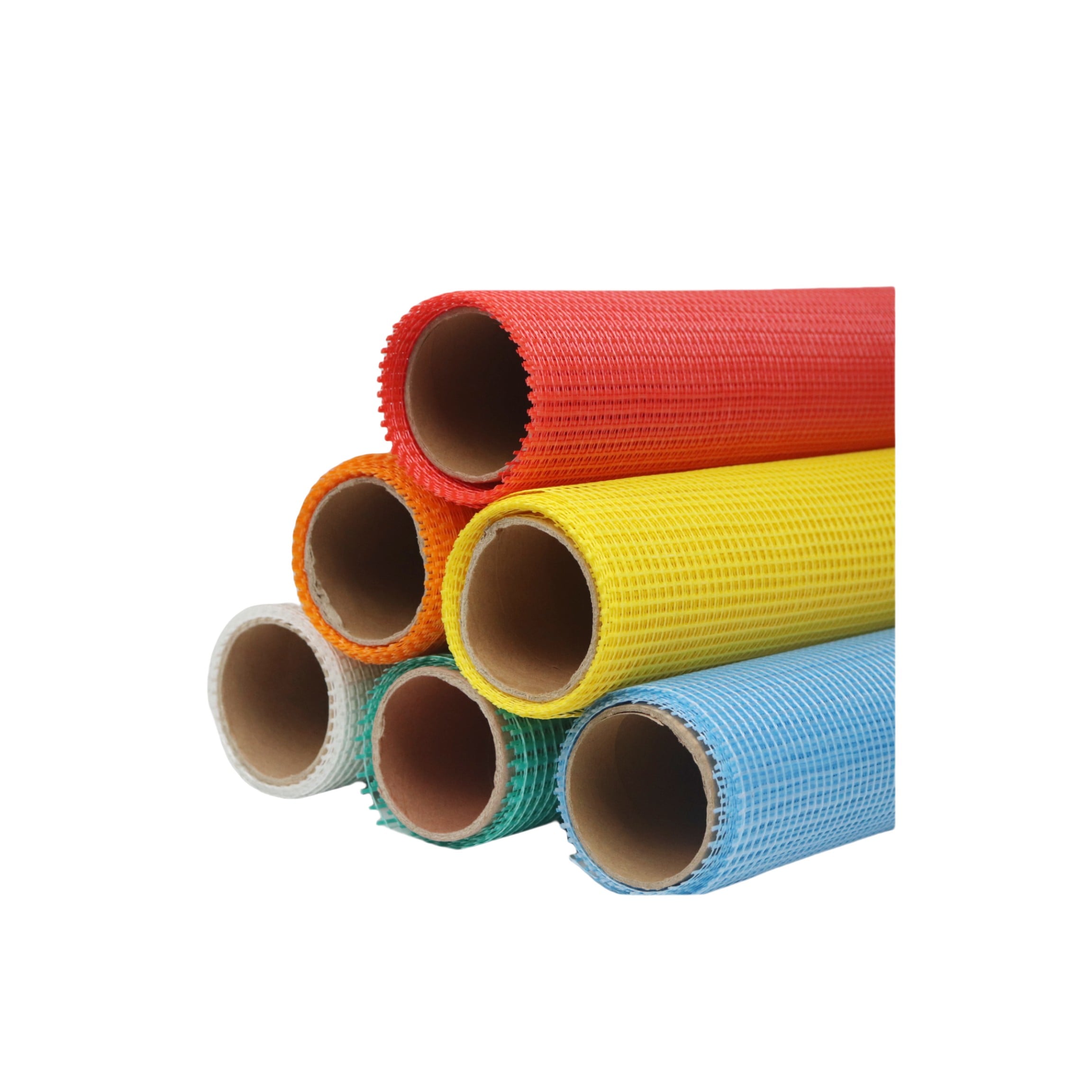

| Color | White(standard), Blue, Yellow, Green, Red, Orange |
| Width | 20cm-200cm |
| Length | 50m (standard ) max 400 meter one roll |
| Fire retardant | customized |
| Print logo on fiberglass mesh | customized |
| Term Number | Yarn(Tex) | Mesh Size(mm) | Density Count/25mm | Finished Weight g/m² | Tensile Strength N/5cm×20cm | ||||
|---|---|---|---|---|---|---|---|---|---|
| warp | weft | warp | weft | warp | weft | warp | weft | ||
| RD45 - 8×8 | 30×2 | 45 | 3 | 3 | 8 | 8 | 45 | 450 | 450 |
| RD60 - 8×8 | 30×2 | 67 | 3 | 3 | 8 | 8 | 60 | 600 | 600 |
| RD60 - 10×20 | 30×2 | 67 | 2.5 | 1.2 | 10 | 20 | 60 | 500 | 650 |
| RD80 - 20×20 | 67×2 | 200 | 1.2 | 1.2 | 20 | 20 | 80 | 650 | 650 |
| RD75 - 4×4 | 45×2 | 200 | 4 | 4 | 6 | 6 | 75 | 650 | 650 |
| RD75 - 5×5 | 45×2 | 200 | 5 | 5 | 5 | 5 | 75 | 550 | 850 |
| RD90 - 5×5 | 67×2 | 250 | 5 | 5 | 5 | 5 | 90 | 700 | 10500 |
| RD110 - 10×10 | 250×2 | 400 | 10 | 10 | 2.5 | 2.5 | 110 | 1250 | 1250 |
| RD125 - 5×5 | 134×2 | 250 | 5 | 5 | 5 | 5 | 125 | 1000 | 1300 |
| RD125 - 10×10 | 250×2 | 550 | 10 | 10 | 2.5 | 2.5 | 125 | 1250 | 1450 |
| RD145 - 5×5 | 134×2 | 350 | 5 | 5 | 5 | 5 | 145 | 1400 | 1500 |
| RD160 - 5×5 | 134×2 | 400 | 5 | 5 | 5 | 5 | 160 | 1450 | 1600 |
| RD160 - 4×4 | 134×2 | 300 | 4 | 4 | 6 | 6 | 160 | 1550 | 1650 |
| RD165 - 4×5 | 134×2 | 350 | 4 | 4 | 6 | 6 | 165 | 1650 | 1650 |
| RD200 - 4×5 | 200×2 | 600 | 4 | 5 | 6 | 5 | 200 | 1500 | 2200 |
| RD280 - 4×5 | 200×2 | 600 | 4 | 5 | 6 | 5 | 280 | 1900 | 2850 |
| RD300 - 4×5 | 200×2 | 700 | 4 | 5 | 6 | 5 | 300 | 2000 | 3000 |

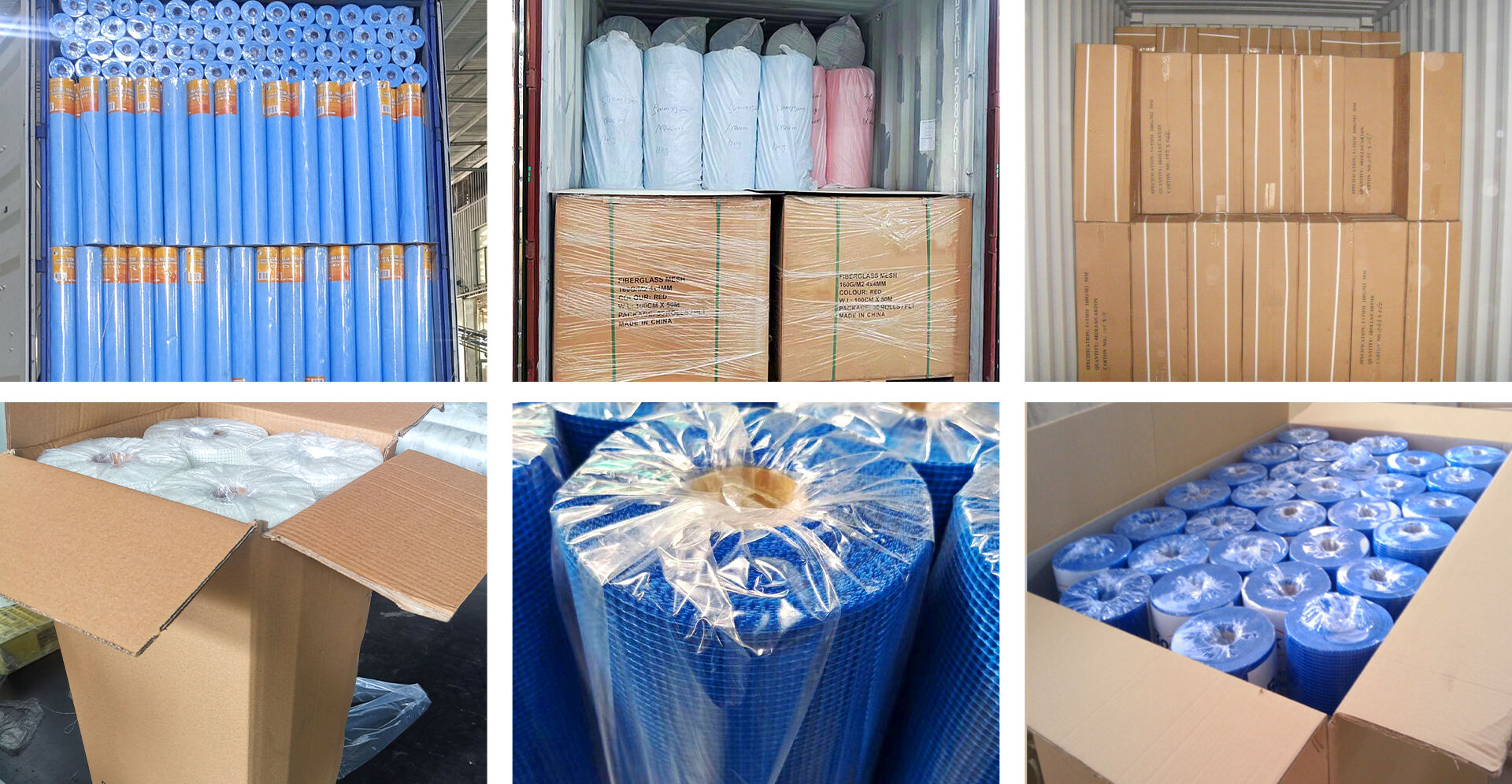

Inner packing: plastic bag or shrink film
Out packing:
carton: 4 rolls one carton
big carton on pallet: 30 rolls/pallet
woven bag: 2 rolls one bag
Quantity:1×20’GPload 40000m²-70000m²
1×40’HQ: 110000m²-130000m²
The package can be customized as per request .
