Hand lay-up FRP mouding
various sheets, panels, boat tubs, cooling tower, corrosion resistant, vehicles

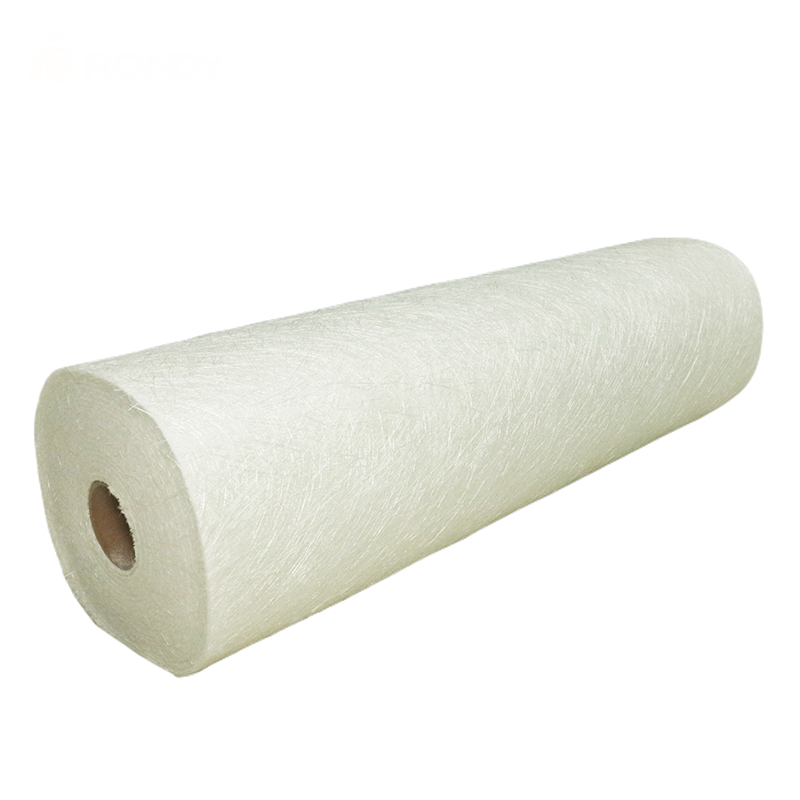

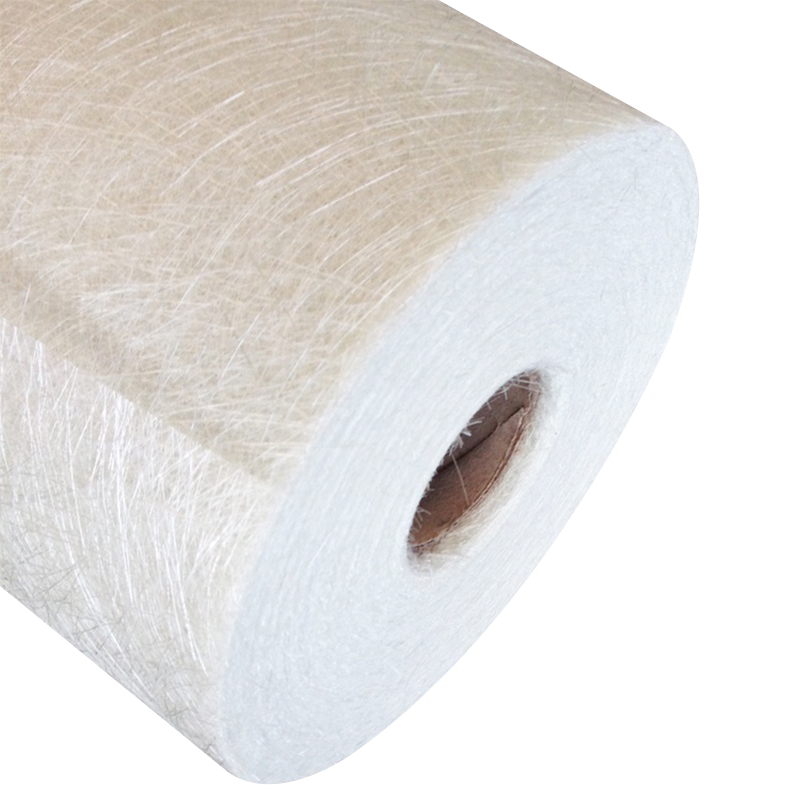

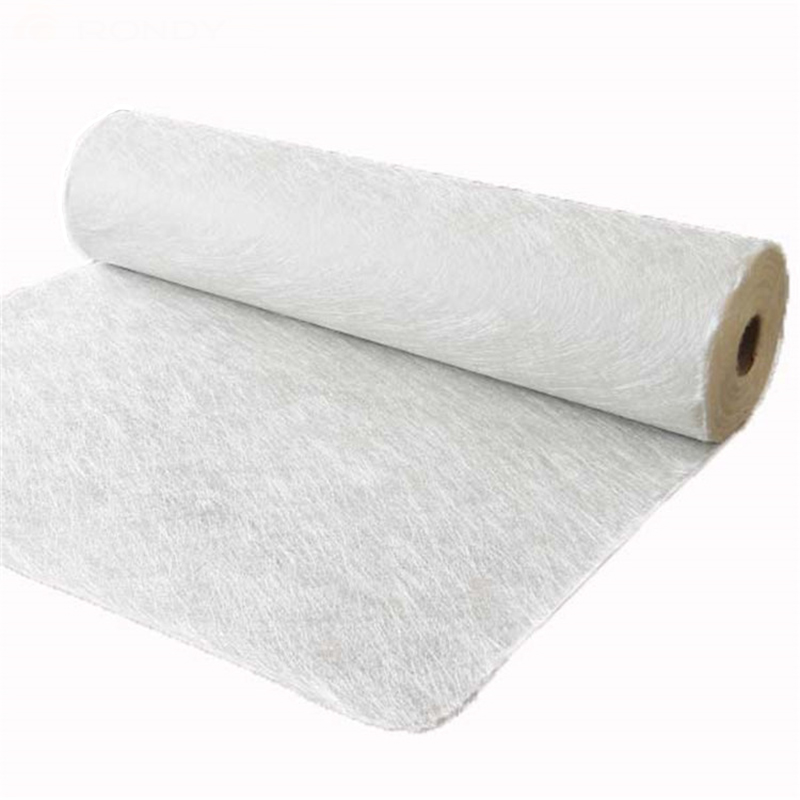

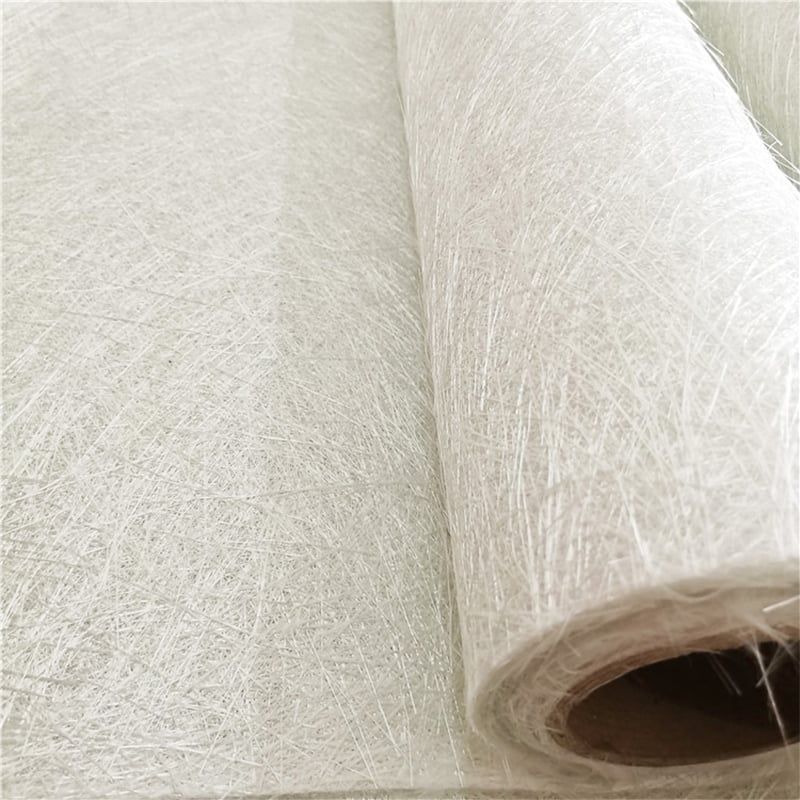

Fiberglass chopped strand mat is an non woven E fiberglass fabric manufactured by spreading continuous filament roving of 50mm in length randomly and uniformly in combination with polyester binder in power from or binder in emulsion form.
Hand lay-up FRP mouding
various sheets, panels, boat tubs, cooling tower, corrosion resistant, vehicles
Inner packing: plastic bag
Outer packing: carton , carton on pallet
Storage
Chopped strand mat should be stored in dry , cool,water proof area. It is recommended that the room temperature and humidity be always maintained at 15 ℃ to 35 ℃ and 35% to 65% respectively.
|
Powder |
Emulsion |
||||||
|
Item |
Tensile Strength (N) |
Loi content (%) |
Moisture |
Item |
Tensile Strength (N) |
Loi content (%) |
Moisture |
|
EMC 200 |
800-100 |
2.8-4.8 |
≤0.1 |
EMC 200 |
70-90 |
4.2-6.2 |
≤0.2 |
|
EMC 225 |
90-110 |
2.7-4.7 |
≤0.1 |
EMC 225 |
75-95 |
4.1-6.1 |
≤0.2 |
|
EMC 250 |
100-120 |
2.6-4.6 |
≤0.1 |
EMC 250 |
80-100 |
4.0-6.0 |
≤0.2 |
|
EMC 300 |
110-130 |
2.5-4.5 |
≤0.1 |
EMC 300 |
110-130 |
3.6-5.6 |
≤0.2 |
|
EMC 350 |
130-150 |
2.5-4.5 |
≤0.1 |
EMC 350 |
120-140 |
3.6-5.6 |
≤0.2 |
|
EMC 400 |
140-160 |
2.5-4.5 |
≤0.1 |
EMC 400 |
130-150 |
3.6-5.6 |
≤0.2 |
|
EMC 450 |
170-190 |
2.4-4.4 |
≤0.1 |
EMC 450 |
160-180 |
3.2-5.2 |
≤0.2 |
|
EMC 550 |
200-220 |
2.3-4.3 |
≤0.1 |
EMC 550 |
200-220 |
3.2-5.2 |
≤0.2 |
|
EMC 600 |
250-280 |
2.3-4.3 |
≤0.1 |
EMC 600 |
250-280 |
3.2-5.2 |
≤0.2 |
|
EMC 900 |
320-400 |
2.3-4.3 |
≤0.1 |
EMC 800 |
320-400 |
3.2-5.2 |
≤0.2 |
Roll Width: 200mm –260mm
Standard width: 750mm, 1040mm,1250mm,1270mm,1450mm,1520mm
Roll Weight: 28 kgs-55kgs
Standard roll weight: 30kgs,32kgs,40kgs,45kgs,48kgs
