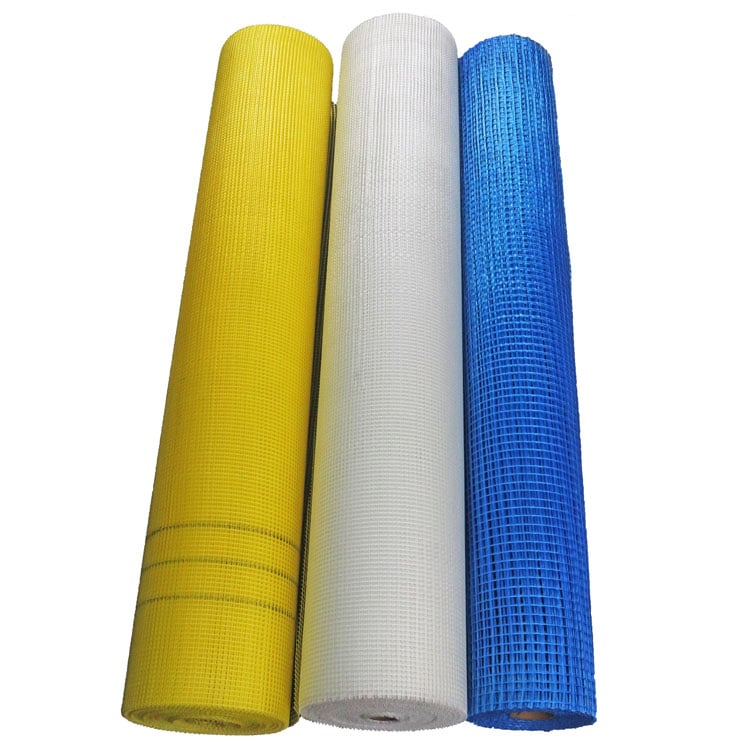

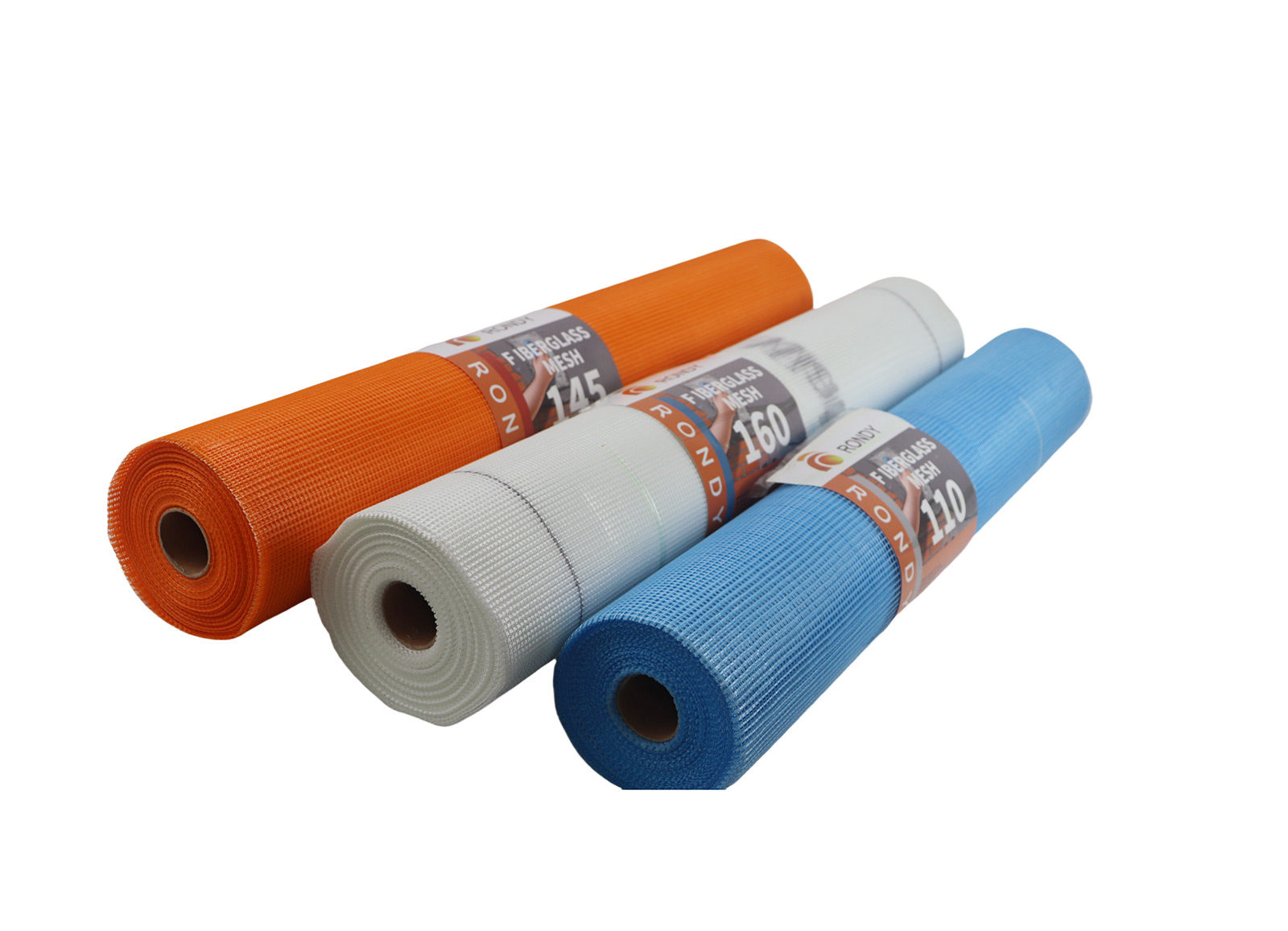

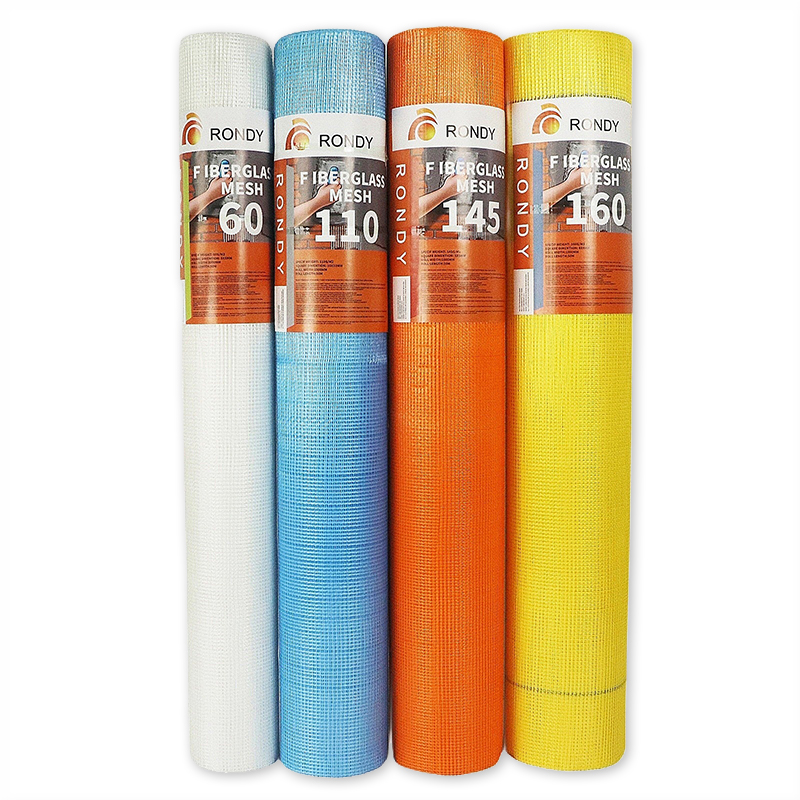

Fiberglass Mesh

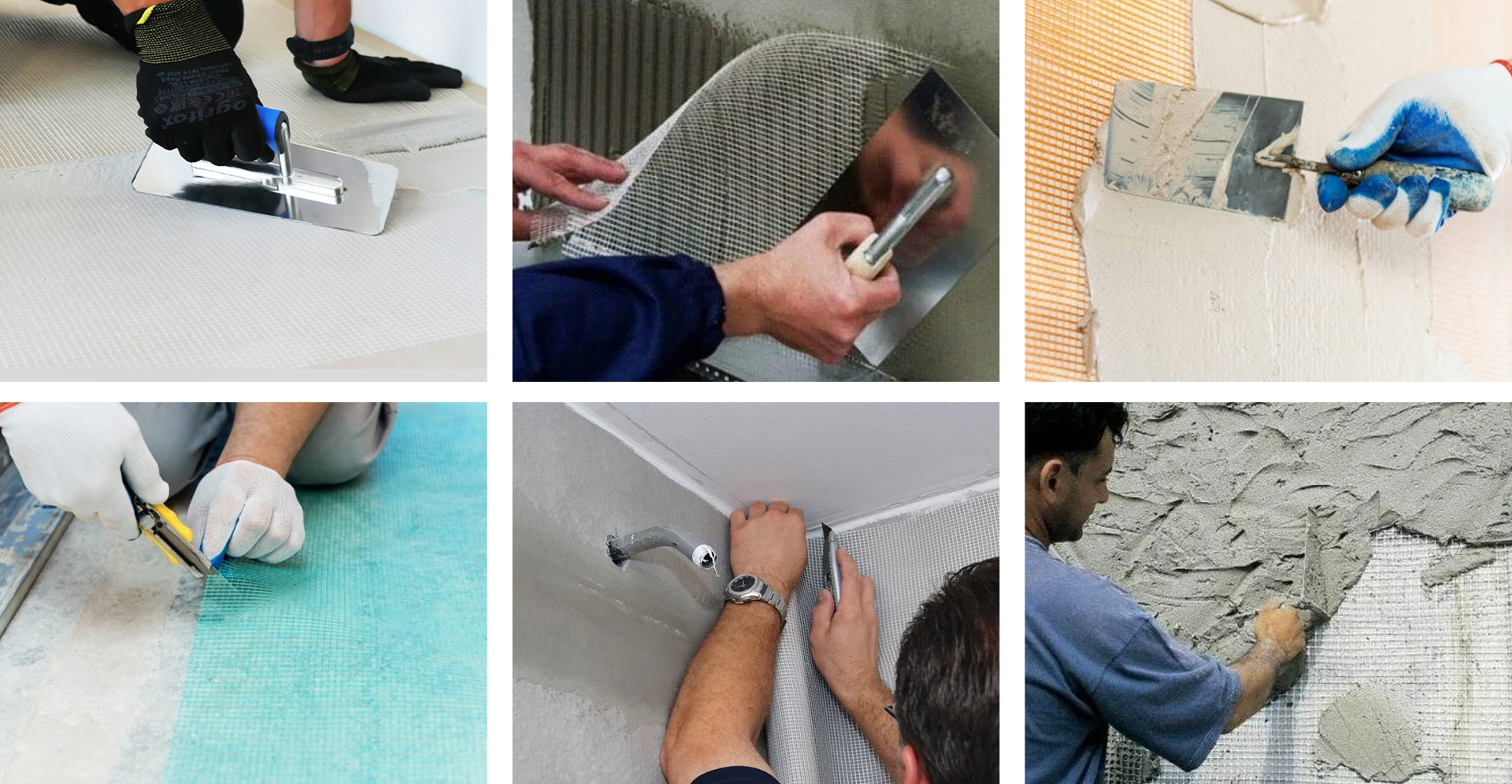

Wall reinforce.
Out-side wall heat insulation.
Roof waterproof. Reinforcement, plastic, bitumen, plaster, marble, mosaic, etc.

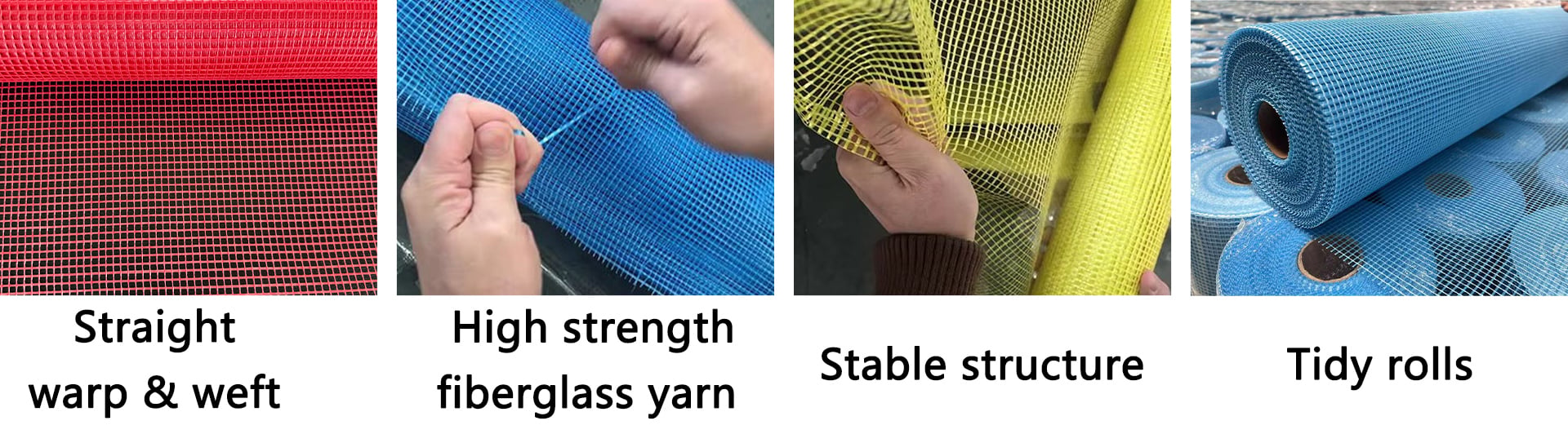

Alkaline-resistant Fiberglass Mesh is on the basis of C-glass or E-glass woven fabric, then coated by acrylic acid copolymer liquid.This is an ideal construction material with alkaline-resistance, high strength, excellent alkali and acid resistance, good cohesion, excellent in coating etc.




Alkaline-resistance.
High strength.
Excellent alkali.
Acid resistance.
Good cohesion.
Excellent in coating.


Weight	45g/m²-300g/m²
Mesh size	2.5×2.5mm, 3×3mm, 4×4mm, 5×5mm, 7×9mm, 10×10mm

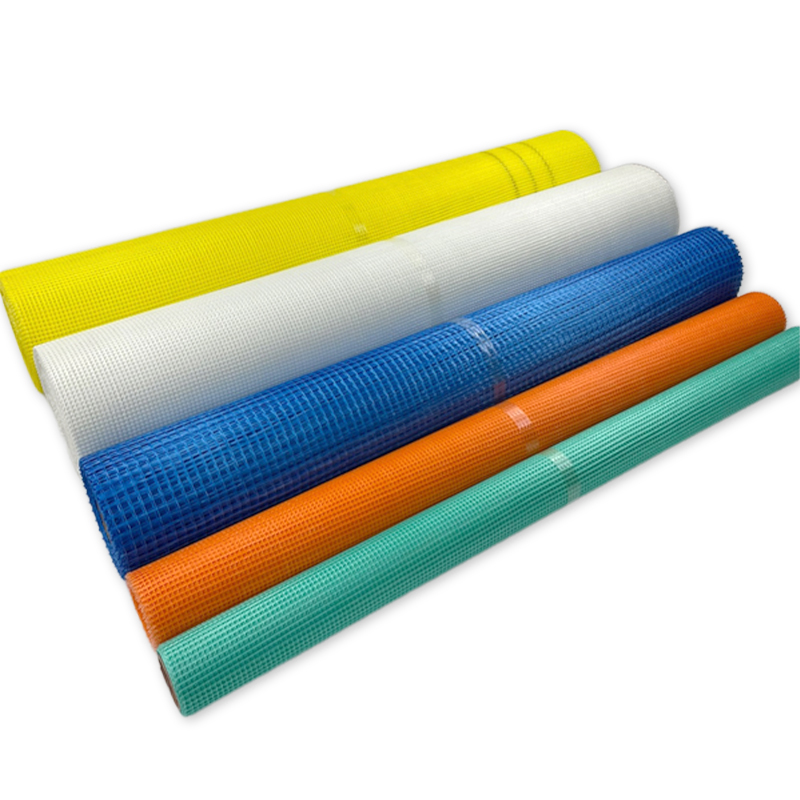

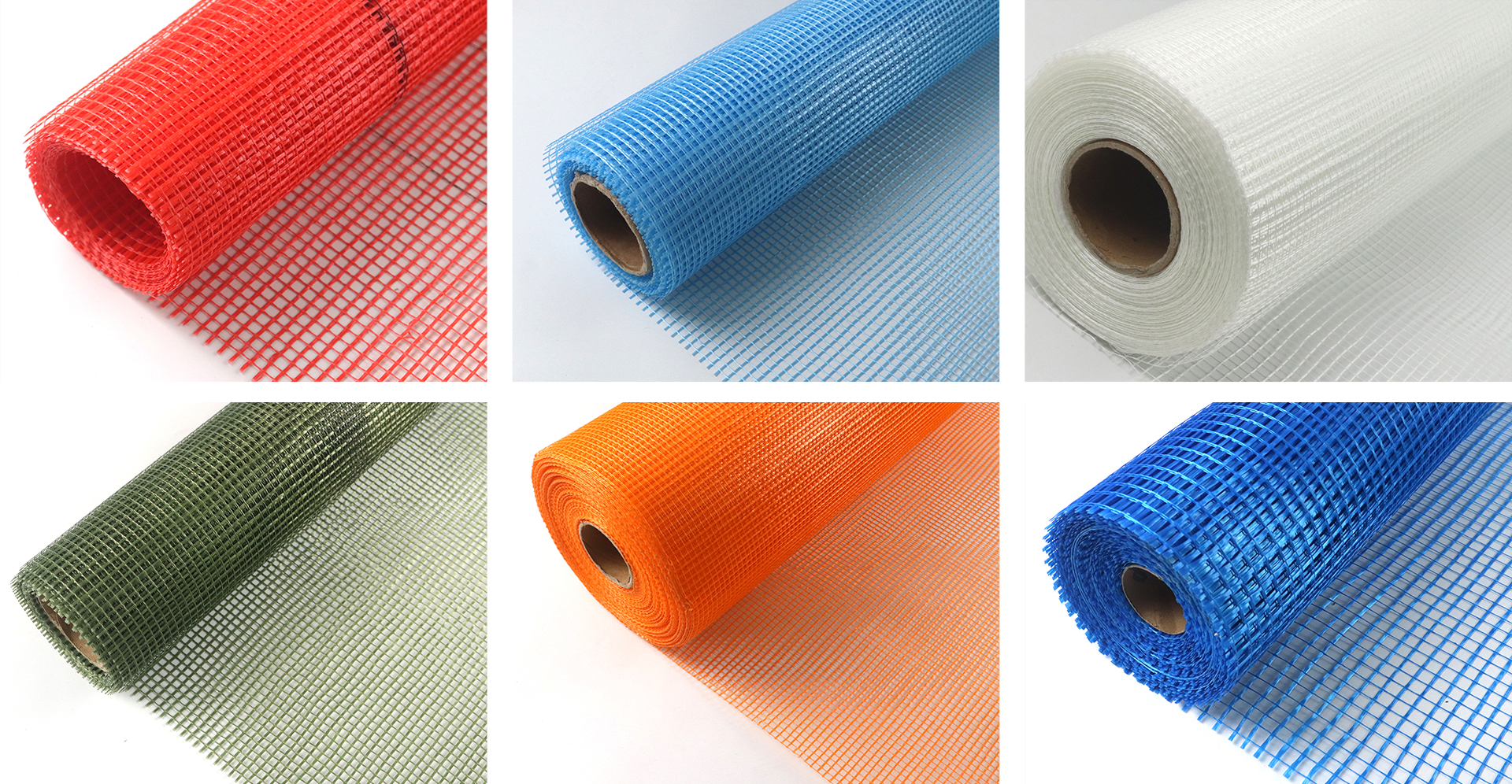

Color	White(standard), Blue, Yellow, Green, Red, Orange
Width	20cm-200cm

Term Number	Yarn(Tex)		Mesh Size(mm)		Density Count/25mm		Finished Weight g/m²	Tensile Strength N/5cm×20cm
Term Number	warp	weft	warp	weft	warp	weft	Finished Weight g/m²	warp	weft
RD45-8×8	30×2	45	3	3	8	8	45	450	450
RD60-8×8	30×2	67	3	3	8	8	60	600	600
RD60-10×20	30×2	67	2.5	1.2	10	20	60	500	650
RD80-20×20	67×2	200	1.2	1.2	20	20	80	650	650
RD75-4×4	45×2	200	4	4	6	6	75	650	650
RD75-5×5	45×2	200	5	5	5	5	75	550	850
RD90-5×5	67×2	250	5	5	5	5	90	700	10500
RD110-10×10	250×2	400	10	10	2.5	2.5	110	1250	1250
RD125-5×5	134×2	250	5	5	5	5	125	1000	1300
RD125-10×10	250×2	550	10	10	2.5	2.5	125	1250	1450
RD145-5×5	134×2	350	5	5	5	5	145	1400	1500
RD160-5×5	134×2	400	5	5	5	5	160	1450	1600
RD160-4×4	134×2	300	4	4	6	6	160	1550	1650
RD165-4×5	134×2	350	4	4	6	6	165	1650	1650
RD200-4×5	200×2	600	4	5	6	5	200	1500	2200
RD280-4×5	200×2	600	4	5	6	5	280	1900	2850
RD300-4×5	200×2	700	4	5	6	5	300	2000	3000
