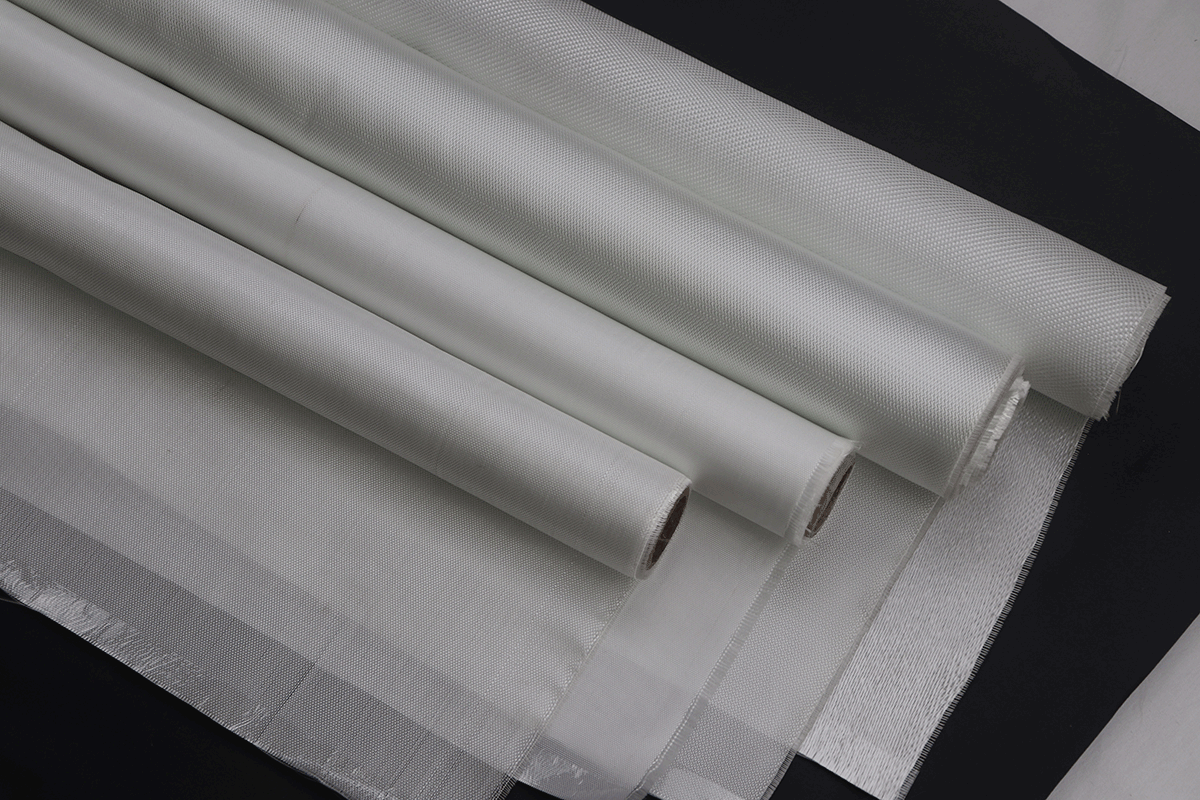

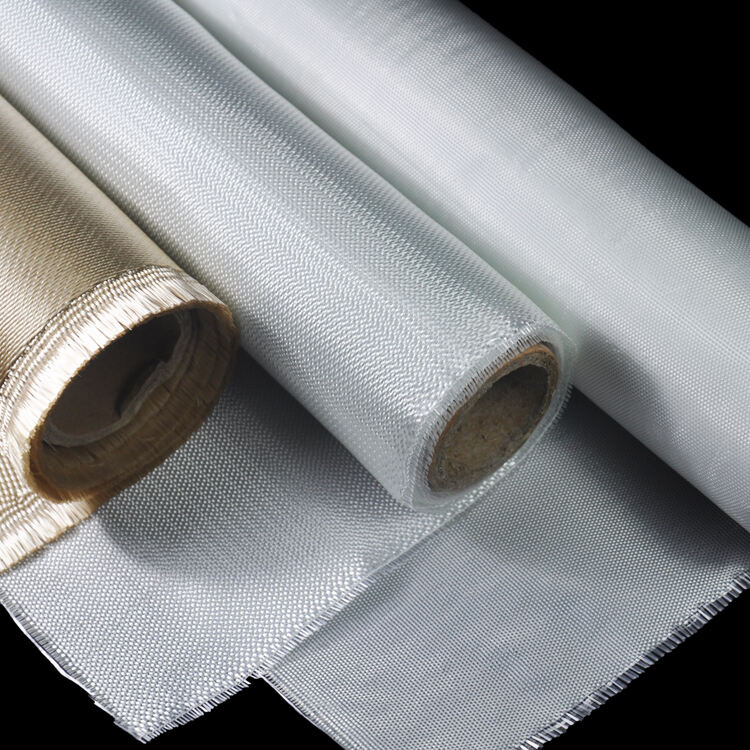

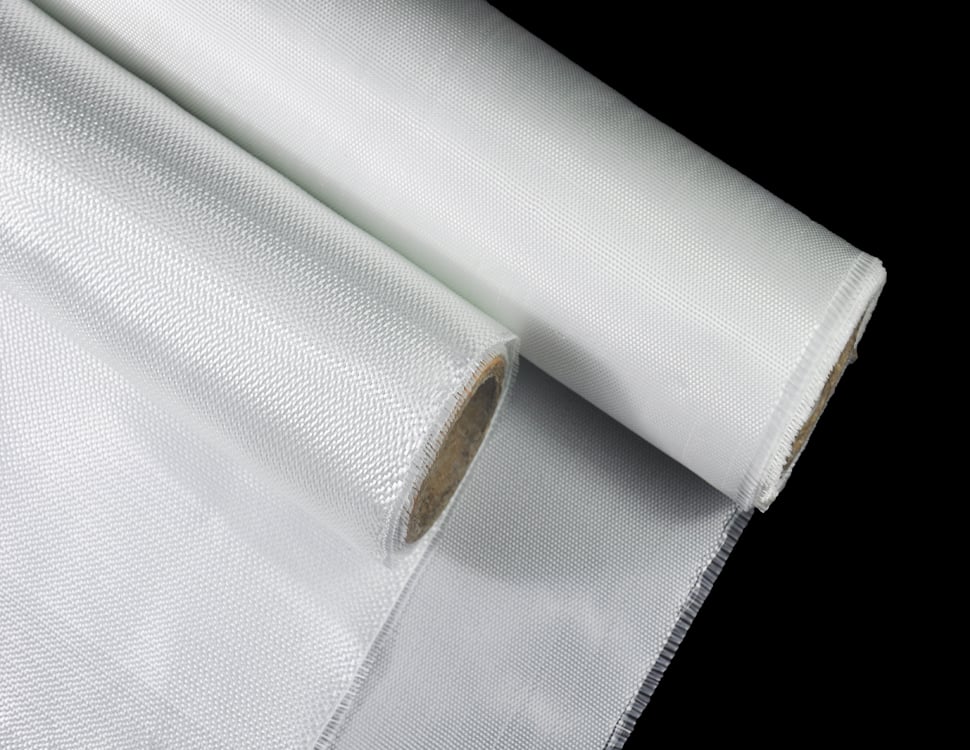

Fiberglass Cloth

- Code: RD3732, RD3784(HT800), RD3788

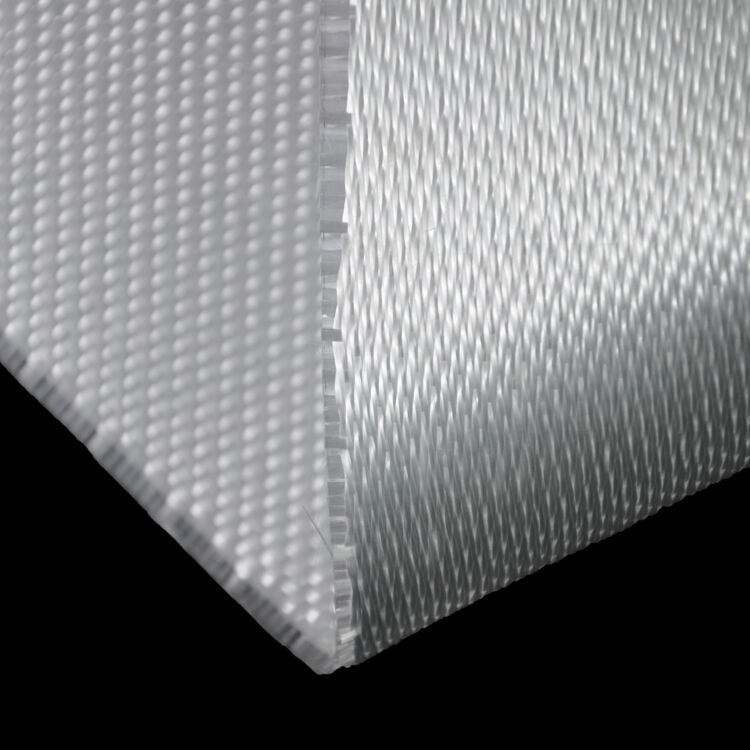

- Weave: Twill, Satin, Satin
- Yarn(Tex):
-- Warp: 33Tex/4, 33Tex/4, 33Tex/6
-- Weft: 33Tex/6, 33Tex/4, 33Tex/6
- Thread count:
-- Warp: 18/cm
-- weft: 10/cm, 11/cm, 13/cm
- Thickness: 0.45mm(±0.03), 1.0mm(±0.03), 1.7mm(±0.15)
- Cloth Welght: 430g/m2, 840g/m2, 1650g/m2
- Color: White/golden

Fiberglass Cloth is by far most commonly used fiberglass insulation fire blanket in the market.It's usage spill over from the conventional ship and marine repair to oil and gas, petrochemical and metal construction industries. Fiberglass cloth is effectively used to shield against moderate to heavy welding sparks. it is not only can provide protection from spatters, sparks, heat treatingsand blating and molten metals, but also insulate rays to establish a safety, cleanand normative environment workaround during welding,cutting,sand blasting,heat treating It is s piece of safety equipment designed to protect people ,equipment, environment and other valuable items. lt can be used as base materials for coating like silicone, PVC,PU,Acrylic,PTFE ,etc.

1. High Strength , Lightweight,higher tensile strength than many metals

2. High Temperature ,Fire Resistance, withstand 300~550°C for a long timec, It is non-flammable and non-combustible, and meets fire safety standards (such as EN1869,NFPA701,UL94,ANSI/FM4950).

3. It has excellent corrosion resistance to acids, alkalis, salts, organic solvents, etc., and is suitable for chemical equipment, tank linings, etc.It will not rust and is more suitable for humid or corrosive environments (such as marine engineering) than metals.

4.High resistivity, suitable for electrical insulation materials such as PCB substrates, motor insulation layers, transformer isolation, etc.

5. The thermal expansion coefficient is low, and it is not easy to deform at high temperatures. It is suitable for precision instruments, electronic components, etc.It can maintain stable shape under extreme temperature changes.

6. Flexibility & processability.It can be cut, sewn, laminated, and coated with resin (such as epoxy resin, polyester resin) to make composite materials (FRP).

7. Waterproof & moisture-proof

8. Environmental protection & durability

Code		RD3732	RD3784(HT800)	RD3788
Weave		Twill	Satin	Satin
Yarn(Tex)	Warp	33Tex/4	33Tex/4	33Tex/6
Yarn(Tex)	Weft	33Tex/6	33Tex/4	33Tex/6
Thread count	Warp	18/cm	18/cm	18/cm
Thread count	weft	10/cm	11/cm	13/cm
Thickness		0.45mm(±0.03)	1.0mm(±0.03)	1.7mm(±0.15)
Cloth Welght		430g/m2	840g/m2	1650g/m2
Color		White/golden	White/golden	White/golden
Service Temperature		550℃	550℃	550℃
Size		1.0x50m/1.5x50m	1.0x50m/1.5x50m	1.0x50m
Cu^ng Size (M)		1X1M,1.2X1.2M, 1.2X1.8M, 1.8X1.8M	Made to order	Made to order
