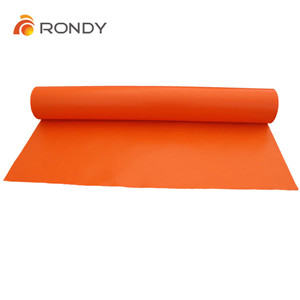

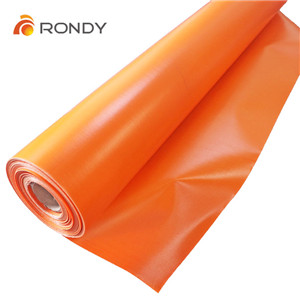

PVC Coated Fiberglass Fabric

PVC coated fiberglass faric Protection fabric for Extreme Environments: Oil & Gas, Welding, and Petrochemical Safety

PVC-coated fiberglass fabric is an advanced industrial textile engineered for superior resistance to extreme heat, sparks, and molten metal splatter. It effectively blocks hazardous substances, making it an ideal core material for high-performance welding blankets, safety curtains, and protective screens. With exceptional durability and safety, it ensures personnel protection and safeguards valuable equipment against fire hazards in demanding environments.

Due to its cost-effectiveness compared to other coated fiberglass fabrics—such as silicone, PU, or acrylic coatings—PVC-coated fiberglass welding blankets have become the preferred fire safety solution across heavy-duty industrial sectors including shipbuilding, metal smelting, and oil extraction and refining.

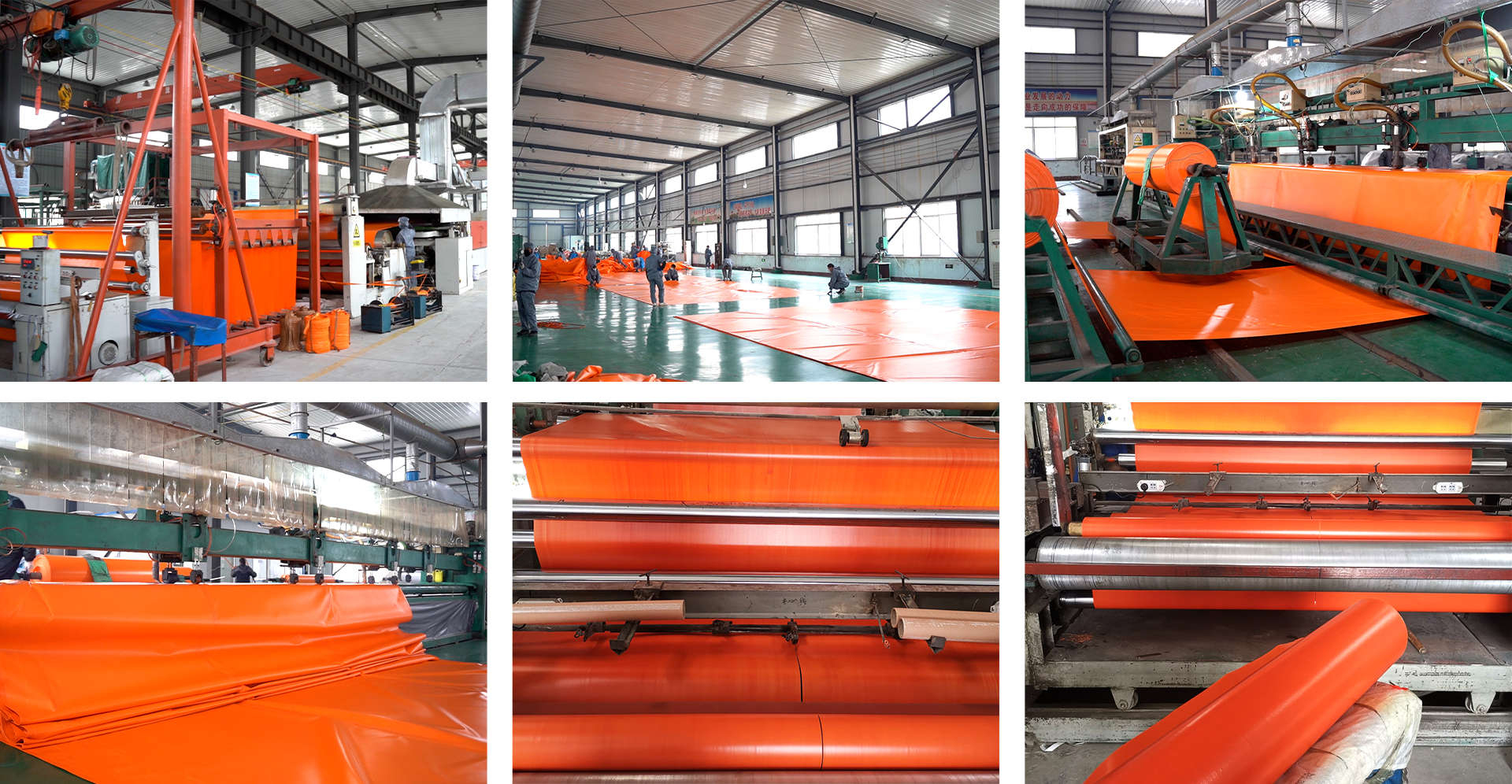

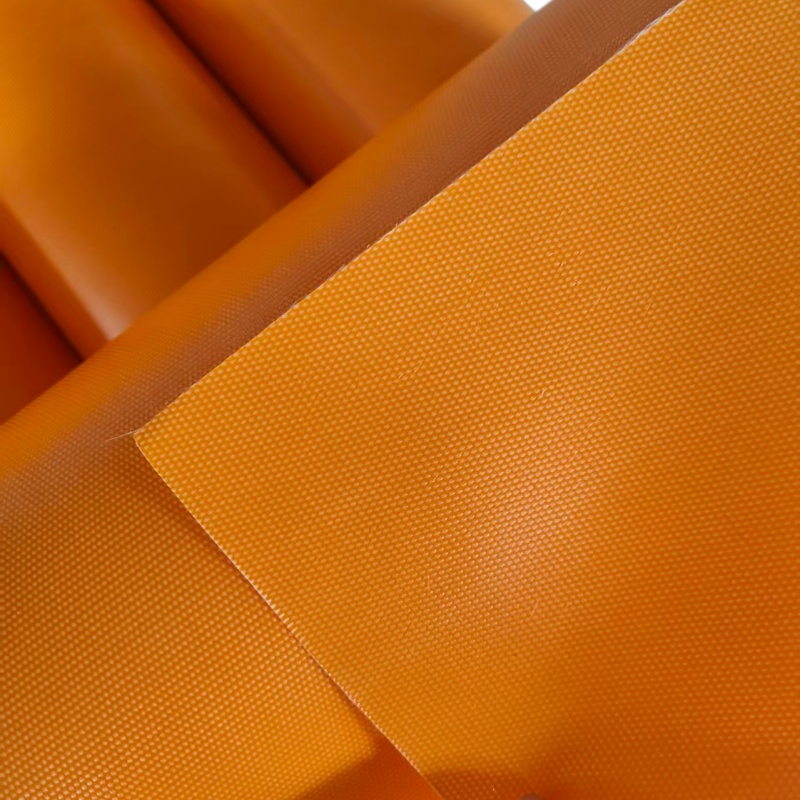

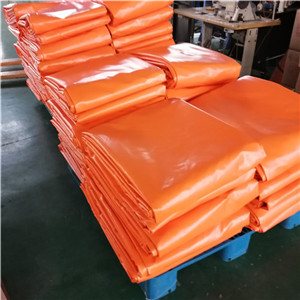

PVC玻璃纤维涂层布-细节.jpg PVC玻璃纤维涂层布-工厂.jpg

✅ Superior Flame Retardancy
- The fabric is inherently non-combustible. It self-extinguishes when the ignition source is removed, crucial for preventing fire spread in areas with flammable hydrocarbons.
✅ Exceptional High-Temperature Resistance
- Consistently performs in temperatures up to 1000°F (538°C) and can withstand brief exposures to even higher heat, ideal for welding spatter and hot surfaces in refineries.
✅ Durable & Tear-Resistant
- The woven fiberglass core provides exceptional tensile strength, resisting rips and tears from sharp edges, tools, and abrasive environments on drilling rigs and production platforms.
✅ Water, Oil & Chemical Resistant
- The durable PVC coating repels water, oils, greases, and many common chemicals, protecting against corrosion and degradation in harsh petrochemical settings.
✅ Flexible & Easy to Handle
- Remains flexible at a wide range of temperatures, making it easy to drape, wrap, and secure around complex equipment, pipes, and valves.

PARAMETER	SPECIFICATION
Base Material	Woven Fiberglass (E-Glass)
Coating	Polyvinyl Chloride (PVC)
Standard Color	Orange, Silver/Gray, Blue, Customizable
Temperature Resistance	Up to 1000°F (538°C) Continuous
Weight	Approx. 24 - 48 oz/sq yd (Customizable)
Thickness	0.5 mm - 1.2 mm (Customizable)
Tensile Strength	High (Warp & Weft)
Chemical Resistance	Excellent resistance to water, oils, acids, and alkalis

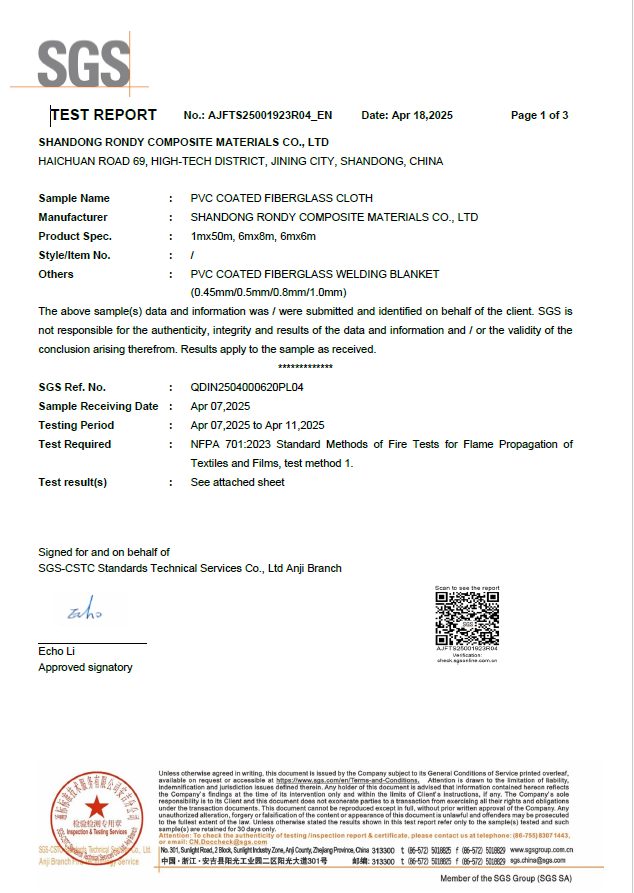

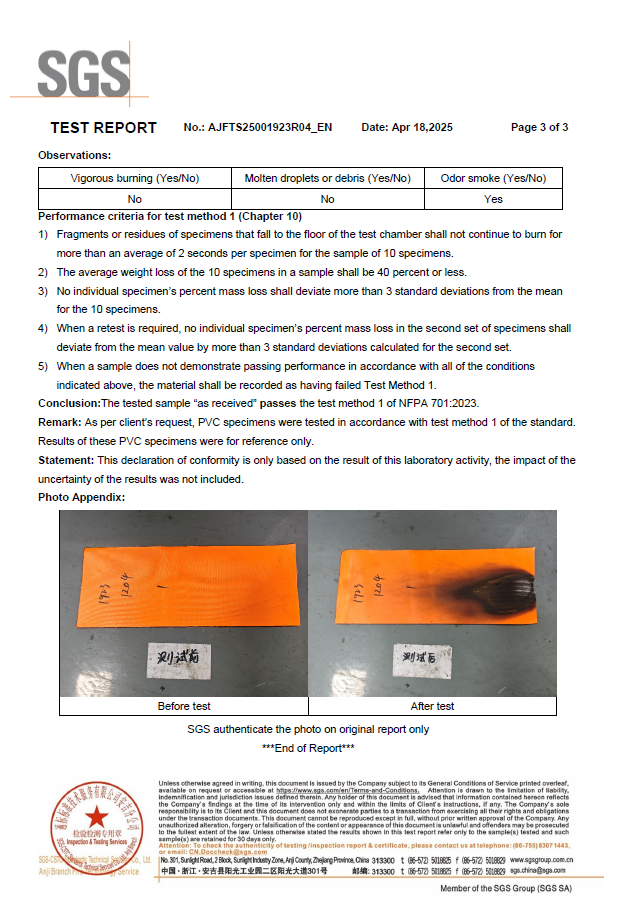

Certifications	Complies with NFPA 701

The following are our standard specifications and other specifications can be customized.

Product Code	Weave	Finish	PVC g/m2	Weight (±5%)		Thickness(±10%)		Color
Product Code	Weave	Finish	PVC g/m2	g/m2	Oz/yd2	mm	inch	Color
RD200PC	Plain	PVC	150	350	10	0.2	0.008	Orange/Red
RD280PC	Plain	PVC	220	500	15	0.32	0.013	Orange/Grey
RD430PC	Twill	PVC	200	620	18	0.4	0.015	Orange/Grey
RD666PC	8H Sa^n	PVC	400	1000	30	0.7	0.027	Orange/Grey
RD840PC	8H Sa^n	PVC	400	1200	35	0.8	0.03	Orange/Grey

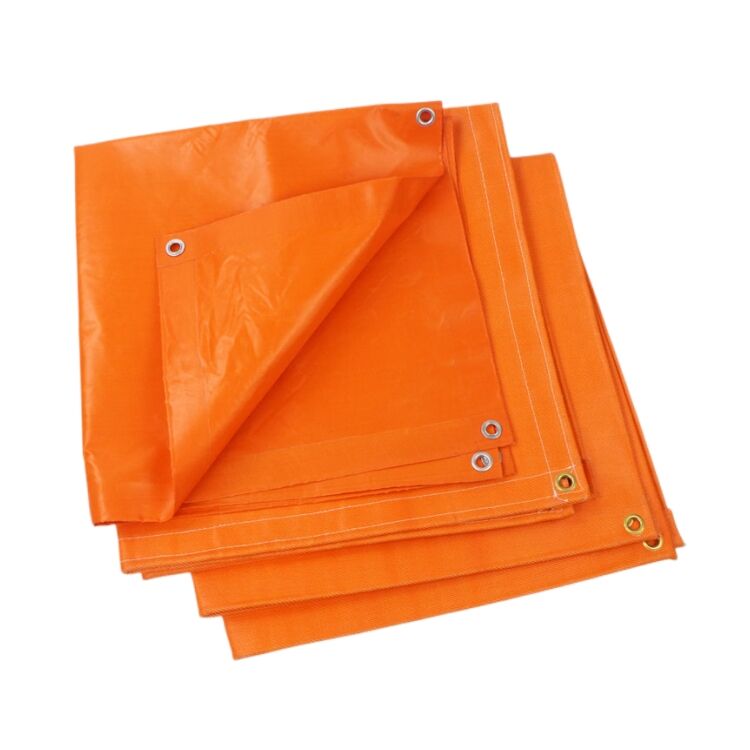

Welding & Hot Work Protection (Welding Blankets / Curtains)
- Establish safe zones for welding, grinding, and cutting operations. Effectively contain sparks, spatter, and UV radiation to safeguard personnel and prevent fires on sensitive equipment and surfaces such as decks.
Oil & Gas Exploration & Production (Drilling Rigs, Platforms)
- Equipment Covers: Shield sensitive machinery, pumps, and valves from environmental elements, sparks, and corrosion.
- Heat Shields: Wrap around hot pipes, exhaust systems, and machinery to prevent accidental burns and protect adjacent components.
- Containment Curtains: Serve as temporary enclosures during maintenance activities or to control debris and spills.
Petrochemical & Refinery Safety
- Fire Blankets: Critical emergency tools for extinguishing small fires, including those involving hydrocarbons.
- Personnel Protection: Used as aprons, sleeves, and protective screens for workers exposed to high-temperature processes.
- Drop Cloths & Covers: Protect critical areas and flooring from hot work, chemical drips, and paint during maintenance turnarounds.
Shipyard Applications
- Welding and Cutting Protection: Deploy as welding blankets and curtains to create safe work areas, containing sparks and molten metal splatter during ship construction and repair.
- Fire Safety Covers: Protect decks, equipment, and structural components from fire hazards caused by hot work.
- Equipment Shielding: Cover sensitive machinery and electrical systems from sparks, weather, and corrosion in harsh marine environments.
General Industrial Safety
- Heat-resistant curtains for factory partitions, protective covers for electrical insulation, and barriers for thermal and spark containment across various industrial settings.
