High Silica Cloth

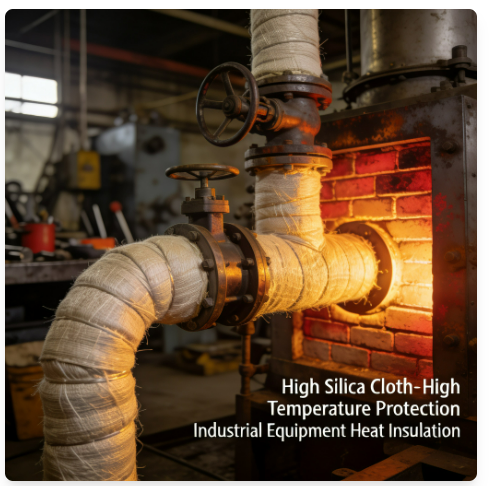

Thermal insulation of industrial furnaces, foundries and high temperature equipment.

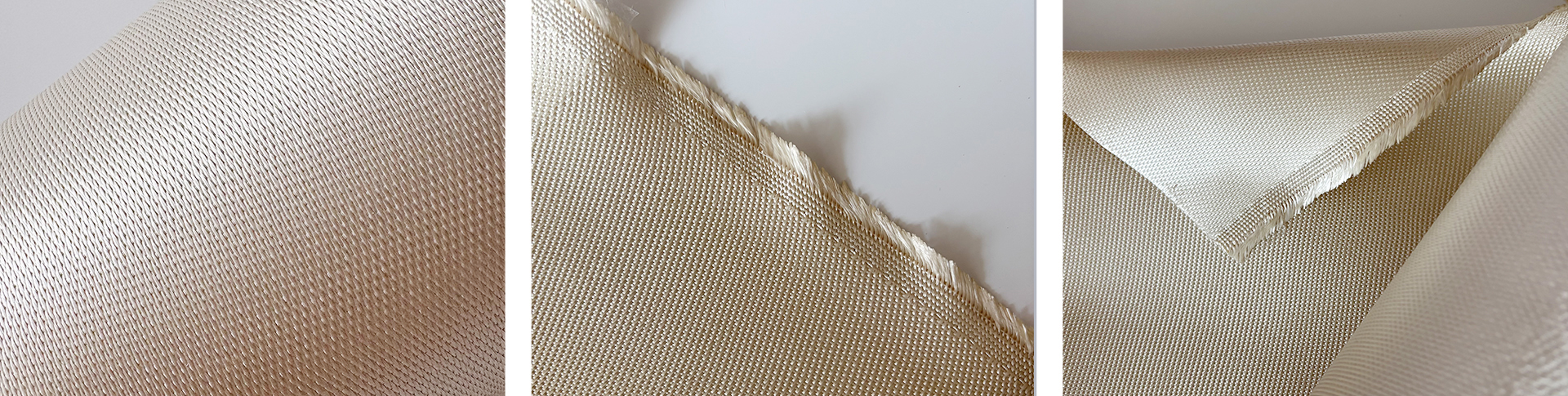

High Silica Fiberglass Fabric is a fiberglass material characterized by a high silica content. It is made from glass fibers with a high concentration of silica, which provides excellent heat resistance. High Silica Fiberglass is known for its ability to withstand extremely high temperatures, making it ideal for applications where heat and fire resistance are critical.


Low thermal conductivity, good chemical stability, good electrical insulation, low thermal shrinkage, asbestos-free product, no pollution, good process performance.

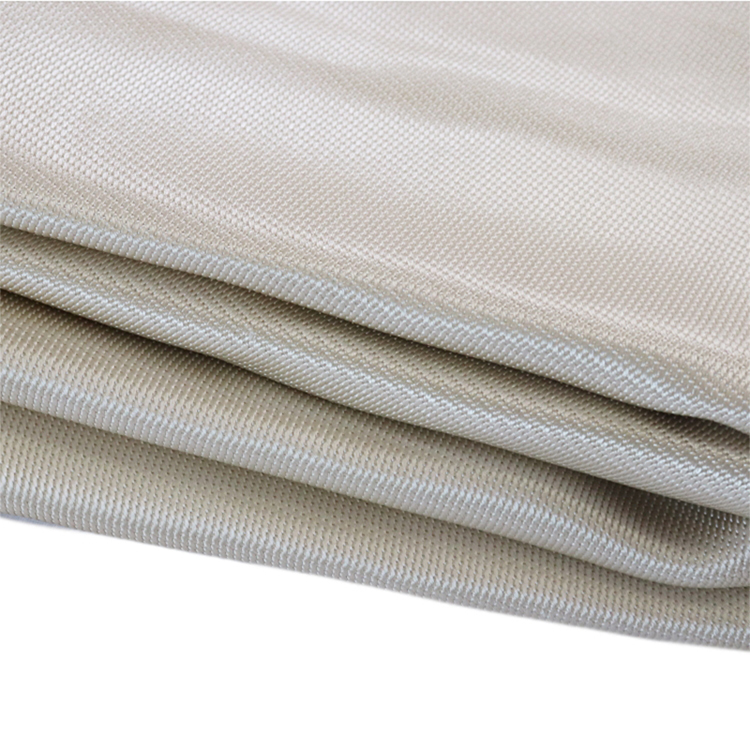

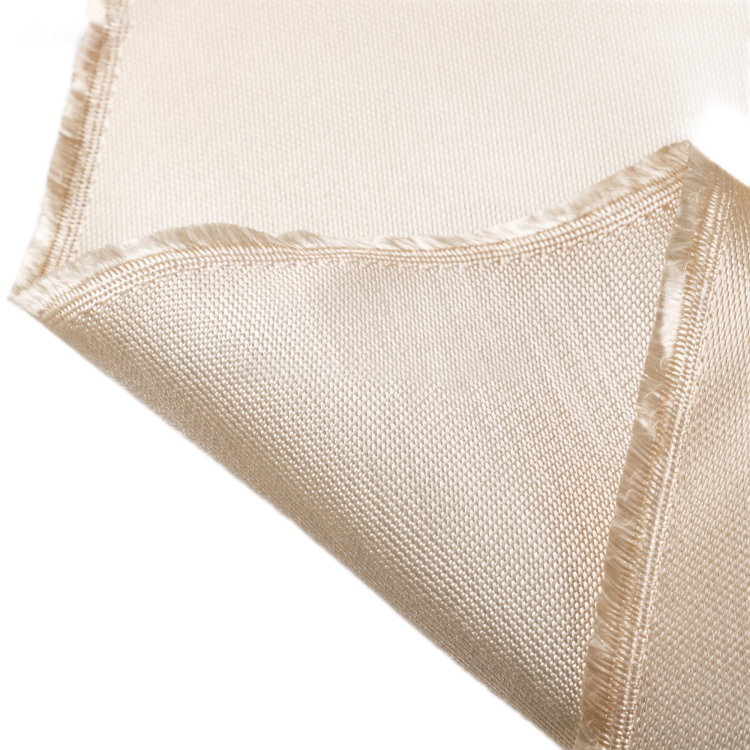

未标题-1_0000_高硅氧 (22).jpg 未标题-1_0001_高硅氧 (20).jpg

Burn Loss : 3.0% Max.
Working Temperature : 1100 °C.
Instantaneous temperature : 1700 °C.
15minute temperature : 1400 °C.
Standard Width : 920mm(36inch),1000mm(40inch)

Product Code	Weave	Coating	Sio2 %	Weight		Thickness
Product Code	Weave	Coating	Sio2 %	g/m²	Oz/yd²	mm	inch
RD600HS	8H Satin	/	96	612	18	0.65	0.025
RD880HS	8H Satin	/	96	880	26	1	0.04
RD1200HS	12H Satin	/	96	1200	36	1.3	0.05
RD600HS-A	8H Satin	Vermiculite	96	660	20	0.7	0.028
RD1200HS-A	12H Satin	Vermiculite	96	1250	37	1.5	0.05
RD600HS-S	8H Satin	Silicone	96	810	24	0.7	0.028
RD1200HS-S	12H Satin	Silicone	96	1400	41	1.35	0.05
