Exploring the Strength of fiberglass chopped strand mat

Composition and Structural Characteristics of Fiberglass Chopped Strand Mat

Composition and Materials of Chopped Strand Mat

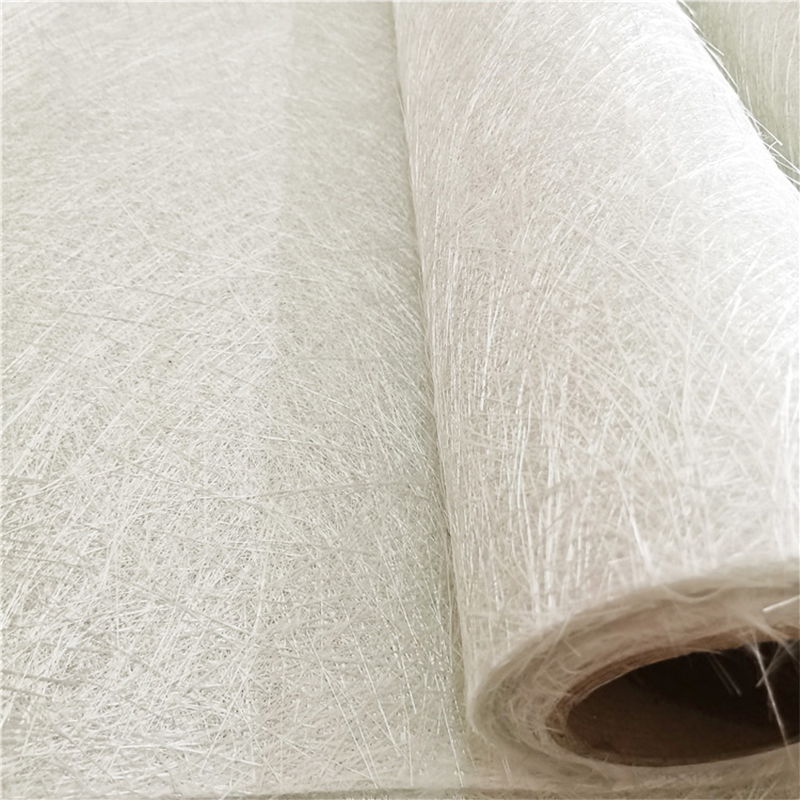

Fiberglass chopped strand mat, or CSM for short, is made by combining E-glass fibers these are basically silica mixed with calcium and aluminum oxides along with various polymeric binders like polyester or styrene. What we get is a kind of nonwoven fabric structure where the fiber strands are typically around one to two inches long, creating pretty consistent reinforcement throughout the material. When it comes time to laminate, the binder actually dissolves into the resin. This helps different layers stick together really well without compromising on chemical stability, which is why manufacturers rely on this material so much for their projects.

Random Fiber Orientation and Multidirectional Strength

When fibers are arranged isotropically in CSM material, they spread out loads evenly in every direction. Research published in the Naval Architecture Review back in 2023 showed something interesting too CSM reaches around 94% efficiency when it comes to tension from all angles, which is pretty impressive compared to regular woven fabrics. The even distribution means there aren't weak spots pointing in specific directions. That's why this material works so well for things like boat hulls and pressurized containers where stress comes from many different directions at once and cracks need to be stopped before they spread.

How Fiber Length and Binder Type Influence Mechanical Performance

• Fiber Length: Strands of 50mm optimize resin flow and mold conformity, while lengths exceeding 75mm increase interlaminar shear strength by 18% (Composite Materials Journal, 2022).
• Binder Concentration: Mats with 5% binder content withstand 23% higher flexural stress before delamination than those with 3% binder, enhancing structural integrity during handling and curing.

Mechanical Properties: Tensile, Flexural, and Impact Strength of Fiberglass Mat

Tensile Strength of Fiberglass Reinforcements in Chopped Strand Mat

CSM materials typically show tensile strength values between around 80MPa all the way up to about 300MPa. Some specially formulated composite versions can actually reach as high as 305MPa when tested in laboratory settings. What makes this material interesting is how the fibers are arranged randomly throughout the matrix. This arrangement helps spread out any applied forces across a larger area instead of concentrating them in one spot where failures tend to start. Studies have looked at what happens when we mix chopped strand mats with other types of reinforcement materials that have more specific directions. According to recent findings published by Naga Kumar and colleagues back in 2024, these combined systems boost tensile properties by approximately 18 percent compared to using just the CSM alone.

Flexural and Impact Resistance: Key Mechanical Properties of Fiberglass Mat

CSM laminates show impressive flexural strength above 70 MPa with impact resistance hitting around 96 J/m. What makes this possible? The tangled fibers within these materials work together to soak up and spread out energy forces throughout the structure. When it comes to choosing binders for these laminates, material scientists have found something interesting. Polyvinyl acetate actually boosts energy absorption capabilities by about 22 percent when compared against traditional styrene based options according to recent research published by Sumesh and colleagues back in 2024. This means products made with PVA binders tend to last longer under constant stress conditions where loads keep changing direction and intensity over time.

Comparative Analysis: CSM vs Woven Roving in Strength and Stiffness

• Strength: CSM provides isotropic strength, while woven roving offers directional superiority.
• Stiffness: Woven roving delivers 40–50% higher stiffness along primary load paths.
• Cost Efficiency: CSM reduces labor by 60% on complex contours due to easier handling.

While woven roving excels in uniaxial applications, CSM is preferred for multidirectional stress fields. Hybrid configurations achieve 92% of woven roving’s peak stiffness at 35% lower material cost (Biswas et al., 2024), offering a balanced solution for performance and economy.

Industry Paradox: High Strength-to-Weight Ratio Despite Random Fiber Layout

CSM might look messy at first glance but actually delivers a strength to weight ratio over 8:1 which beats structural steel hands down in areas where weight matters most such as boats and planes. The reason? No single direction weakness anymore. When we put it through stress tests, it lasts about 19% longer than those straight line fiber setups according to some research from Hanan and others back in 2024. Why does this happen? Because the fibers get all tangled up in three dimensions creating multiple pathways for force distribution and basically making sure nothing breaks apart suddenly.

Durability of Fiberglass Chopped Strand Mat in Harsh Environments

Water Resistance and Chemical Resistance of Fiberglass Mat

CSM works really well in damp and corrosive conditions because it doesn't absorb water and naturally resists chemicals. The glass fibers just push moisture away, and the polyester stuff holds up against all sorts of harsh chemicals including acids, bases, and solvents even when they get pretty strong (around pH 12 level). Because of this double defense system, CSM is commonly used for things like underground fuel tanks where water gets everywhere, parts inside chemical plants that see lots of aggressive substances, and boat parts that constantly battle with salty ocean air.

Corrosion Resistance in Marine and Industrial Applications

Unlike metals, CSM does not rust or suffer from galvanic corrosion, making it ideal for saltwater immersion in ship hulls, offshore platforms, and wastewater systems. Its resistance to oil refinery byproducts and industrial cleaning agents reduces maintenance costs by 30–50% compared to steel, enhancing lifecycle value in aggressive environments.

Thermal Stability Under Elevated Temperatures and Fire Exposure

CSM can hold its shape even when exposed to heat for extended periods, typically handling temperatures around 300 degrees Fahrenheit (about 149 Celsius). For brief moments during fires, it actually withstands much hotter conditions reaching as high as 600°F (316°C). Instead of just melting away like many materials would under similar circumstances, CSM tends to char gradually without losing too much strength. This property makes it really valuable for places where there's risk of fire damage such as inside car engines or around industrial equipment that needs proper insulation. According to UL 94 testing standards which measure how flammable substances behave, samples of CSM stop burning on their own within just ten seconds once they're no longer directly exposed to flames.

Resin Compatibility and Processing for Optimal Composite Performance

Resin compatibility with chopped strand mat

CSM works well with lots of different resins because of those inert glass fibers plus binders that dissolve in polyester. The numbers back this up too - when everything gets properly wetted out, we're talking about around 92% bonding strength compared to woven materials according to Composite Materials Journal from last year. What makes CSM special is that open structure letting resin really soak through deep into the material. But here's where things get interesting for manufacturers: the way it dissolves changes depending on whether they're using orthophthalic or isophthalic polyester resins. This difference affects processing times and can impact production efficiency in real world applications.

Best resins for use with chopped strand mat (polyester, epoxy)

Polyester resins dominate CSM applications (75% market share), but epoxy use is growing in high-performance sectors. Key options include:

• Orthophthalic polyester: Economical choice for marine tanks ($18–$22/gal)
• Vinyl ester: Offers 35% better chemical resistance than standard polyester
• Epoxy systems: Deliver 15% higher tensile strength but require precise wet-out techniques

Studies show epoxy-CSM combinations reduce void formation by 40% compared to polyester when processed below 60% relative humidity.

Ideal resin-to-mat ratio for optimal performance

Optimal mechanical performance occurs at a 60:40 resin-to-fiber ratio by weight. Deviations lead to measurable losses:

Ratio Range	Flexural Strength Variance
55:45	-12%
60:40	Baseline
65:35	-9%

Excess resin adds unnecessary weight, while insufficient resin causes dry spots that reduce interlaminar shear strength by up to 30%.

Wet-out efficiency and air entrapment challenges in lamination

The random fiber layout in CSM can impede resin flow, necessitating specific processing techniques:

• Vertical roller saturation increases wet-out speed by 25%
• Vacuum bagging limits void content to less than 1.5%
• Sequential layering prevents binder washout in thick laminates

Maintaining resin viscosity between 300–500 cPs is essential—higher viscosities trap 2.3± more air, as demonstrated in controlled lamination trials.

Key Industrial Applications Leveraging the Strength of Fiberglass Chopped Strand Mat

Marine Applications: Hull Reinforcement and Long-Term Durability in Saltwater

Marine engineers use CSM to reinforce hulls, leveraging its corrosion resistance and multidirectional strength. It withstands wave impacts and saltwater exposure, improves buoyancy through lightweight construction, and eliminates rust risks. Studies confirm CSM maintains structural integrity for over 15 years in marine environments (2023), supporting long-term vessel reliability.

Automotive and Aerospace Uses: Lightweight, High-Stiffness Composite Solutions

In transportation, CSM is used in door panels, bumper cores, and aircraft interior components. A 2024 materials analysis found CSM-based composites reduce part mass by 38% versus steel while matching tensile strength. This weight savings improves fuel efficiency in vehicles and increases payload capacity in aircraft, aligning with global sustainability goals.

Flexibility and Mold Adaptability in Complex Composite Manufacturing

The drapability of CSM means it can really wrap around those complicated molds without bunching up, so manufacturers get better results when making things like wind turbine blades and motorcycle body panels. Shops that switched to CSM noticed their layup process went about 27% quicker compared to traditional woven materials because there's no directional bias to worry about during placement. That kind of flexibility explains why so many shops reach for CSM when they need to prototype new designs or crank out large batches of oddly shaped components. For anyone dealing with complex shapes on a regular basis, this material just works better in practice than most alternatives.

Frequently Asked Questions

What is fiberglass chopped strand mat (CSM) composed of?

CSM is composed of E-glass fibers combined with polymeric binders, such as polyester or styrene, forming a nonwoven fabric structure.

How does random fiber orientation benefit the mechanical properties of CSM?

Random fiber orientation distributes loads evenly in all directions, enhancing multidirectional strength and preventing weak spots.

What are the main advantages of using CSM in marine applications?

CSM provides corrosion resistance, multidirectional strength, and long-term durability in saltwater environments, making it ideal for reinforcing hulls.

Why is CSM preferred in complex composite manufacturing?

CSM offers excellent drapability around complex molds, quick layup processes, and eliminates directional bias, making it suitable for prototyping and mass production.
