160gsm 4x4mm EIFS Fiberglass Mesh

Wall reinforcement
Exterior wall insulation
Exterior surfaces of buildings

160gsm Fiberglass Mesh is an advanced multi-layer exterior wall system that provides continuous insulation and waterproofing in one go,can prevent the entire insulation structure from being deformed due to external collision or extrusion momentum. The flexibility of EIFS fiberglass mesh allows it to conform to irregular surfaces, making it an ideal choice for curved or shaped structures. With good flexibility and high tensile strength, this durable and impact-resistant fiberglass mesh is embedded in the gypsum base to prevent cracking and provide reinforcement.

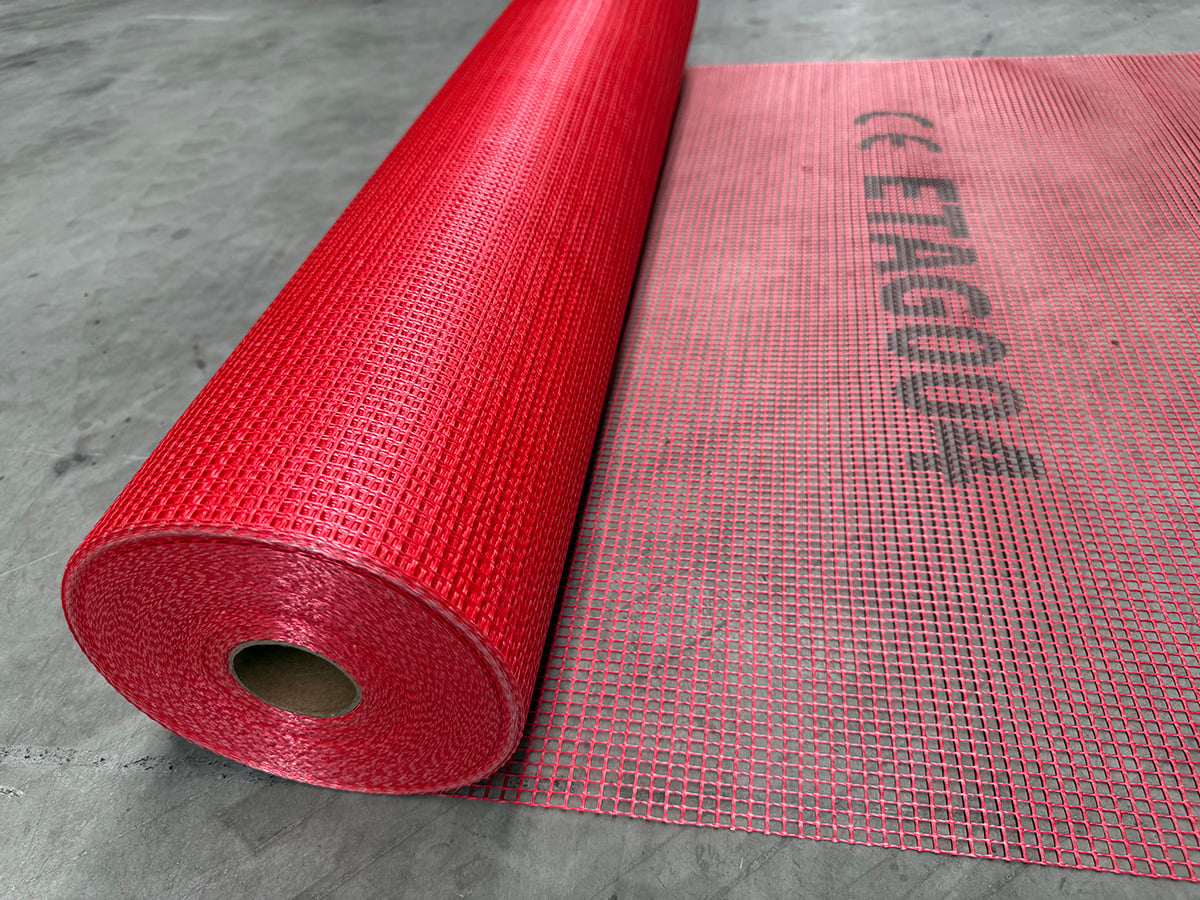

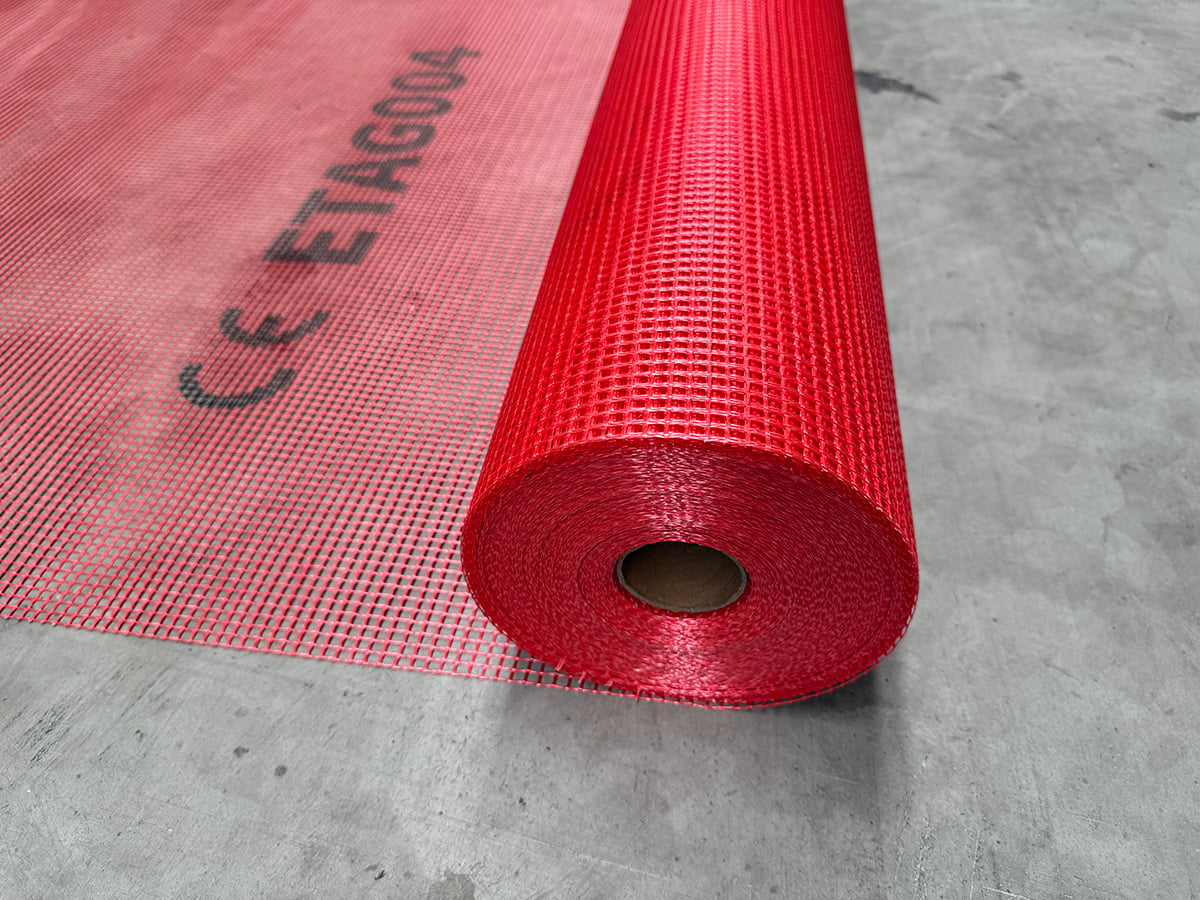

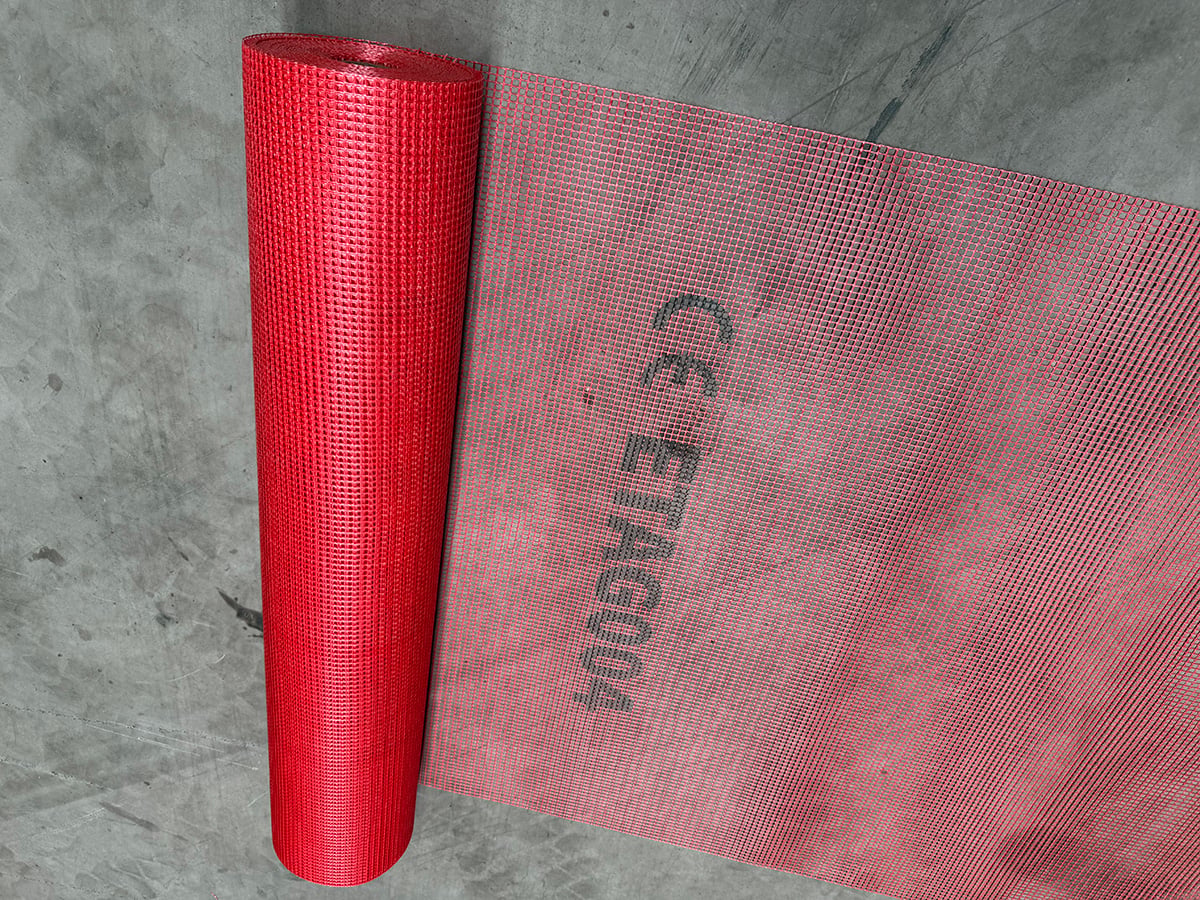

GLASS FIBER MESH.jpg FIBERGLASS MESH FOR INTERIOR WALL.jpg 4X4 FIBERGLASS MESH.jpg

Excellent strength and stability
Good adhesion, excellent coating performance

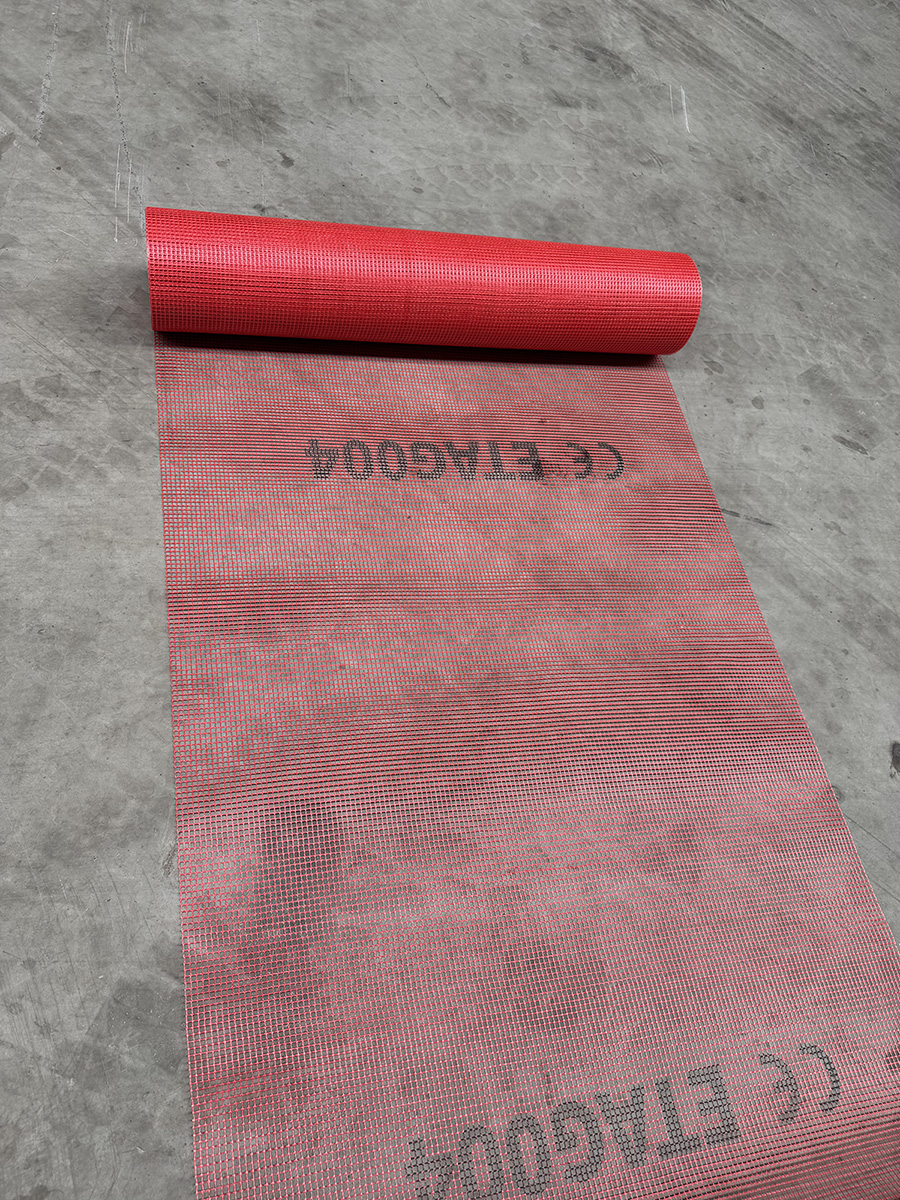

FIBERGLASS MESH SUPPLIER.jpg

Weight	45g/m²-300g/m²
Mesh size	2.5×2.5mm, 3×3mm, 4×4mm, 5×5mm, 7×9mm, 10×10mm
Color	White(standard), Blue, Yellow, Green, Red, Orange
Width	20cm-200cm
Length	50m (standard ) max 400 meter one roll
Fire retardant	customized
Print logo on fiberglass mesh	customized

Term Number	Yarn(Tex)		Mesh Size(mm)		Density Count/25mm		Finished Weight g/m²	Tensile Strength N/5cm×20cm
Term Number	warp	weft	warp	weft	warp	weft	Finished Weight g/m²	warp	weft
RD45 - 8×8	30×2	45	3	3	8	8	45	450	450
RD60 - 8×8	30×2	67	3	3	8	8	60	600	600
RD60 - 10×20	30×2	67	2.5	1.2	10	20	60	500	650
RD80 - 20×20	67×2	200	1.2	1.2	20	20	80	650	650
RD75 - 4×4	45×2	200	4	4	6	6	75	650	650
RD75 - 5×5	45×2	200	5	5	5	5	75	550	850
RD90 - 5×5	67×2	250	5	5	5	5	90	700	10500
RD110 - 10×10	250×2	400	10	10	2.5	2.5	110	1250	1250
RD125 - 5×5	134×2	250	5	5	5	5	125	1000	1300
RD125 - 10×10	250×2	550	10	10	2.5	2.5	125	1250	1450
RD145 - 5×5	134×2	350	5	5	5	5	145	1400	1500
RD160 - 5×5	134×2	400	5	5	5	5	160	1450	1600
RD160 - 4×4	134×2	300	4	4	6	6	160	1550	1650
RD165 - 4×5	134×2	350	4	4	6	6	165	1650	1650
RD200 - 4×5	200×2	600	4	5	6	5	200	1500	2200
RD280 - 4×5	200×2	600	4	5	6	5	280	1900	2850
RD300 - 4×5	200×2	700	4	5	6	5	300	2000	3000

Wall reinforcement
Exterior wall insulation
Exterior surfaces of buildings

Inner packing: plastic bag or shrink film
Out packing:
- carton: 4 rolls one carton
- big carton on pallet: 30 rolls/pallet
- woven bag: 2 rolls one bag
- Quantity:1×20’GPload 40000m²-70000m²
- 1×40’HQ: 110000m²-130000m²
- The package can be customized as per request .
