110gsm 10x10mm Fiberglass Mesh

110gsm 10x10mm Fiberglass Mesh It is woven from glass fiber yarns of various specifications and is an inorganic non-metallic material with excellent performance.preventing damage and protecting the exterior wall from moisture penetration and mold, thus maintaining the resiliency of the EIFS.

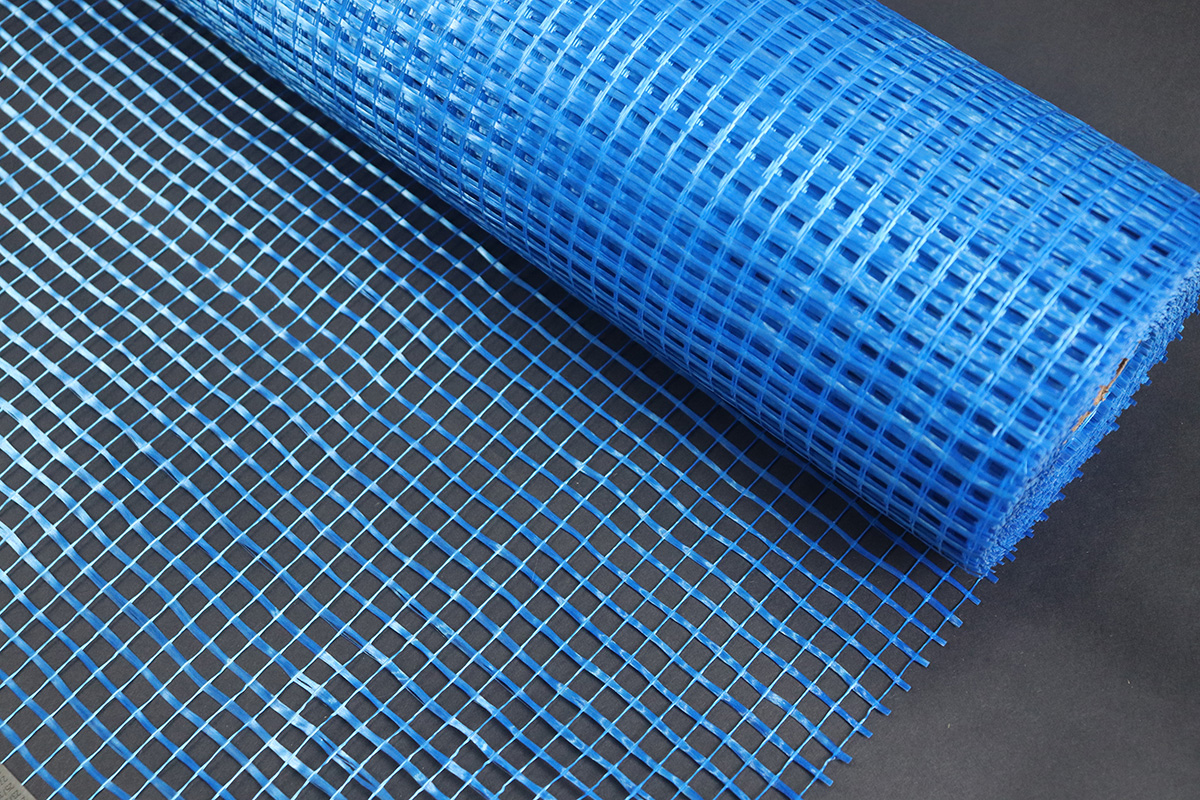

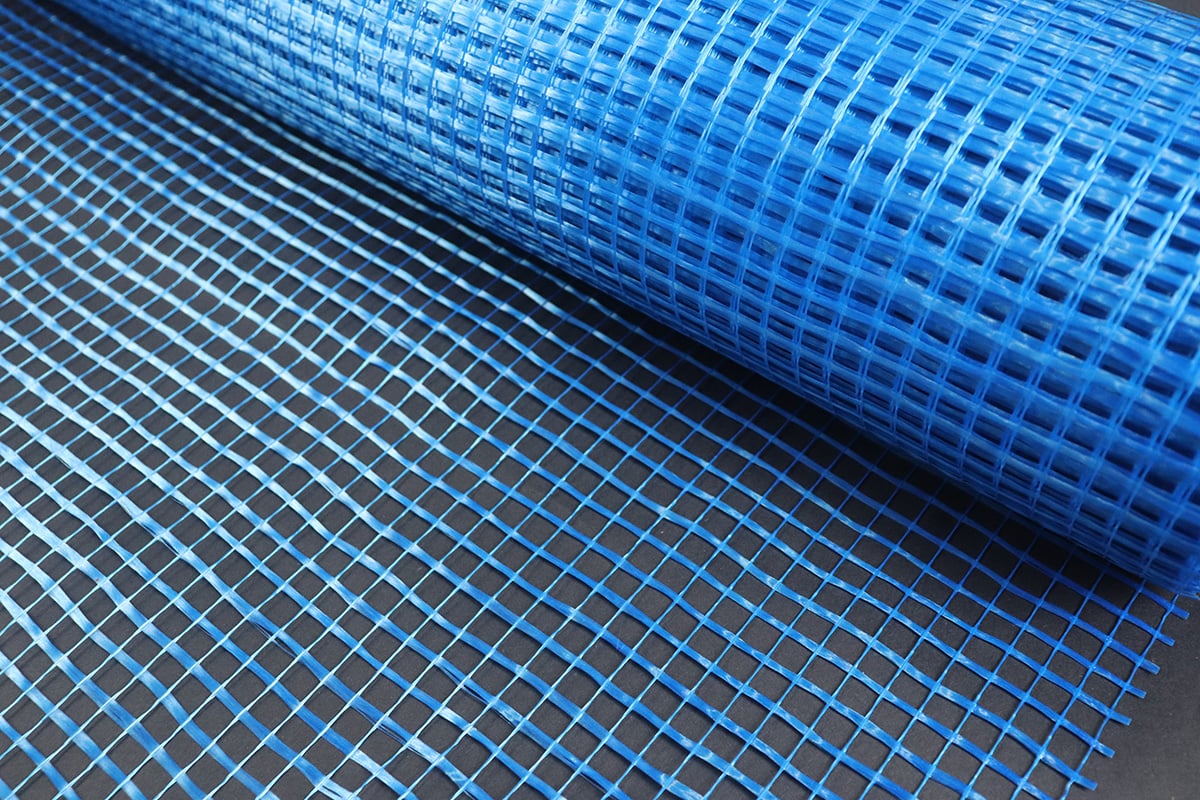

roofing fiberglass mesh tape.JPG fiberglass mesh 160 grams.JPG

Product Features

Smooth surface
Uniform color
Good breathability

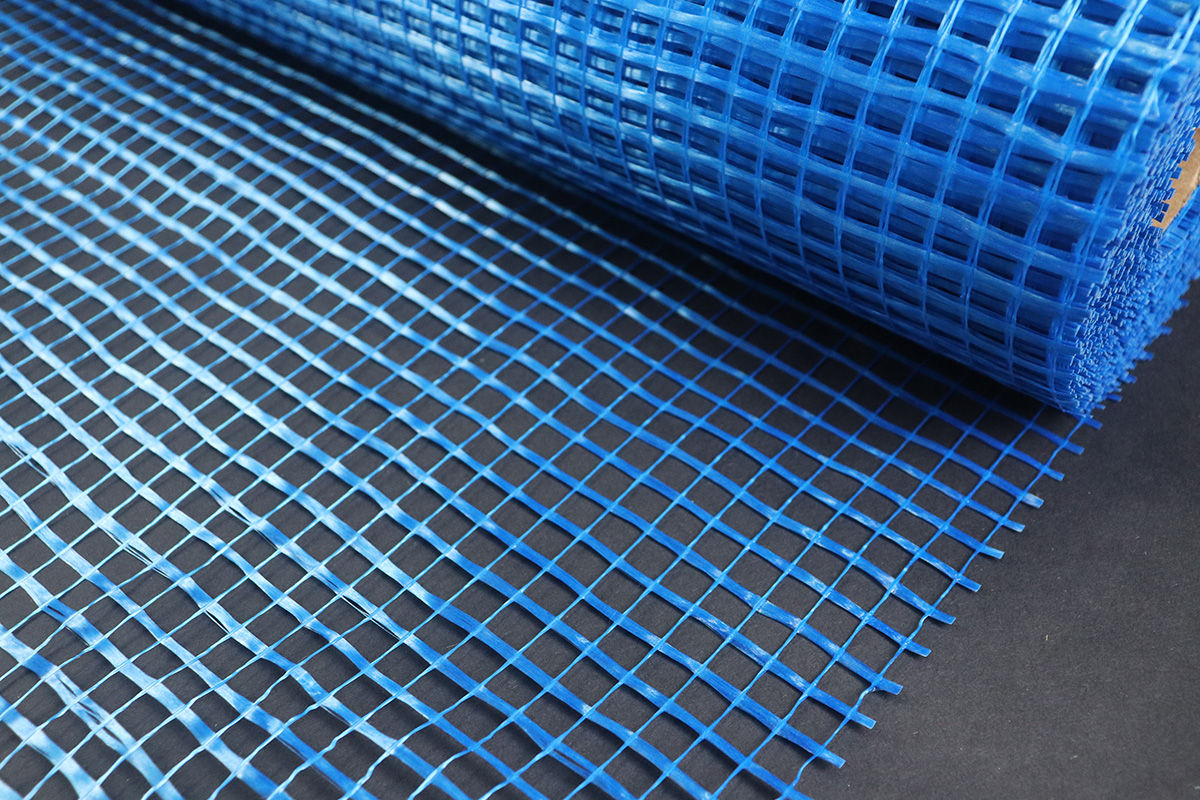

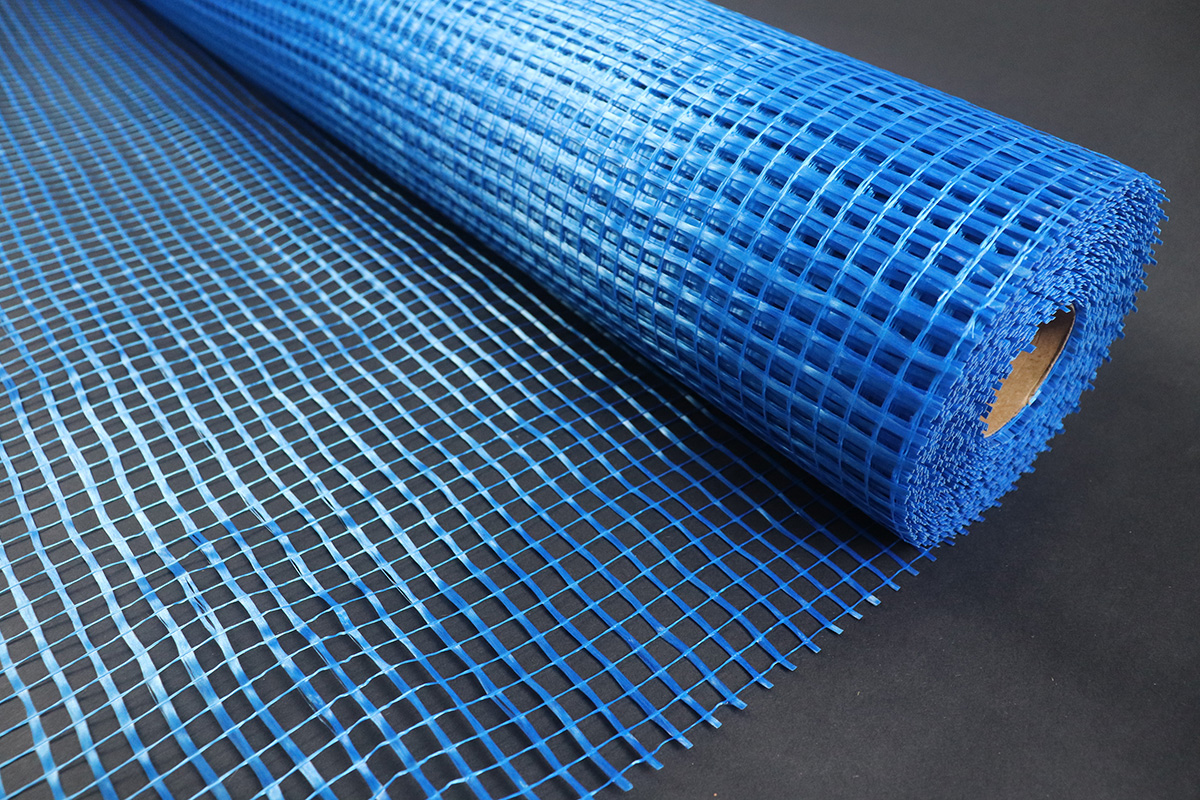

fiberglass mesh 145g m2.JPG 110gsm fiberglass mesh fabric.JPG

Product Specification

Weight	45g/m²-300g/m²
Mesh size	2.5×2.5mm, 3×3mm, 4×4mm, 5×5mm, 7×9mm, 10×10mm
Color	White(standard), Blue, Yellow, Green, Red, Orange
Width	20cm-200cm
Length	50m (standard ) max 400 meter one roll
Fire retardant	customized
Print logo on fiberglass mesh	customized

Term Number	Yarn(Tex)		Mesh Size(mm)		Density Count/25mm		Finished Weight g/m²	Tensile Strength N/5cm×20cm
Term Number	warp	weft	warp	weft	warp	weft	Finished Weight g/m²	warp	weft
RD45 - 8×8	30×2	45	3	3	8	8	45	450	450
RD60 - 8×8	30×2	67	3	3	8	8	60	600	600
RD60 - 10×20	30×2	67	2.5	1.2	10	20	60	500	650
RD80 - 20×20	67×2	200	1.2	1.2	20	20	80	650	650
RD75 - 4×4	45×2	200	4	4	6	6	75	650	650
RD75 - 5×5	45×2	200	5	5	5	5	75	550	850
RD90 - 5×5	67×2	250	5	5	5	5	90	700	10500
RD110 - 10×10	250×2	400	10	10	2.5	2.5	110	1250	1250
RD125 - 5×5	134×2	250	5	5	5	5	125	1000	1300
RD125 - 10×10	250×2	550	10	10	2.5	2.5	125	1250	1450
RD145 - 5×5	134×2	350	5	5	5	5	145	1400	1500
RD160 - 5×5	134×2	400	5	5	5	5	160	1450	1600
RD160 - 4×4	134×2	300	4	4	6	6	160	1550	1650
RD165 - 4×5	134×2	350	4	4	6	6	165	1650	1650
RD200 - 4×5	200×2	600	4	5	6	5	200	1500	2200
RD280 - 4×5	200×2	600	4	5	6	5	280	1900	2850
RD300 - 4×5	200×2	700	4	5	6	5	300	2000	3000

Product Application

Finishing works
Exterior wall insulation
Exterior surfaces of buildings

Package

Inner packing: plastic bag or shrink film
Out packing:
- carton: 4 rolls one carton
- big carton on pallet: 30 rolls/pallet
- woven bag: 2 rolls one bag
- Quantity:1×20’GPload 40000m²-70000m²
- 1×40’HQ: 110000m²-130000m²
- The package can be customized as per request .
