Welding& Fire blankets are made of fiberglass fabric or fiberglass fabric with all kinds of coating , The fabric has excellent properties due to its perfect structure and therefore offering high temperature resistance , thermal insulation and anti-oxidation.
Welding& Fire blankets are made of fiberglass fabric or fiberglass fabric with all kinds of coating , The fabric has excellent properties due to its perfect structure and therefore offering high temperature resistance , thermal insulation and anti-oxidation.

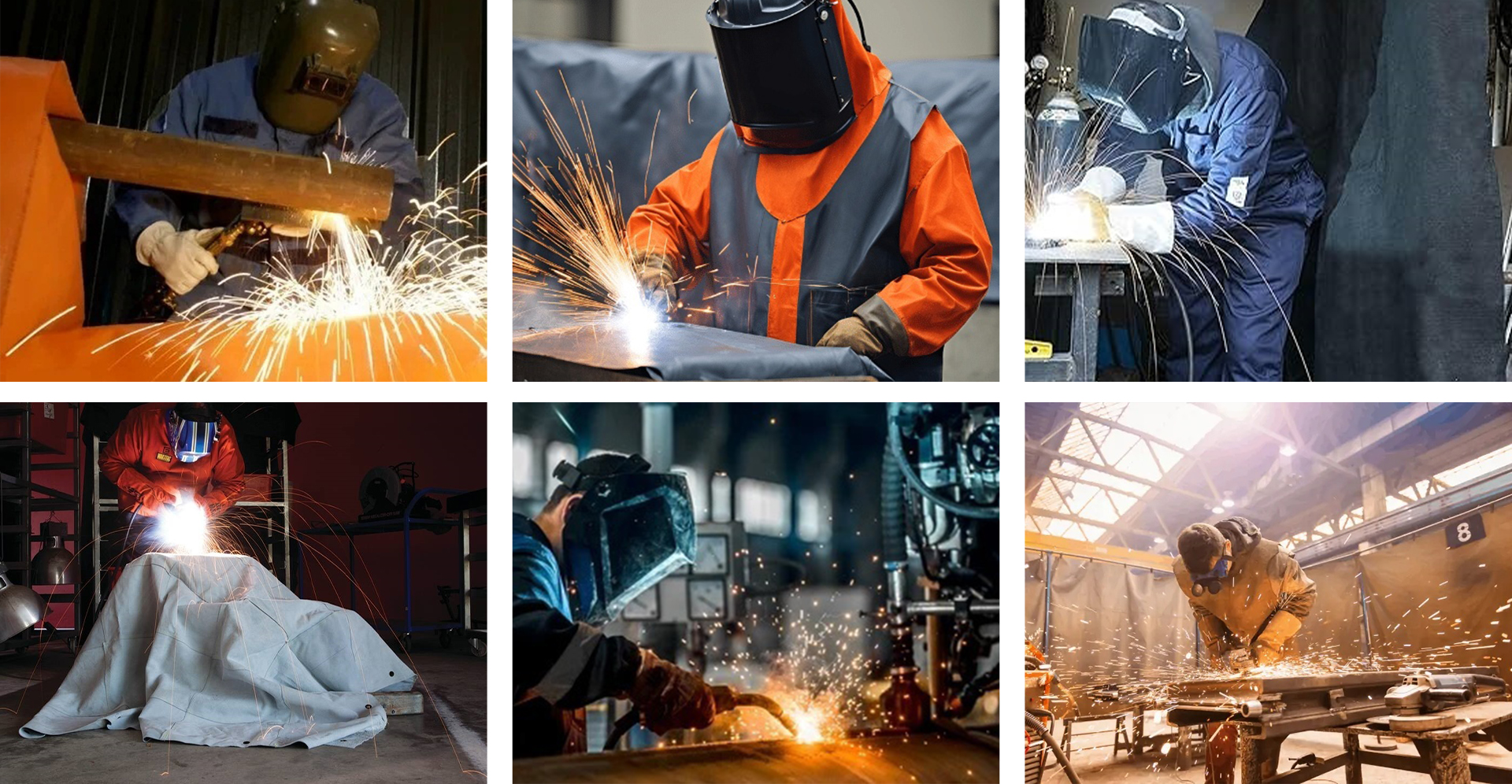

Welding blanket not only can provide protection from spatters, sparks, heat treating ,sand blasting and molten metals, but also insulate rays to establish a safety ,clean and normative environment workaround during welding ,cutting, sand blasting, heat treated,etc , It is a piece of safety equipment designed to protect people, equipment ,environment and other valuable items.
Various treatments and sizes could be fabricated on request . In addition, we can install with eyelets, clips or Velcro on the blankets in order to suit different place needs . The temperature resistance of welding blanket -240 ℃ to 1400℃.
RONDY Welding Blanket passed test standard NFPA701 by SGS
Ordinary Welding Blanket
Material : E-glass fiberglass or E-glass texturized fiberglass fabric
Service Temperature :550 ℃.
Characteristic
Good choice of protection for ordinary welding and cutting.
Provide isolating protection from sparks ,spatter and slag
Color : white , Tan
|
Type |
Code |
Weight |
Thickness |
Size |
|
|
|
G/m2 |
MM |
|
|
E-glass Fiberglass Fabric Welding |
RD3732WB |
430 |
0.45 |
1x1m, 1.8x1.8m, 2x2m, 1.8x3m, 1x25m, 1x50m |
|
RD3784WB |
810 |
1.0 |
||
|
RD3786WB |
1100 |
1.2 |
||
|
RD3788WB |
1700 |
1.7 |
||
|
E-glass Texturzied Fiberglass Fabric Welding Blanket |
RD2025WB |
610 |
0.8 |
|
|
RDM24WB |
820 |
1.0 |
||
|
RDM30WB |
1000 |
1.5 |
||
|
RDM52WB |
1750 |
3.0 |

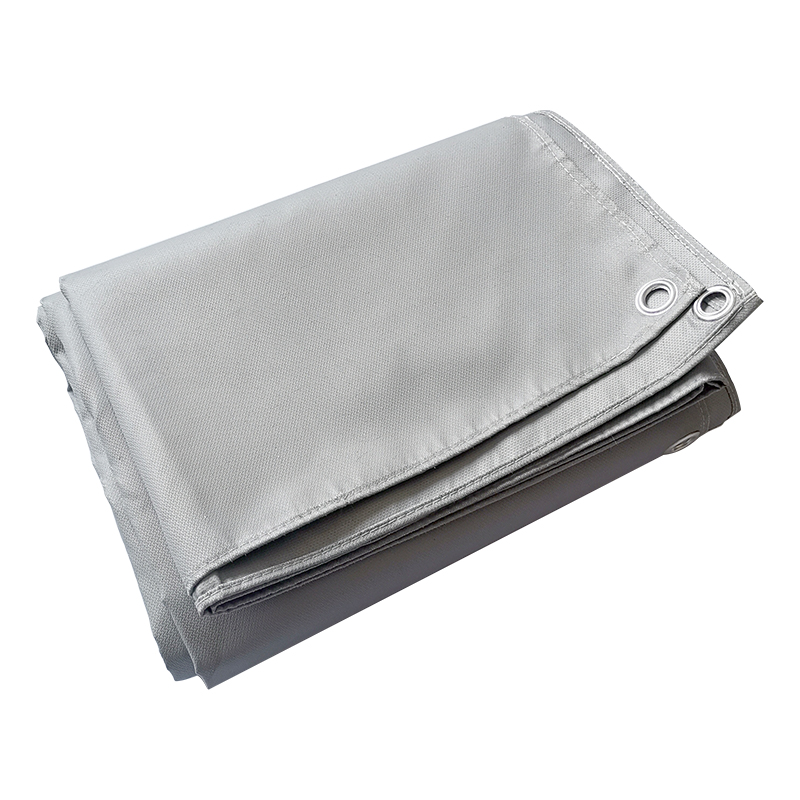

Material : Fiberglass fabric with polyurethane coating
Service Temperature : 550 ℃.
Characteristic
Viscidity resistant ,water resistant ,abrasion resistant ,easy for cutting , allergen resistant
Providing isolating protection from sparks and spatters, withstand dense sparks
Color : Grey
|
Type |
Code |
Weight |
Thickness |
Size |
|
|
|
G/m2 |
MM |
|
|
Polyurethane Coated Fiberglass Fabric welding Blanket |
RD3732PUO |
430 |
0.45 |
1x1m, 1.8x1.8m, 2x2m, 1.8x3m, 1x25m, |
|
RD3732PUT |
810 |
1.0 |
||
|
RD666PUO |
1100 |
1.2 |
||
|
RD666PUT |
1700 |
1.7 |

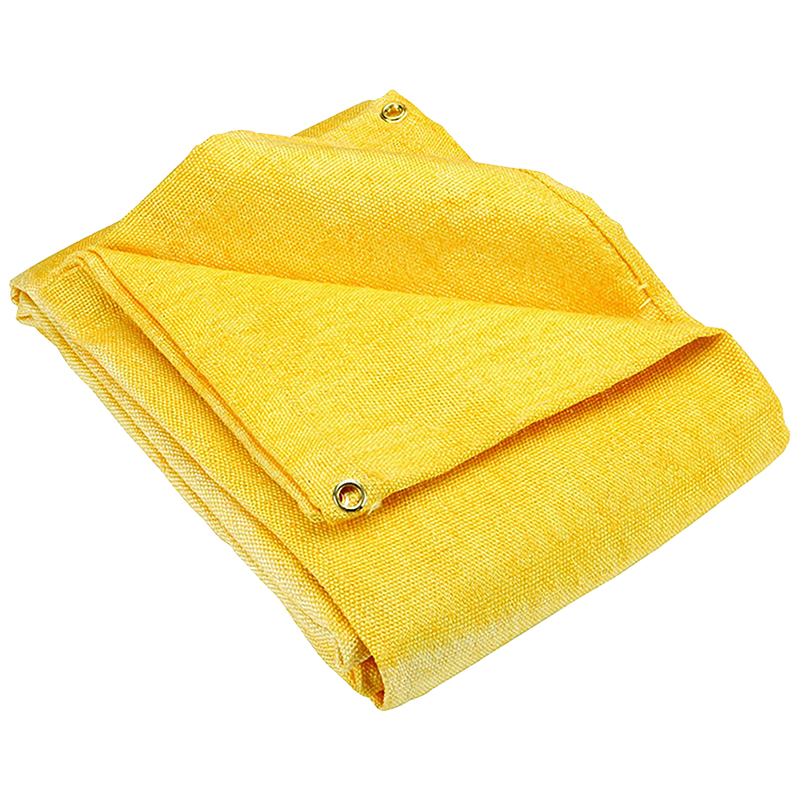

Material : Fiberglass fabric with acrylic coating
Service Temperature :550 ℃.
Characteristic
Easy for cutting and allergen resistant
Provide isolating protection from sparks and spatters
Color : white , red, black, yellow
|
Type |
Code |
Weight |
Thickness |
Size |
|
|
|
G/m2 |
MM |
|
|
Acrylic Coated Fiberglass welding blanket |
RD3732AC |
530 |
0.45 |
1x1m, 1.8x1.8m, 2x2m, 1.8x3m, 1x25m, |
|
RD2523AC |
500 |
0.50 |
||
|
RD2025AC |
800 |
0.80 |

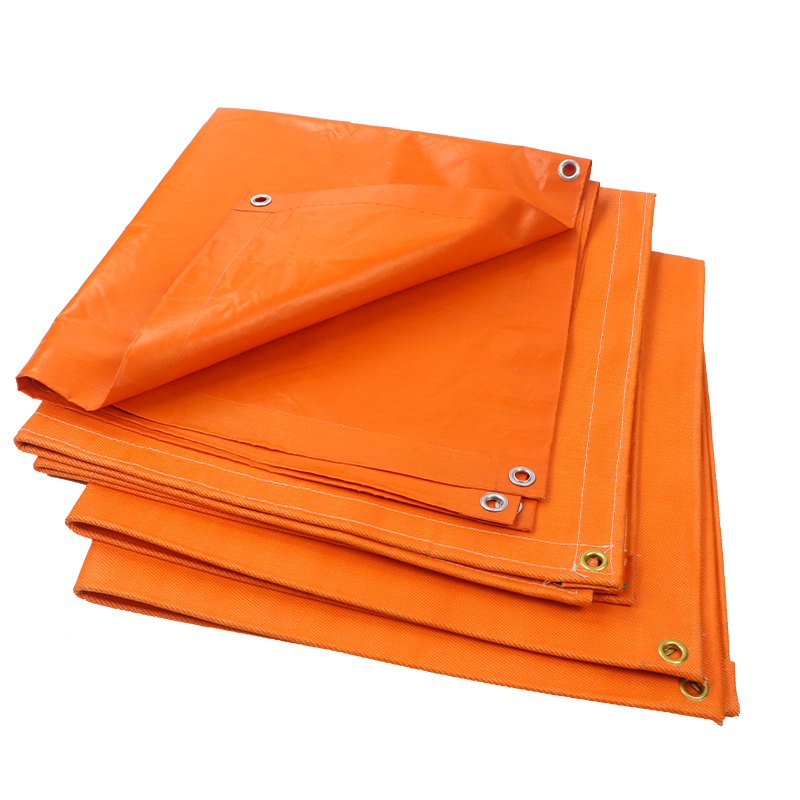

Material : Fiberglass fabric with Polyvinyl chloride coating
Service Temperature :550 ℃.
Characteristic
Easy for cutting and allergen resistant
Provide isolating protection from sparks and spatters
Color : orange ,blue,green
|
Type |
Code |
Weight |
Thickness |
Size |
|
|
|
G/m2 |
MM |
|
|
PVC Coated Fiberglass welding blanket |
RD200PC |
350 |
0.20 |
1x1m, 1.8x1.8m, 2x2m, 1.8x3m, 1x25m, |
|
RD310PC |
500 |
0.50 |
||
|
RD430PC |
720 |
0.80 |
||
|
RD666PC |
1000 |
1.0 |
||
|
RD3784PC |
1200 |
1.0 |

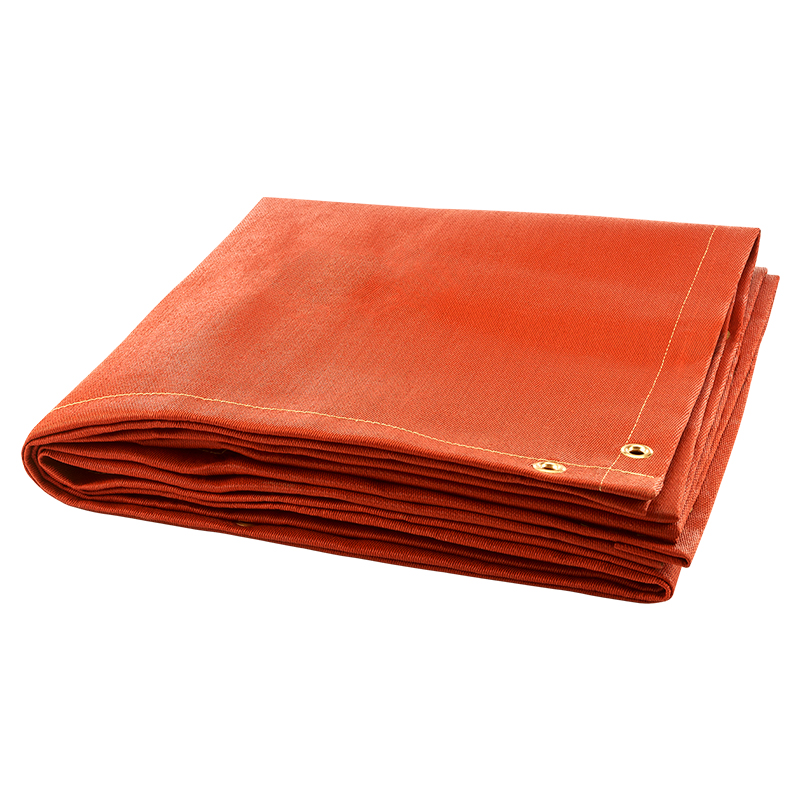

Material : Fiberglass fabric with silicone rubber coating
Service Temperature :550 ℃.
Characteristic
Thermal insulation,fireproof, ozone resistance,oxygen ageing,climate ageing,oil resistance
Easy for cutting and allergen resistant
Provide isolating protection from sparks and spatters
Color : red, grey
|
Type |
Code |
Weight |
Thickness |
Coating |
Size |
|
|
|
G/m2 |
MM |
|
|
|
Silicone Coated Fiberglass welding blanket |
RD3732SO |
480 |
0.45 |
One side |
1x1m, 1.8x1.8m, 2x2m, 1.8x3m, 1x25m 1x50m |
|
RD3732ST |
550 |
0.45 |
Two side |
||
|
RD666ST1 |
840 |
0.60 |
One side |
||
|
RD666ST2 |
910 |
0.60 |
Two side |
||
|
RD3784ST1 |
960 |
0.80 |
One side c |
||
|
RD3784ST2 |
1080 |
0.80 |
Two side |
Service Temperature :750 ℃.1100 ℃
Characteristic
Good protective value ,abrasion resistance
Provide abrasion ,high temperature resistance, anti-oxidation ,isolating protection from mid-intensity sparks ,spatter ,and slag
Medium protection value,It can withstand dense sparks and mid-grade slags.
Color : brown (Tan) , Black
|
Type |
Code |
Weight |
Thickness |
Temperature Resistance |
Size |
|
|
|
G/m2 |
MM |
℃ |
|
|
Vermiculate coated Texturized Fiberglass Fabric welding Blanket |
RD620VE |
480 |
0.45 |
750 |
1x1m, 1.8x1.8m, 2x2m, 1.8x3m, 1x25m 1x50m |
|
RD835VE |
530 |
0.50 |
750 |
||
|
Vermiculate Coated High silica welding blanket |
RD600HS-A |
660 |
0.70 |
1100 |
|
|
RD1200HS-A |
1250 |
1.35 |
1100 |

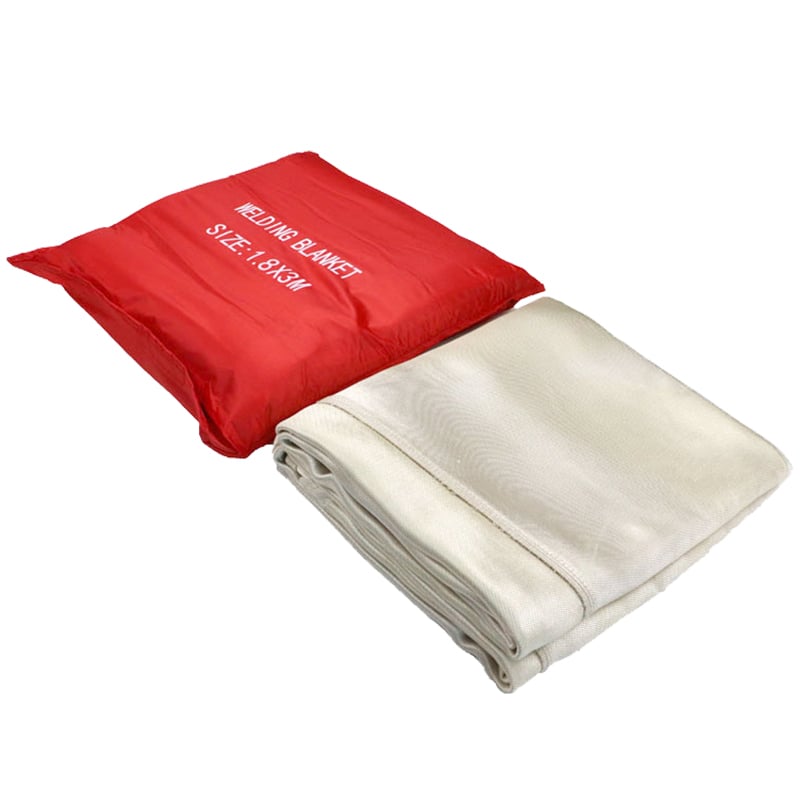

Material : High silica fiberglass fabric
Service Temperature :900℃.1100 ℃
Characteristic
Suitable for heavy duty welding and cutting work
Provide excellent heat preservation and thermal insulation ,welding&cutting, molten metal splash protection, heat and flame
Color : brown (tan) , white
According to the actual demand can be coated vermiculite ,silicone coating
|
Code |
Weave |
Coating |
SiO2 |
Weight |
Thickness |
Size |
|
|
|
|
|
|
% |
|
|
|
|
High Silica Welding Blanket |
RD600HS |
8H Satin |
/ |
96 |
612 |
0.65 |
1x1m, 1.8x3m, 2x2.5m, 92cmx50m 100x50m |
|
RD880HS |
8H Satin |
/ |
96 |
880 |
1.0 |
||
|
RD1200HS |
12H Satin |
/ |
96 |
1200 |
1.3 |
||
|
Vermiculate Coated High silica Welding Blanket |
RD600HS-A |
8H Satin |
Vermiculate |
96 |
660 |
0.7 |
|
|
RD1200HS-A |
12H Satin |
Vermiculate |
96 |
1250 |
1.35 |
||
|
Silicone Coated High Silica Welding Blanket |
RD600HS-S |
8H Satin |
Silicone |
96 |
810 |
0.7 |
|
|
RD1200HS-S |
12H Satin |
Silicone |
96 |
1400 |
1.35 |
