PVC 260 0.3mm coated fiberglass cloth

PVC coated fiberglass cloth is professionally used for flexible connection of fan outlet, fire retardant cloth, welding blanket to protect sparks from splashing during welding, fire retardant cloth used in public places, shipyard.

PVC coated fiberglass cloth is woven from glass fiber base cloth coated with polyvinyl chloride (PVC) material on the surface. It is the ideal and optimal fabric to be used as anti-corrosion areas, expansion joints, fire-resistant curtains, non-metallic compensators, and welding blankets.

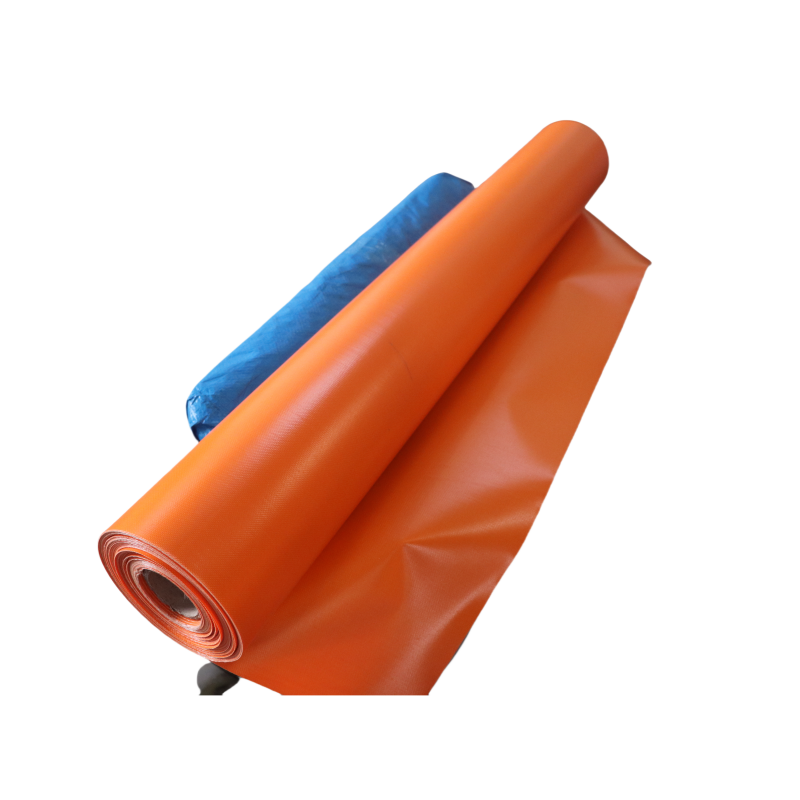

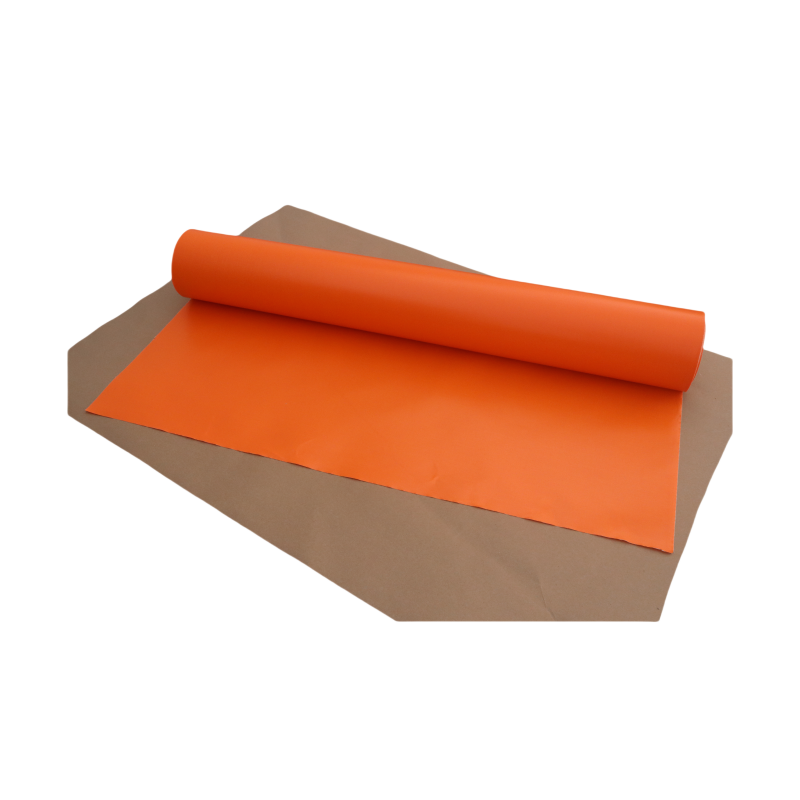

pvc coated fiberglass welding blanket (2).png 0.5mm pvc coated welding blanket.png

High temperature resistance
Flame resistant
Excellent thermal insulation and easy washing
Good properties of flexibility and durability
Water and oil proof ,Abrasion resistance
Excellent chemical resistance

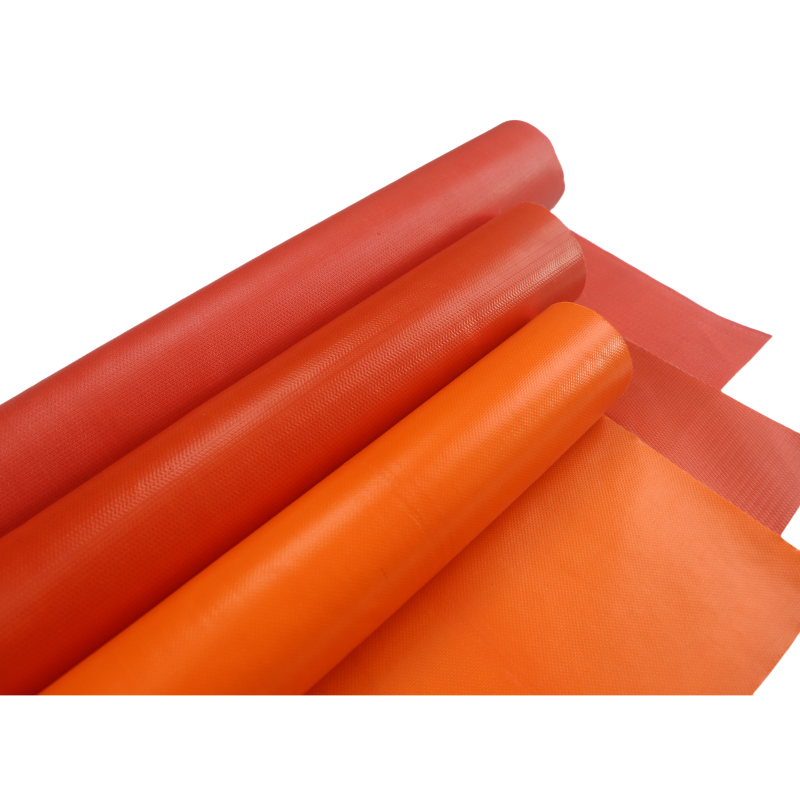

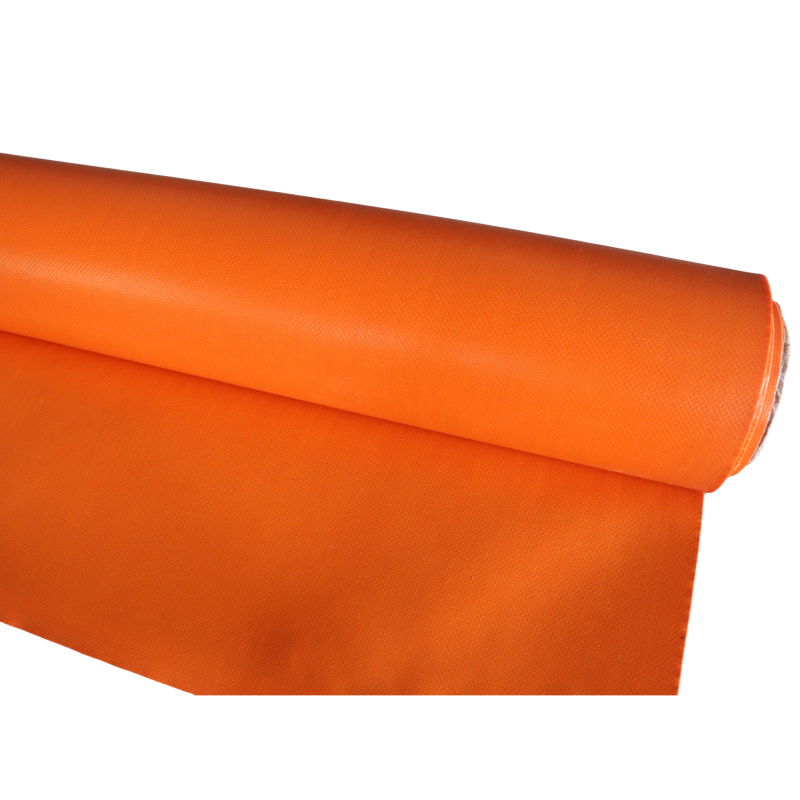

0.4mm pvc coated welding blanket.png pvc coated fiberglass welding blanket.png

Characteristic	Unit	Data							Method
Base Fabric		E glass Fabric
Weave		PLAIN
Yam	TEX	WARP			WEFT
		EC9 33 3×1			EC9 33 3×1
Weight	g/㎡	260							ASTM-D3776-2009
Thickness	Mm	0.3							ASTM-D1777-1996
Thread Count	per cm	WARP	16		WEFT		10		ASTM-D3775-2008
Coating		PVC Double Side
Color		Orange
Coating Weight	g/㎡	100							ASTM-D3776-2009
Total Weight	g/㎡	360							ASTM-D3776-2009
Total Thickness	mm	0.36							ASTM-D1777-1996
Tensile Strength	N/2.5cm	WARP		1100		WEFT		660	ASTM-D5034-2001
Service Temperature	℃	550
